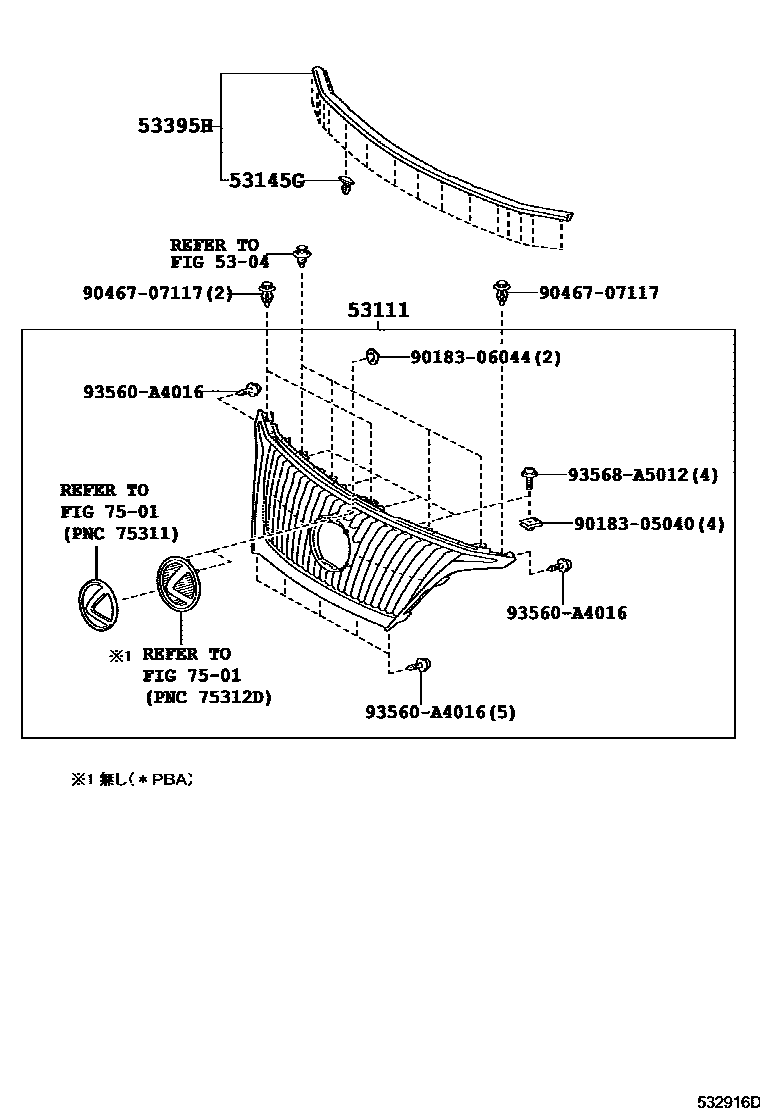

RADIATOR GRILLE

0001 1 0002 1 0003 1 0004 1F SPORT

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53111GRILLE, RADIATOR

main53101-48231iAGL10,GGL1#200907-201203

main53101-48240supersedes 53101-48230iGGL1#200812-200906

main53101-48241supersedes 53101-48230iGGL1#200907-201203

main53101-48280supersedes 53101-48270iGYL1#200903-200906

main53101-48281supersedes 53101-48271iGYL1#200907-201203

main53101-48380iAGL10,GGL1#,GYL10,15201408-201509

main53101-48390iAGL10,GGL10,15201008-201108

main53101-48491iGGL15,GYL15201308-201509

main53101-48581supersedes 53101-48401iAGL10,GGL1#,GYL1#201308-201509

main53101-48903iGGL15,GYL15201203-201308

main53101-48906supersedes 53101-48900iAGL10,GGL1#,GYL1#; GGL1#,GYL1#201203-201308

53145GCLIP, RADIATOR GRILLE

main53145-60030×16iAGL10,GGL1#,GYL1#200812-201203

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-48040iAGL10,GGL1#,GYL1#200812-201203

main53395-48060iAGL10,GGL1#,GYL1#201203-201509

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9018305040

main90183-05040

9018306044

main90183-06044

9046707117

main90467-07117

93560A4016

main93560-A4016

93568A5012

main93568-A5012

10 parts on this diagram · 4 diagrams in section
