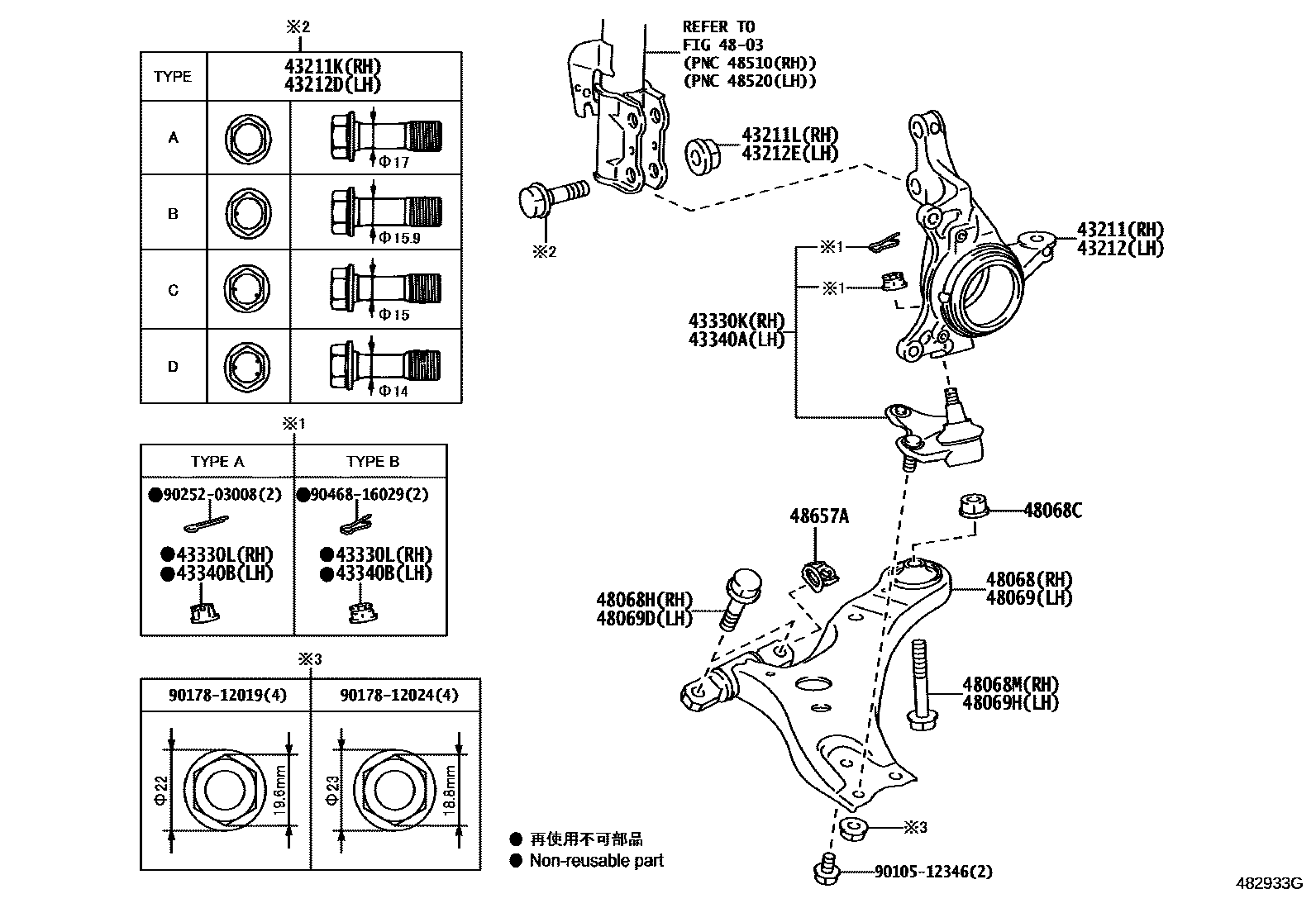

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-48010iAGL10,GGL1#,GYL1#200812-201509

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17012iAGL10,GGL1#,GYL1#200812-201509

main90105-17013iAGL10,GGL1#,GYL1#200812-201509

main90105-17014iAGL10,GGL1#,GYL1#200812-201509

main90105-17015iAGL10,GGL1#,GYL1#200812-201509

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002iAGL10,GGL1#,GYL1#200812-201509

43212KNUCKLE, STEERING, LH

main43212-48010iAGL10,GGL1#,GYL1#200812-201203

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17012iAGL10,GGL1#,GYL1#200812-201203

main90105-17012iAGL10,GGL1#,GYL1#201203-201509

main90105-17013iAGL10,GGL1#,GYL1#200812-201509

main90105-17014iAGL10,GGL1#,GYL1#200812-201509

main90105-17015iAGL10,GGL1#,GYL1#200812-201509

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002iAGL10,GGL1#,GYL1#200812-201509

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-49165iAGL10,GGL1#,GYL1#200812-201203

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iAGL10,GGL1#,GYL1#200812-201203

main90171-14011iAGL10,GGL1#,GYL1#200812-201203

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-49035iAGL10,GGL1#,GYL1#200812-201203

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iAGL10,GGL1#,GYL1#200812-201203

main90171-14011iAGL10,GGL1#,GYL1#200812-201203

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-48040iGGL10,15,GYL15200812-200908

sub48068-48041

main48068-48041iAGL10,GGL10,15,GYL10,15200909-201505

sub48068-48070

main48068-48050iGGL16,GYL16200812-200908

sub48068-48051

main48068-48051iGGL16,GYL16200909-201505

sub48068-48052

main48068-48052iGYL16201506

main48068-48070iAGL10,GGL1#,GYL10,15201506

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90179-14068iAGL10,GGL1#,GYL1#200812-201203

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-16082iAGL10,GGL1#,GYL1#200812-201203

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14126iGGL1#200812-200904

main90119-14140iAGL10,GGL1#,GYL1#200904-201107

sub90119-14146

main90119-14146iAGL10,GGL1#,GYL1#201108-201203

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-48040iGGL10,15,GYL15200812-200908

sub48069-48041

main48069-48041iAGL10,GGL10,15,GYL10,15200909-201506

sub48069-48070

main48069-48050iGGL16,GYL16200812-200908

sub48069-48051

main48069-48051iGYL16200909-201505

sub48069-48052

main48069-48052iGYL16201506

main48069-48070iAGL10,GGL1#,GYL10,15201506

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-16082iAGL10,GGL1#,GYL1#200812-201203

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14126iGGL1#200812-200904

main90119-14140iAGL10,GGL1#,GYL1#200904-201107

sub90119-14146

main90119-14146iAGL10,GGL1#,GYL1#201108-201203

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-28010iAGL10,GGL1#,GYL1#200812-201203

9010512346

main90105-12346

9017812019

main90178-12019

9017812024

main90178-12024

9025203008

main90252-03008

9046816029

main90468-16029

24 parts on this diagram · 1 diagram in section
