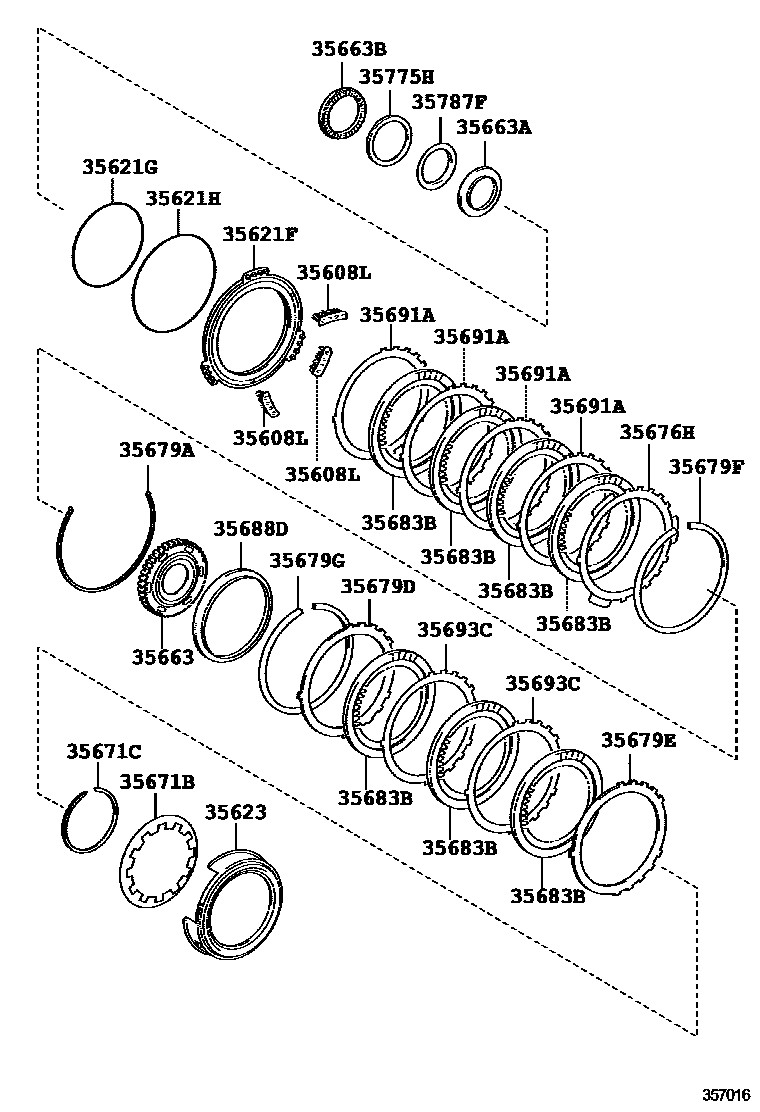

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35608LSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35621FPISTON, BRAKE, NO.1
35621GRING, O (FOR BRAKE PISTON INNER)
35621HRING, O (FOR BRAKE PISTON OUTER)
35623PISTON, BRAKE, NO.3
35663ABEARING, THRUST NEEDLE ROLLER, NO.1
35663BBEARING, THRUST NEEDLE ROLLER, NO.2
35671CRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
35676HFLANGE, BRAKE, NO.1
35679ARING, HOLE SNAP(FOR BRAKE FLANGE)
35679DFRANGE, BRAKE, NO.2
35679EFRANGE, BRAKE, NO.3
35679GRING, SNAP (FOR RAKE FLANGE NO.3)
35775HRACE, THRUST BEARING, NO.5
35787FRACE, THRUST BEARING, NO.2
22 parts on this diagram · 2 diagrams in section
