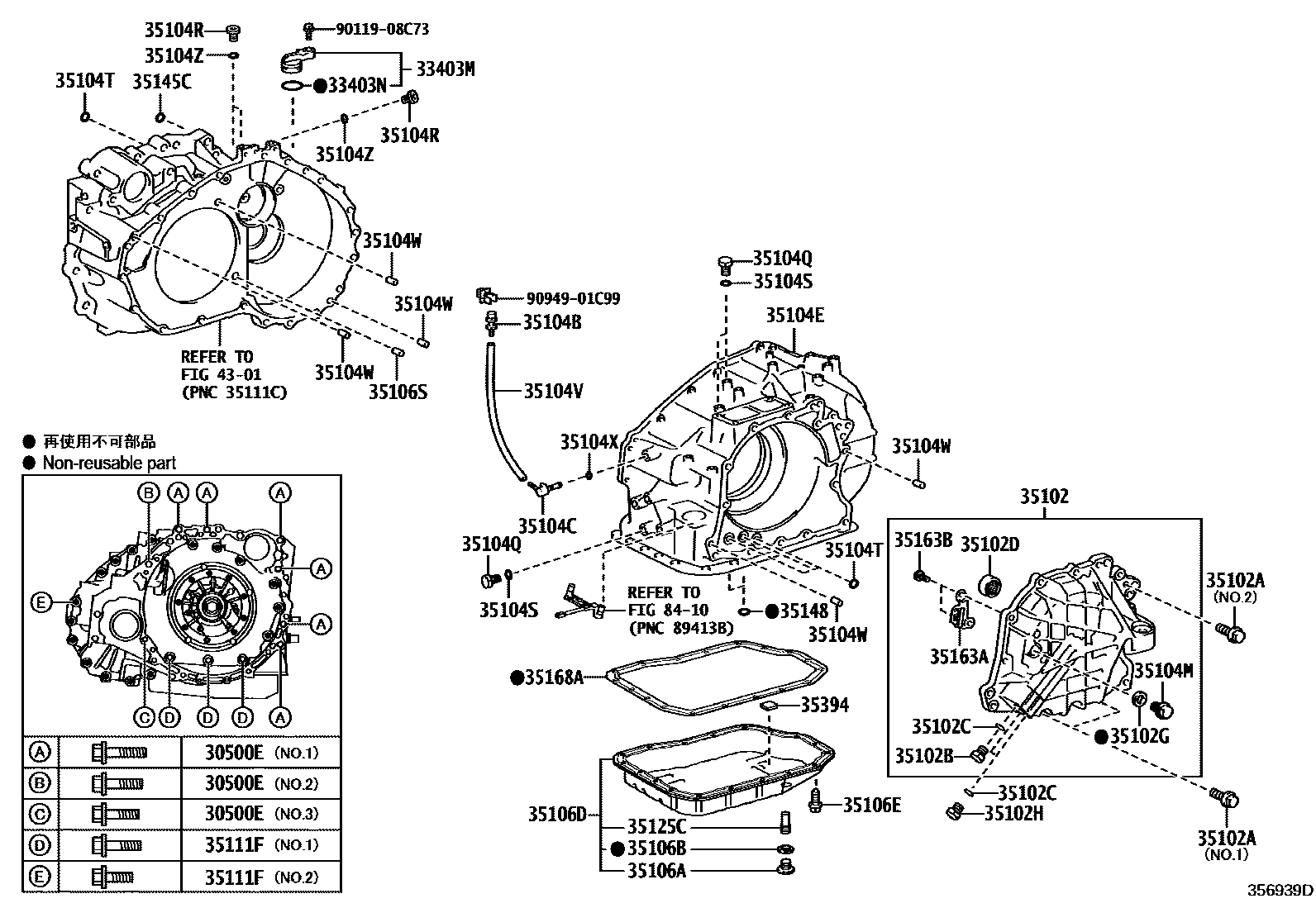

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U660E,U660F 0002 1U760E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10425iGGL1#200812-201203

main90119-12168×3iAGL10201008-201203

main90119-12250iGGL1#201203

main91512-61050×2iAGL10201203

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-35230iGGL1#200812-201203

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24030iGGL1#201203

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-33060iGGL1#200812-201203

main35102-33061iGGL1#201309

main35102-33090iAGL10201008-201203

main35102-33091iAGL10201308

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08431×2iAGL10,GGL1#201203

main91551-00828×12iAGL10,GGL1#201203

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001iAGL10,GGL1#200812-201203

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×3iAGL10,GGL1#200812-201203

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-18010iAGL10,GGL1#200812-201203

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008iAGL10,GGL1#200812-201203

35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)

main90341-08001×2iAGL10,GGL1#200812-201203

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149iAGL10,GGL1#200812-201203

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03187iAGL10,GGL1#201203

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35141-33071iGGL1#200812-201203

main35141-33072iGGL1#201203-201402

main35141-33073iGGL1#201402

main35141-33140iAGL10201008-201203

main35141-33141iAGL10201404

35104MPLUG, REFILL(ATM)

main90341-18064iAGL10,GGL1#201203-201509

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×3iAGL10,GGL1#200812-201203

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×3iAGL10,GGL1#200812-201203

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×3iAGL10,GGL1#200812-201203

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-10018×4iAGL10,GGL1#201108-201203

main90301-10189×4iAGL10,GGL1#200812-201108

35104VHOSE (FOR BREATHER PLUG)

main35121-33050iAGL10201203-201404

main35121-33051iAGL10201404

main35121-73010iGGL1#201203-201312

main35121-73011iGGL1#201312

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×5iAGL10,GGL1#200812-201203

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iAGL10,GGL1#200812-201105

main90301-06021iAGL10,GGL1#201105-201203

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×3iAGL10,GGL1#200812-201203

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12034iAGL10,GGL1#201203

35106BGASKET, DRAIN PLUG (ATM)

main90430-12008iAGL10,GGL1#201203

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-33061iGGL1#201203-201310

main35106-33070iAGL10201008-201203

main35106-48010iGGL1#201310-201502

main35106-48011iGGL1#201503

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iGGL1#200812-201203

35106SPIN, RING (FOR TRANSAXLE CASE)

main90253-11007iAGL10,GGL1#200812-201203

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08432×3iAGL10,GGL1#201203

main91551-10845×17iAGL10,GGL1#201203

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-33130iGGL1#200812-201203

main35125-73010iAGL10201008-201203

35145CGASKET, TRANSAXLE CASE

main35145-33010iAGL10,GGL1#200812-201203

35148GASKET, GOVERNOR APPLY, NO.1

main35145-33010×2iAGL10,GGL1#200812-201203

35163APLATE, TRANSAXLE REAR COVER

main35163-33010iAGL10,GGL1#200812-201203

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90148-60055×2iAGL10,GGL1#200812-201203

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-33080iGGL1#200812-201203

main35168-73010iAGL10201008-201203

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iAGL10,GGL1#200812-201203

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9011908C73

main90119-08C73

9094901C99

main90949-01C99

39 parts on this diagram · 2 diagrams in section
