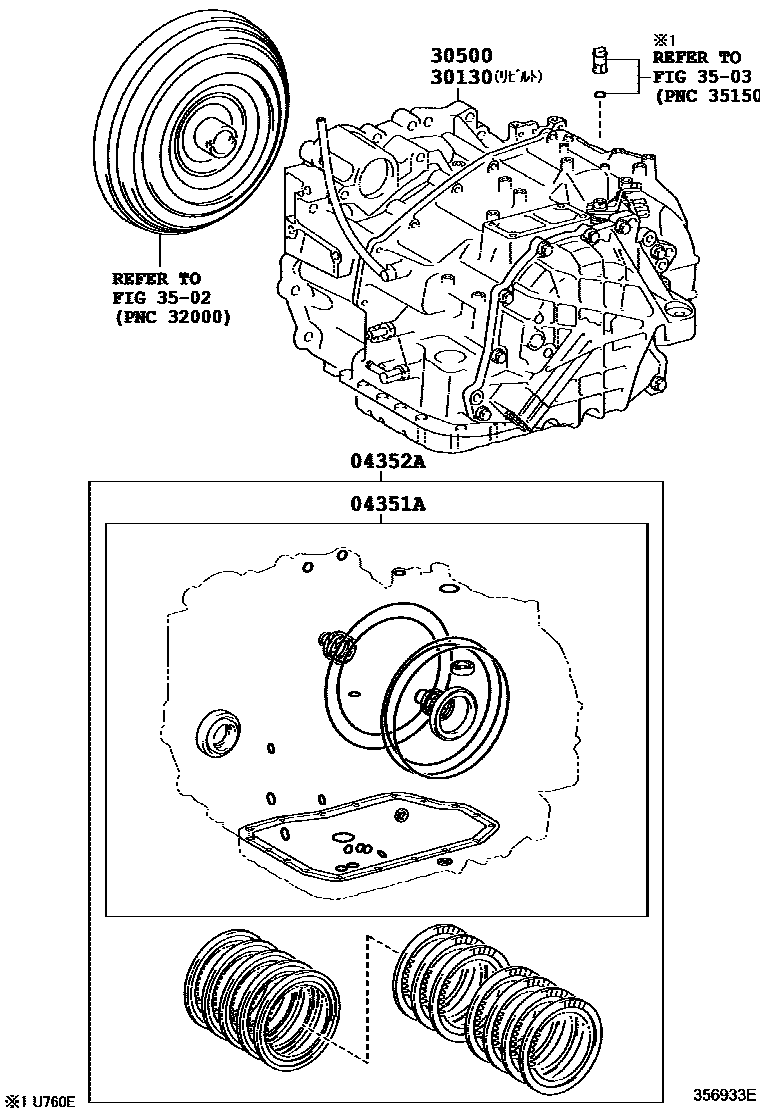

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-28180iGGL15,16200812-201108

main04351-28181iGGL15201203-201509

main04351-33400iGGL10200812-201108

main04351-33401iGGL10201108-201203

main04351-33402iGGL10201212-201509

main04351-33530iAGL10201008-201106

main04351-33531iAGL10201203-201212

main04351-33532iAGL10201212-201509

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-33390iGGL10201106-201108

main04352-58120iGGL15,16201106-201108

30130TRANSAXLE ASSY, REBUILT

main30130-48290iGGL10200812-201203

main30130-48291iGGL10201203-201306

main30130-48292iGGL10201306-201509

main30130-48300iGGL15,16200812-201203

main30130-48301iGGL15201203-201306

main30130-48302iGGL15201306-201509

main30130-48330iAGL10201203-201306

main30130-48331iAGL10201306-201509

30500TRANSAXLE ASSY, AUTOMATIC

main30500-48290iGGL10200812-201108

main30500-48291iGGL10201203-201306

main30500-48292iGGL10201306-201509

main30500-48300iGGL15,16200812-201108

main30500-48301iGGL15,16201108-201203

main30500-48302iGGL15201306-201509

main30500-48330iAGL10201008-201203

main30500-48331iAGL10201306-201509

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

6 parts on this diagram · 1 diagram in section
