33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-30341-C2i200812-201008

BLACK,TRIM1#,2#

main33504-30351-E6supersedes 33504-30341-E4i201008-201203

DK. BROWN & MD. BROWN,TRIM0#

main33504-30352-24i201203

main33504-30352-C8i201203

main33504-30352-E3i201203

main33504-30341-E4i201308

main33504-30351-20i200910-201002

main33504-30351-21i201002-201203

main33504-30351-C8i200910-201203

main33504-30351-E5i200812-201002

main33504-53100-C0i201203

33550DBULB, POSITION INDICATOR LAMP

main90981-11040×2i200812-201203

33550ECAP, POSITION INDICATOR LAMP

main35956-48010×2i200812-201203

33560CLEVER ASSY, SHIFT, LOWER

main33560-48370i201203

33563BUTTON, SHIFT LOCK RELEASE

main33563-48120-C0i200812-201203

BLACK,TRIM1#,2#

main33563-48120-E0i200812-201203

DK. BROWN,TRIM0#

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main33866-12040i200812-201203

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-48110i200812-201203

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-48110-C0i201203

BLACK,TRIM1#,2#,3#,4#

main35907-48110-E0i200812-201203

DK. BROWN,TRIM0#

35953GUIDE, POSITION INDICATOR LIGHT

main35953-48100i200812-201203

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-48040i200812-201203

35974HOUSING, POSITION INDICATOR, LOWER

main35974-48110i200812-201203

main35974-48130i200812-201203

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-48070i200812-201203

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-48050i200812-201203

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017908241

main90179-08241

9046710203

main90467-10203

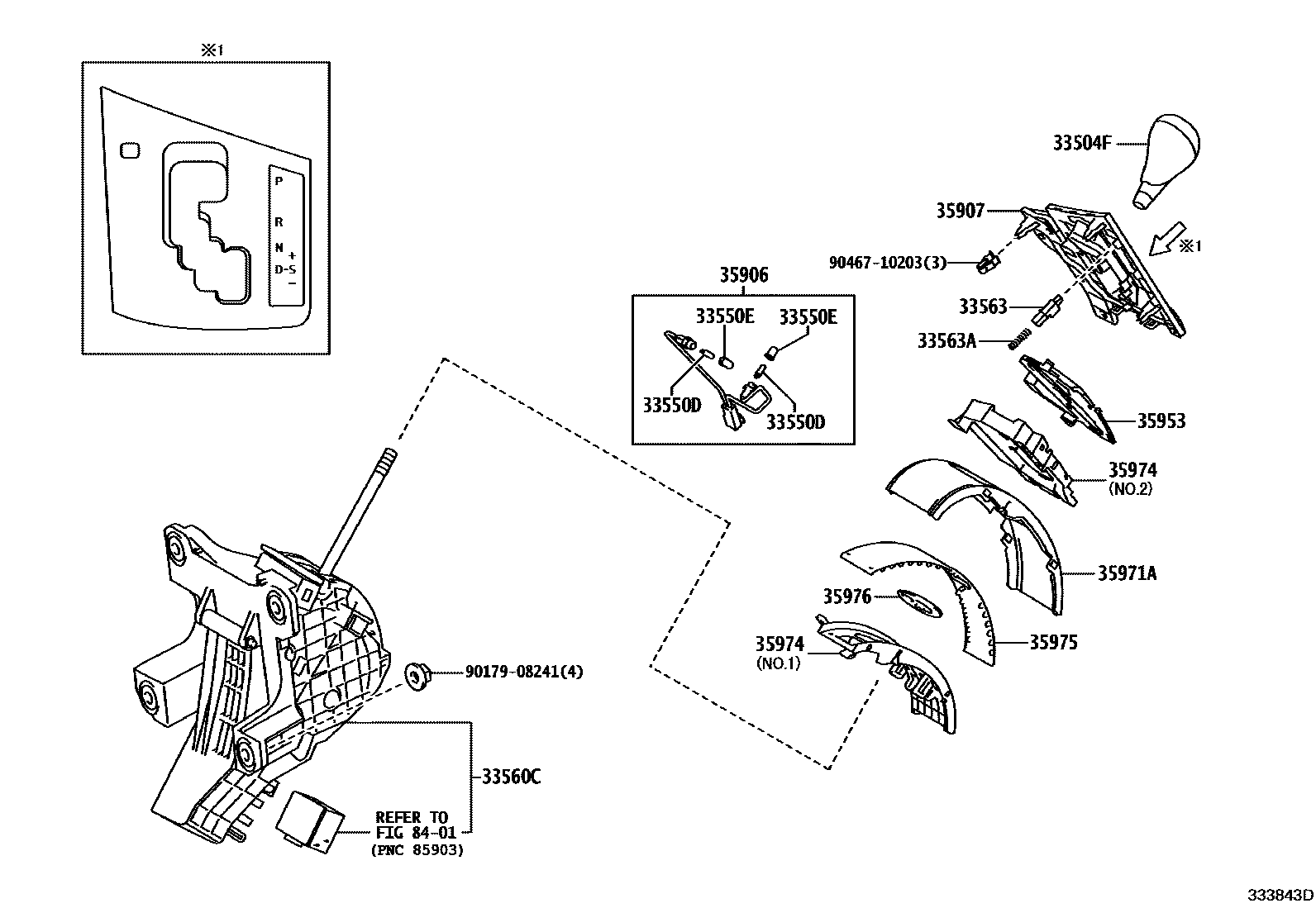

SHIFT LEVER & RETAINER
