ENGINE OIL COOLER

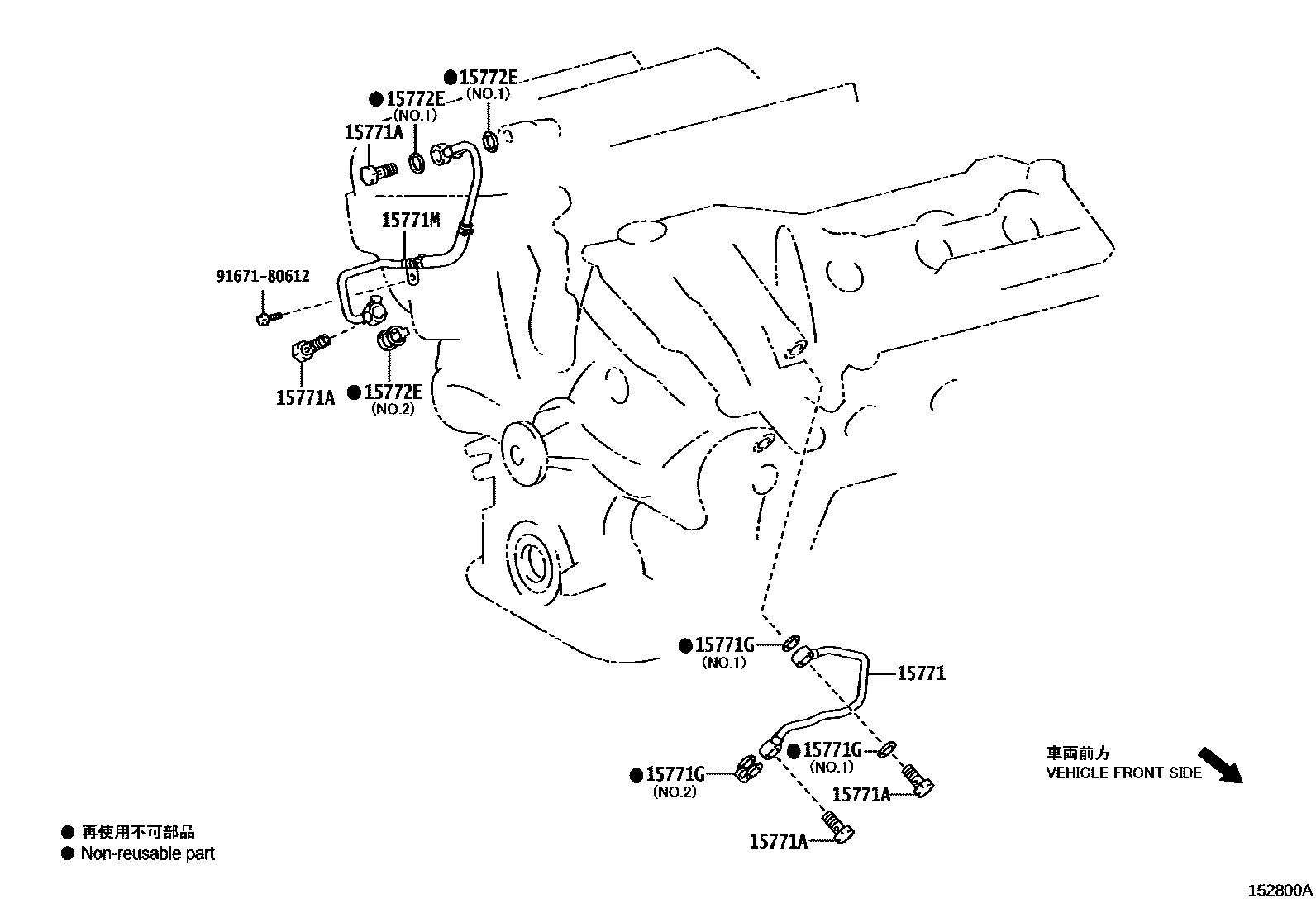

Parts diagram

15771PIPE, OIL, NO.1

main15771-31010i200812-201203

15771AUNION(FOR OIL PIPE)

main90401-16043×4i200812-201203

15771GGASKET

main90430-16016i201203

main90430-16017×2i201203

15771MPIPE, OIL

main15772-31030i200812-201203

15772EGASKET(FOR OIL PIPE)

main90430-16016i200812-201203

main90430-16017×2i200812-201203

9167180612

main91671-80612

6 parts on this diagram · 1 diagram in section
