ENGINE OVERHAUL GASKET KIT

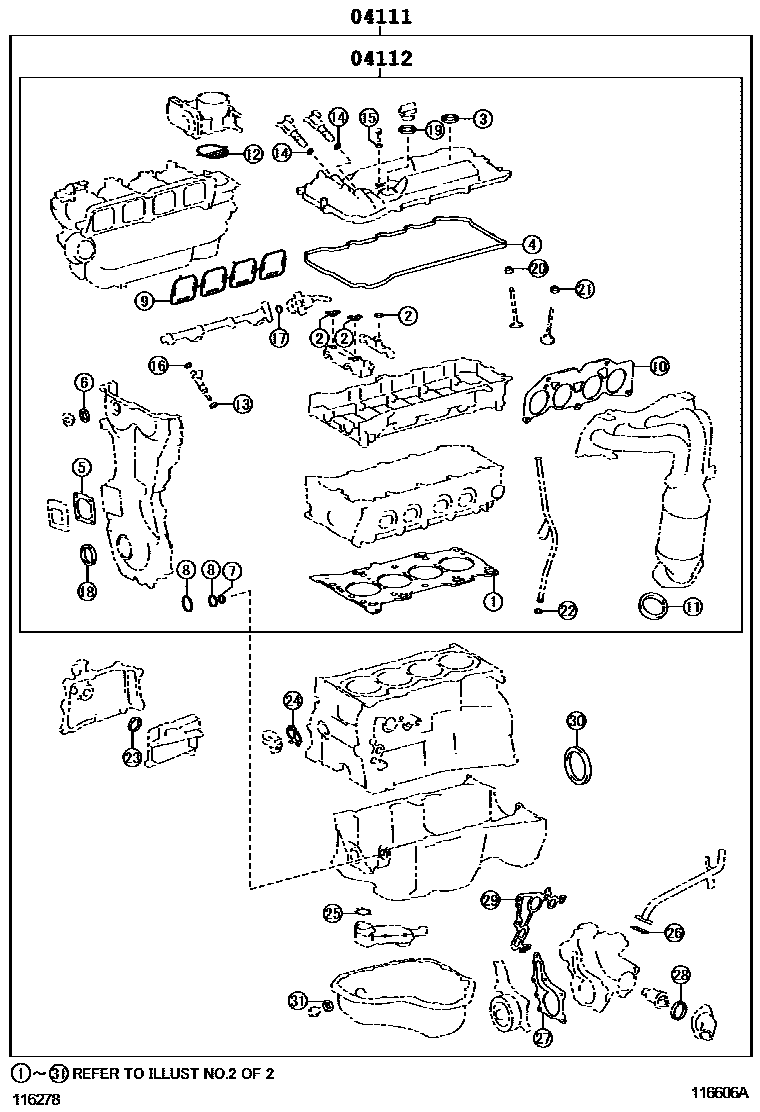

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-31445i201503

main04111-31860i200812-201108

main04111-31861i201108-201111

main04111-31862i201111-201203

main04111-31881i201505

main04111-31890i200903-200906

main04111-31891i200906-201203

main04111-31892i201503-201504

main04111-36040i201008-201111

main04111-36041i201111-201201

main04111-36042i201203-201309

main04111-36043i201309-201312

main04111-36044i201312-201406

main04111-36045i201406-201408

main04111-36046i201408

04112GASKET KIT, ENGINE VALVE GRIND

main04112-31274i201503

main04112-31540i200812-201108

main04112-31541i201108-201111

main04112-31542i201203-201503

main04112-31551i201505

main04112-31560i200903-200906

main04112-31561i200906-201108

main04112-31562i201108-201203

main04112-36040i201008-201201

main04112-36041i201201-201203

main04112-36042i201312-201406

main04112-36043i201406-201408

main04112-36044i201408

2 parts on this diagram · 6 diagrams in section
