Toyota LEXUS RX270/350/450H521 — SHORT BLOCK ASSEMBLY

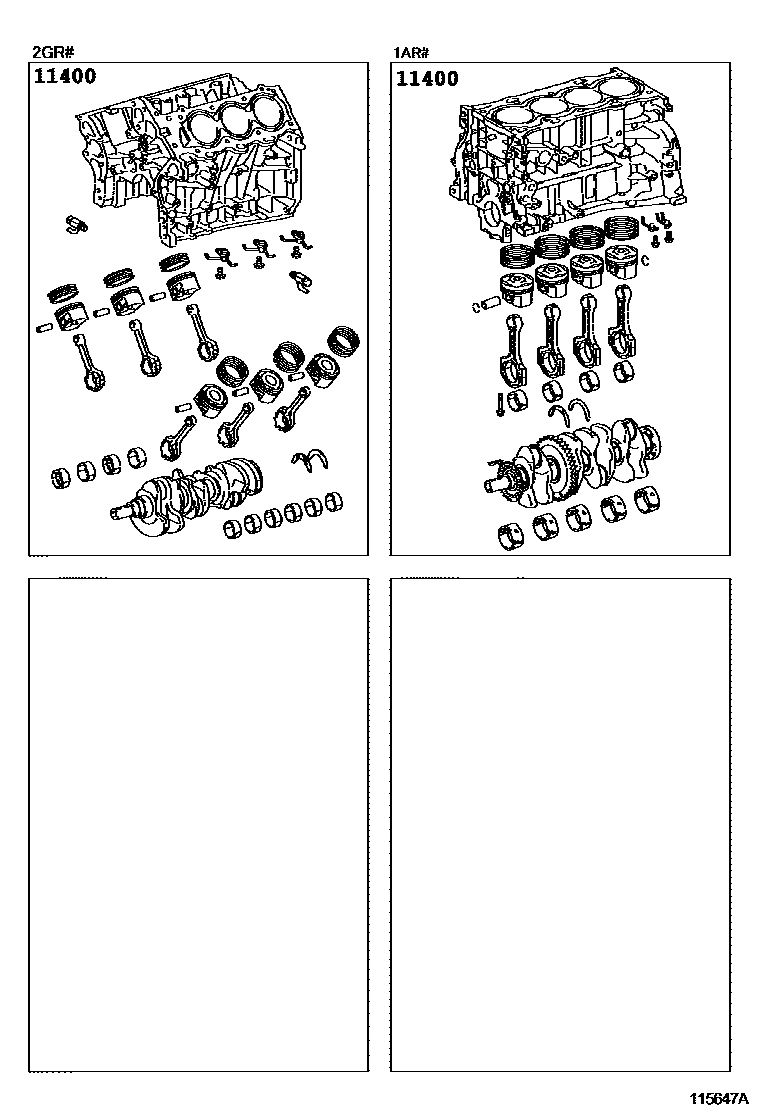

Parts diagram
11400BLOCK ASSY, SHORT
11400-36050
11400-39105
11400-39115
11400-31161
11400-31163
11400-31270
11400-31360

1 parts on this diagram · 1 diagram in section

SHORT BLOCK ASSEMBLY for Toyota LEXUS RX270/350/450H521

This section contains 1 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota LEXUS RX270/350/450H521. Key components include: BLOCK ASSY, SHORT.
