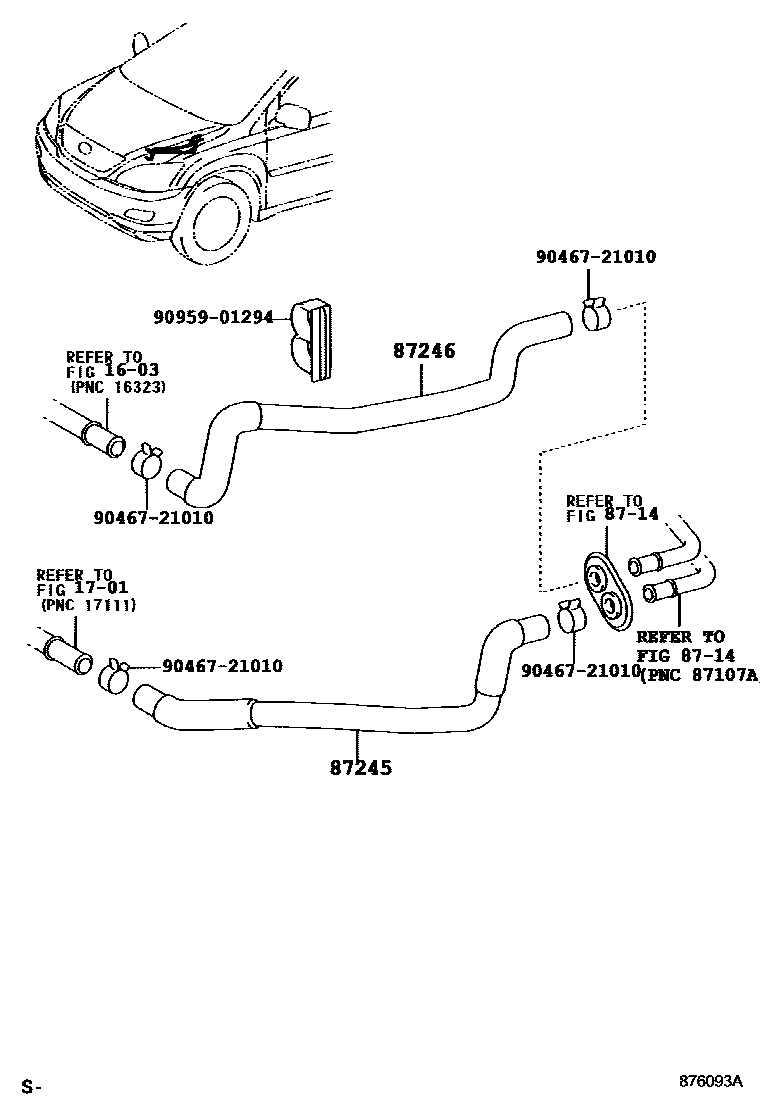

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-48180iACU3#200302-200305

main87245-48181iACU3#200305-200601

main87245-48220iMCU3#200302-200305

main87245-48221iMCU3#200305-200601

main87245-48A60iGSU3#200601-200812

87246HOSE, HEATER WATER, OUTLET

main87245-48190iACU3#200302-200305

main87245-48191iACU3#200305-200601

main87245-48230iMCU3#200302-200305

main87245-48231iMCU3#200305-200601

main87245-48A70iGSU3#200601-200812

9046721010

main90467-21010

9095901294

main90959-01294

7 parts on this diagram · 3 diagrams in section
