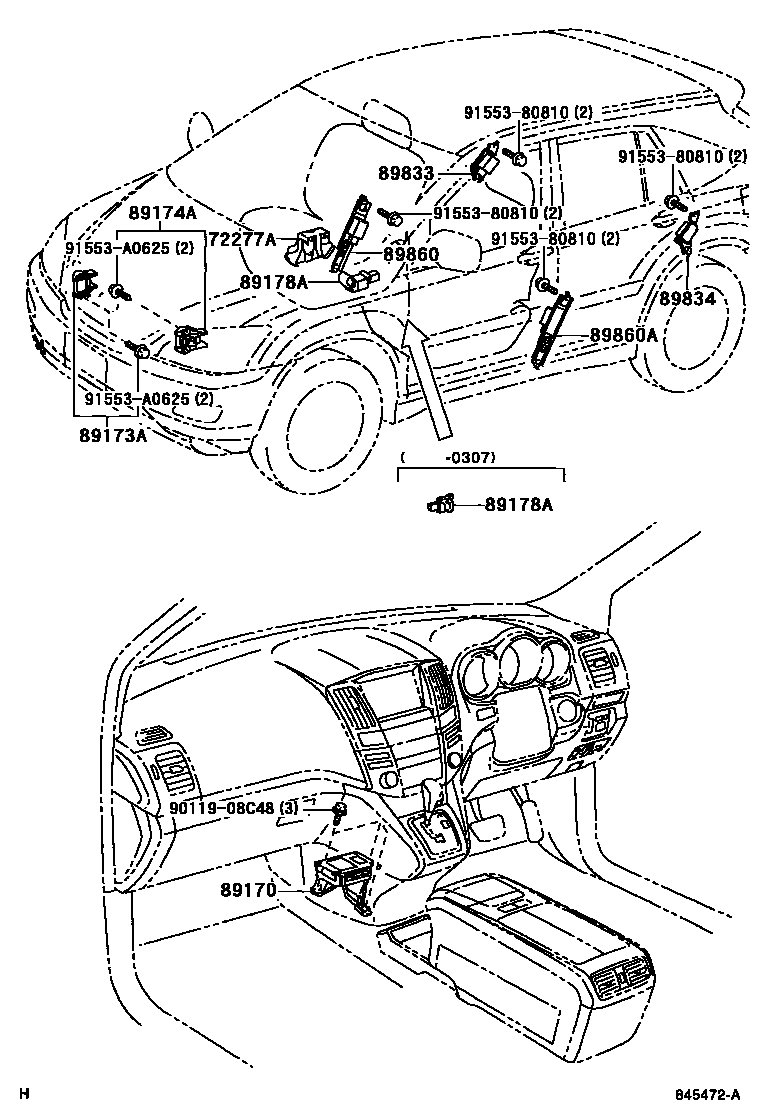

AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33010iACU3#,MCU30,35200307-200601

main72277-33020iACU3#; MCU30,35; MCU31,36200307-200309

main72277-33021iGSU30,35; GSU31,36200601-200812

89170SENSOR ASSY, AIRBAG

main89170-48060supersedes 89170-48050iACU3#,MCU3#200302-200601

89173ASENSOR, AIRBAG, FRONT RH

main89173-49295iGSU3#200601-200812

89174ASENSOR, AIRBAG, FRONT LH

main89173-49295iACU3#,MCU3#200302-200601

89178ASENSOR, SEAT POSITION AIRBAG

main89178-0W010iACU3#,MCU3#200302-200307

main89178-33020iACU3#,MCU30,35200307-200407

main89178-33030iACU3#; MCU30,35; MCU31,36200307-200309

main89178-33040iACU3#,MCU30,35200408-200601

main89178-33050iGSU30,35; GSU31,36200601-200812

main89178-33031iACU3#; MCU30,35200307-200407

89833SENSOR, AIRBAG, REAR RH

main89833-48010iACU3#,MCU3#200302-200503

main89833-48020iACU3#,MCU3#200504-200601

89834SENSOR, AIRBAG, REAR LH

main89834-48010iACU3#,MCU3#200302-200503

main89834-48020iACU3#,MCU3#200504-200601

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-48020iACU3#,MCU3#200302-200601

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-48020iACU3#,MCU3#200302-200601

9011908C48

main90119-08C48

9155380810

main91553-80810

91553A0625

main91553-A0625

12 parts on this diagram · 1 diagram in section
