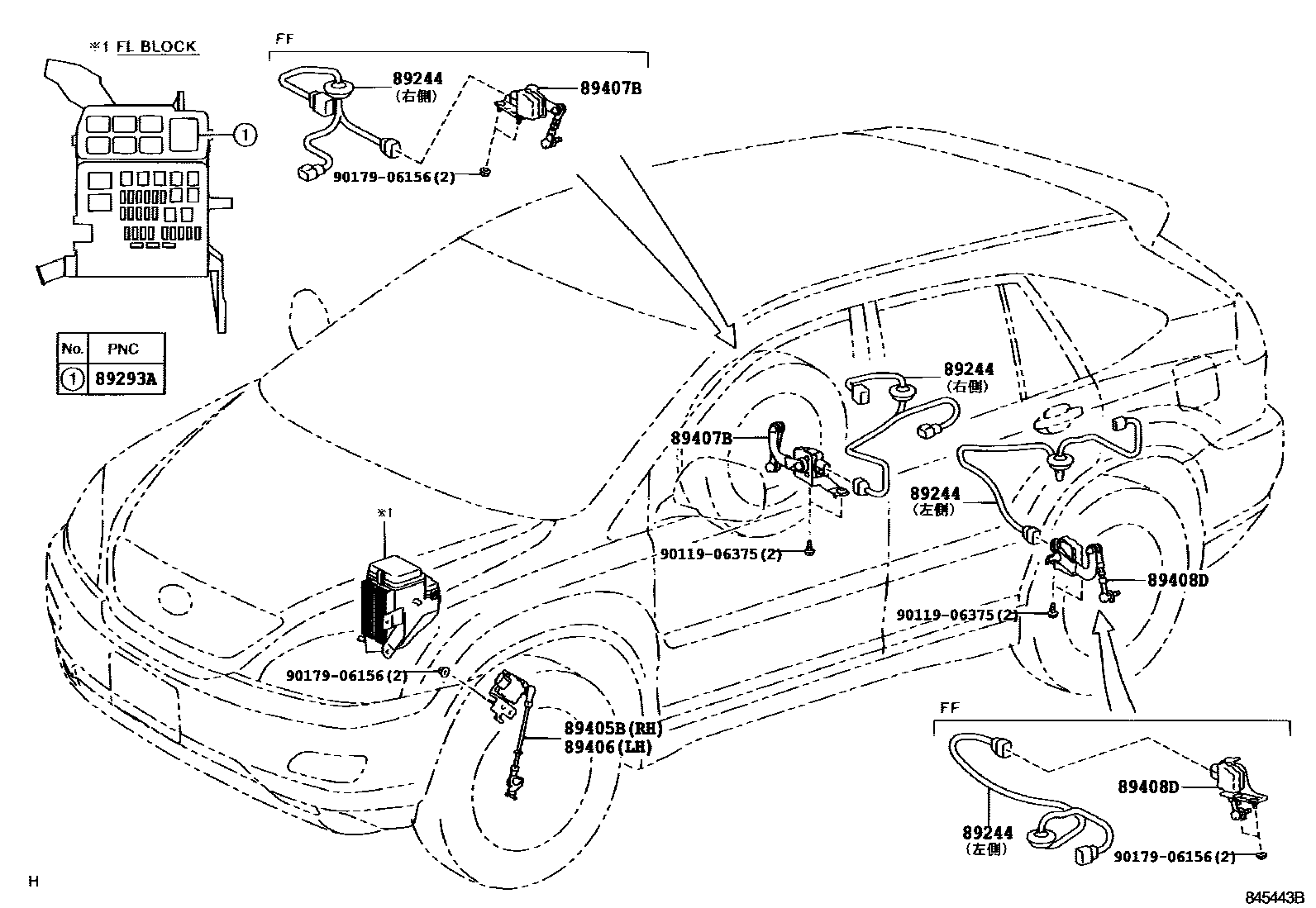

ELECTRONIC MODULATED SUSPENSION

0001 1��- & ���- & ����-���� 0002 1���� & ECU

89244WIRE, ABSORBER CONTROL, REAR

main89244-48010iGSU31200601-200812

main89244-48020iMCU31200302-200601

main89244-48030iMCU36200302-200601

main89244-48040iGSU36200601-200812

89293COMPUTER, SUSPENSION CONTROL

main89293-48011iMCU31,36200302-200401

main89293-48012iMCU31,36200401-200410

main89293-48013iMCU31,36200410-200601

main89293-48014iGSU31,36200801-200812

89293ARELAY, SUSPENSION CONTROL

main90987-02025iMCU31,36200302-200601

89405BSENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH

main89405-48020iMCU31,36200302-200601

89406SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH

main89406-48020iGSU31,36200601-200812

89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-48020iMCU31200302-200601

main89407-48030iMCU36200302-200601

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-48010iMCU31200302-200601

main89408-48020iGSU36200601-200812

9011906375

main90119-06375

9017906156

main90179-06156

9 parts on this diagram · 2 diagrams in section
