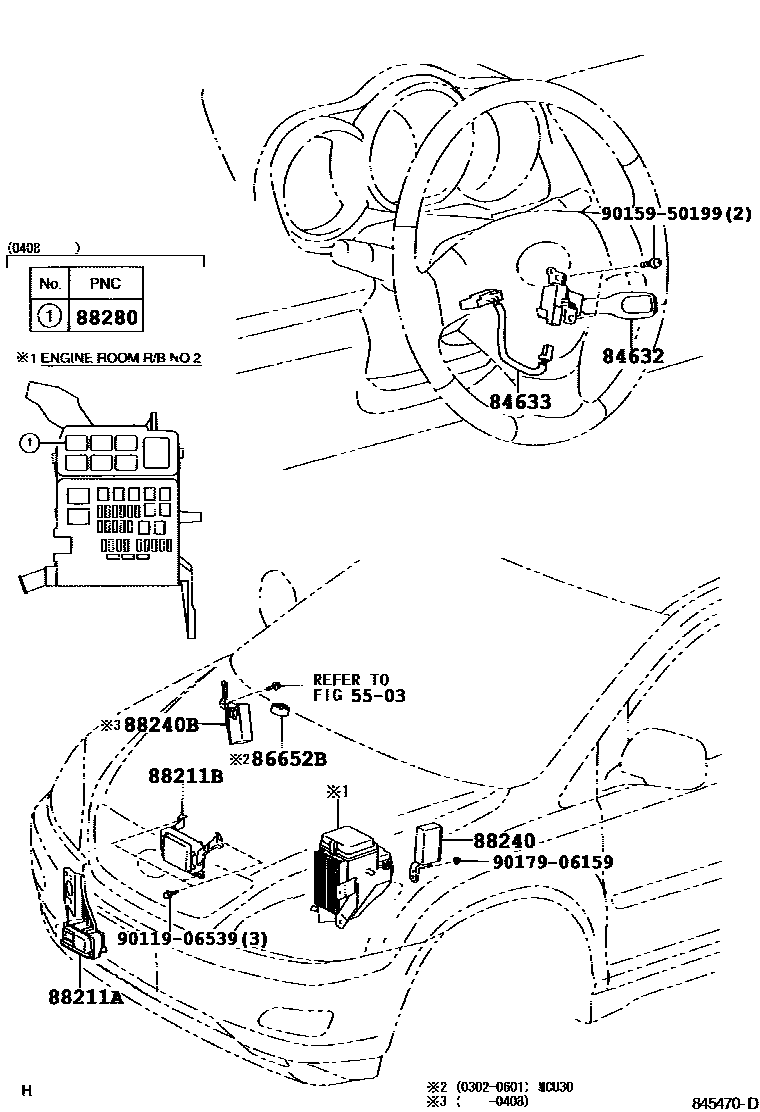

CRUISE CONTROL (AUTO DRIVE)

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

84632SWITCH, CRUISE CONTROL MAIN

main84632-58010iMCU30,35; MCU31,36200302-200409

main84632-58011iMCU30,35; MCU31,36200409-200601

84633WIRE, CRUISE CONTROL SWITCH

main84633-48010iMCU30,35; MCU31,36200302-200601

86652BBUZZER, SKID CONTROL

main86652-48010iMCU30200302-200601

88211ASENSOR, LASER RADAR

main88210-48020iMCU3#200302-200304

main88210-48021iMCU3#200304-200306

main88210-48022iMCU3#200306-200308

main88210-48023iMCU3#200308-200601

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-48010iMCU31,36200302-200408

main88210-48050iMCU31,36200408-200601

88240COMPUTER ASSY, CRUISE CONTROL

main88240-48080iMCU3#200302-200408

main88240-48120iMCU3#200408-200601

main88240-48170iGSU3#200601-200812

88240BCOMPUTER ASSY, PRE-COLLISION SAFETY

main88240-48070iMCU31,36200302-200408

88280RELAY ASSY, CRUISE CONTROL(AUTO DRIVE), B

main90987-04004iMCU31,36200408-200601

9011906539

main90119-06539

9015950199

main90159-50199

9017906159

main90179-06159

12 parts on this diagram · 1 diagram in section
