BATTERY & BATTERY CABLE

0001 1 0002 1

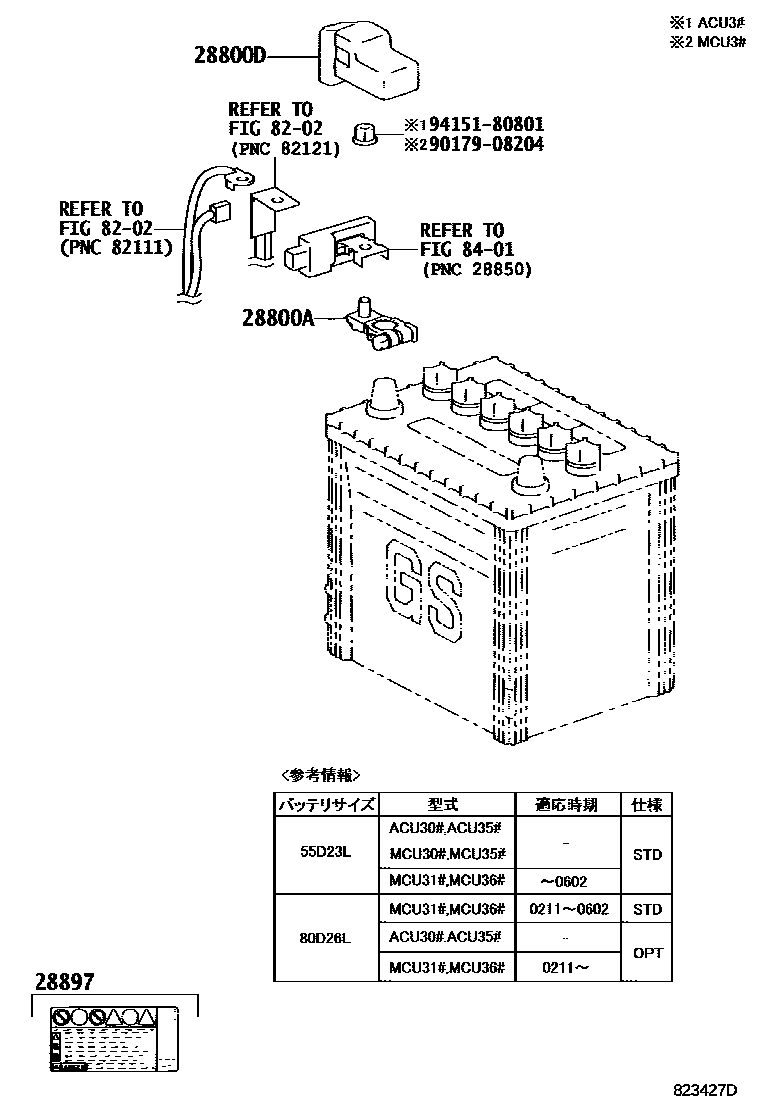

28800ATERMINAL, BATTERY POSITIVE

main90982-05053i2AZFE..ACU3#200601

main90982-05054i1MZFE..MCU3#200302-200601

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-48020i2GRFE..GSU3#200601-200812

main82821-48030i2AZFE..ACU3#200302-200601

28897PLATE, BATTERY CAUTION

main28897-50020i1MZFE..MCU31,36200302-200601

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017908204

main90179-08204

9415180801

main94151-80801

7 parts on this diagram · 2 diagrams in section
