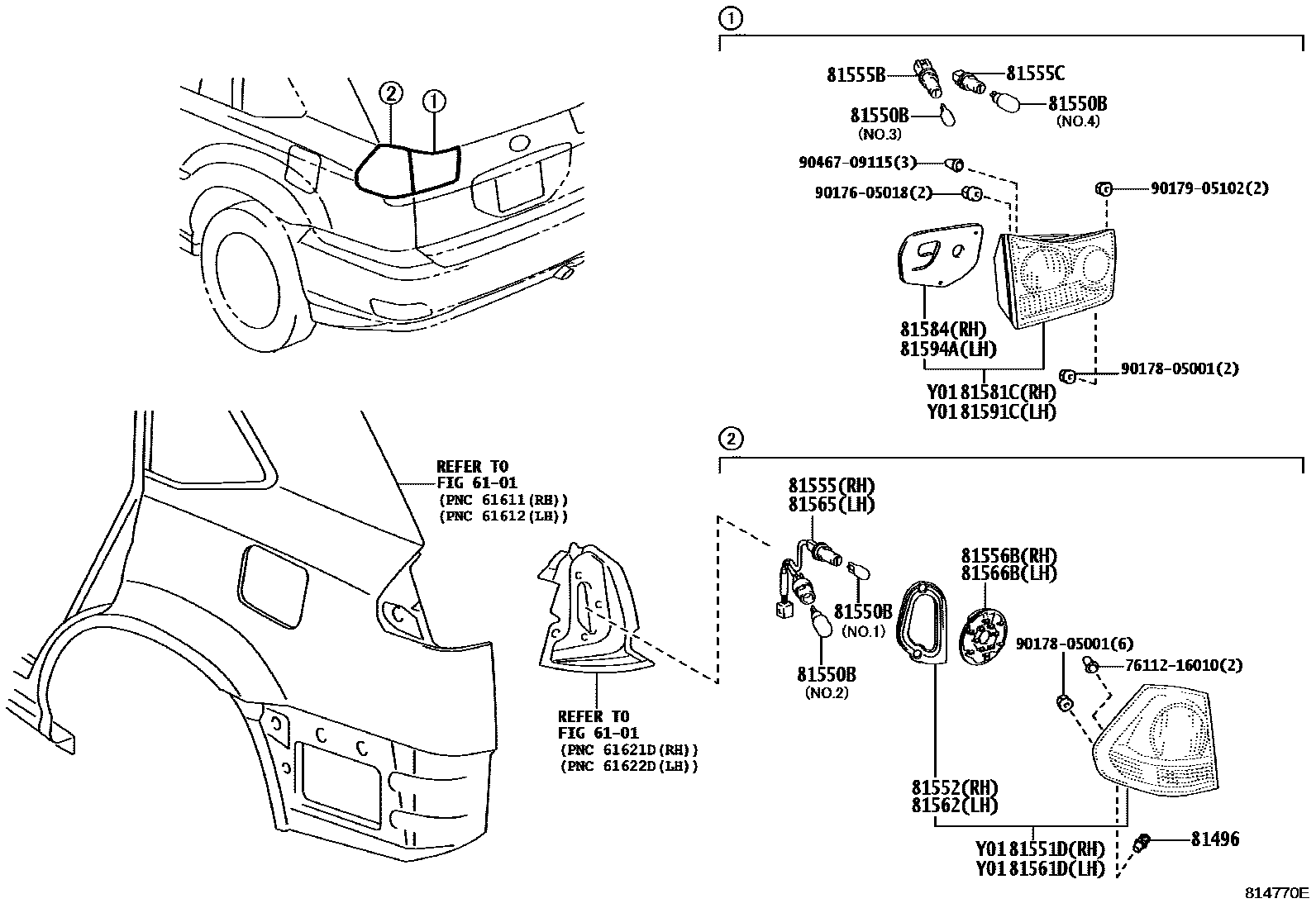

REAR COMBINATION LAMP

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-60010iGSU3#200302-200812

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11059iGSU3#200302-200812

main90981-15011iACU3#,MCU3#200302-200812

main99132-12050iGSU3#200302-200812

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-48060iACU3#,GSU3#200302-200610

sub81551-48061

main81551-48061iACU3#200611-200812

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-48060iACU3#,MCU3#200302-201110

sub81554-48061

sub81564-48061

main81554-48061iACU3#201110

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-48060iGSU3#200302-200812

81555BSOCKET PLUG, NO.1

main90075-60046iACU3#,MCU3#200406-200812

main90075-60056iACU3#,MCU3#200302-200405

81555CSOCKET PLUG, NO.2

main90075-60063iACU3#200302-200812

81556BLED, REAR COMBINATION LAMP, RH

main81553-48060iACU3#,MCU3#200302-201207

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-48060iACU3#,MCU3#200302-200611

sub81561-48061

main81561-48061iGSU3#200611-200812

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-48060iACU3#,MCU3#200302-201110

sub81554-48061

sub81564-48061

main81564-48061iACU3#201110

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-48060iACU3#,MCU3#200302-200812

81566BLED, REAR COMBINATION LAMP, LH

main81563-48060iACU3#,MCU3#200302-201207

81581CLENS AND BODY, REAR LAMP, RH

main81581-48050iACU3#,MCU3#200302-200610

sub81581-48051

main81581-48051iGSU3#200611-200812

81584PACKING, REAR LAMP RH

main81584-48050iACU3#,MCU3#200302-200812

sub81584-48051

81591CLENS, REAR LAMP, LH

main81591-48050iACU3#,MCU3#200302-200610

sub81591-48051

main81591-48051iGSU3#200611-200812

81594AGASKET, REAR LAMP LH

main81594-48050iACU3#,MCU3#200302-200812

sub81594-48051

7611216010

main76112-16010

9017605018

main90176-05018

9017805001

main90178-05001

9017905102

main90179-05102

9046709115

main90467-09115

22 parts on this diagram · 1 diagram in section
