MUDGUARD & SPOILER

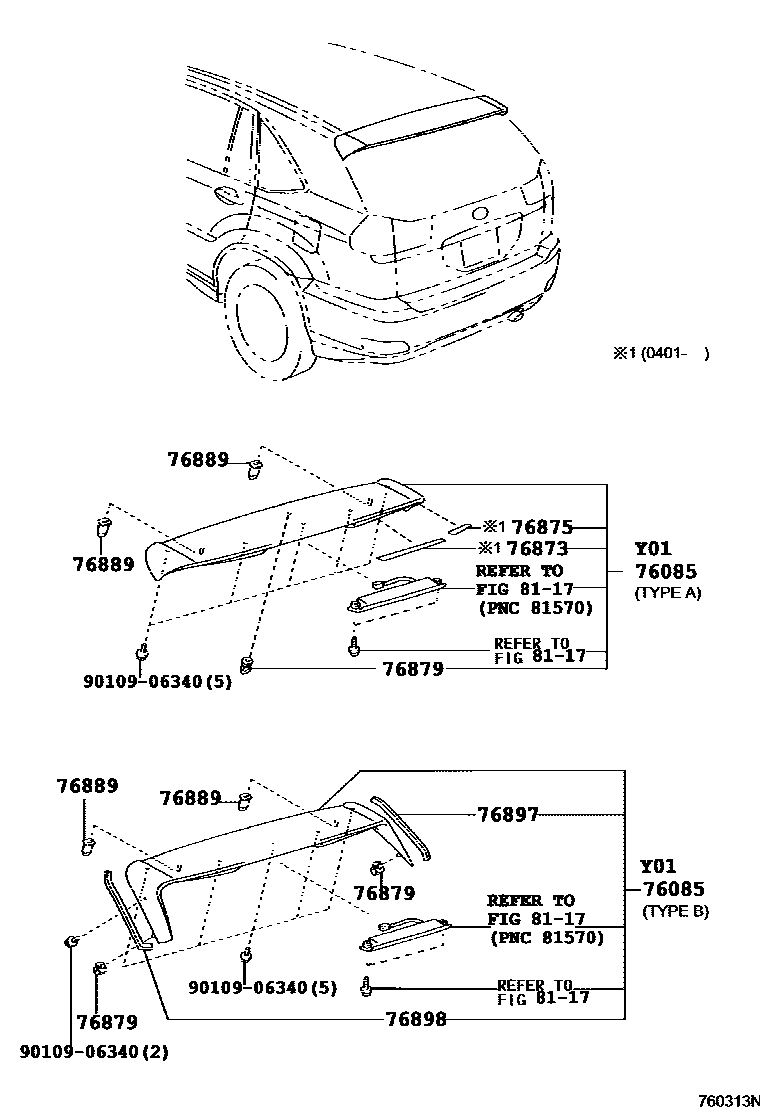

Parts diagram

76085SPOILER SUB-ASSY, REAR

main76085-48040i200302-200401

main76085-48041i200401-200601

main76085-48042i200609-200610

main76085-48043i200611

main76085-48050-A0i200302-200601

main76085-48050-B0i200601-200610

main76085-48050-B1i200601-200610

main76085-48050-C0i200302-200601

main76085-48050-E0i200601-200610

main76085-48050-J0i200601-200610

main76085-48050-J1i200601-200610

main76085-48050-J2i200601-200610

main76085-48051-A0i200611-200612

main76085-48051-B0i200611-200612

main76085-48051-B1i200611-200612

main76085-48051-C0i200611-200612

main76085-48051-E0i200611-200612

main76085-48051-J1i200611-200612

main76085-48051-J2i200611-200612

main76085-48052-A0i200701-200812

main76085-48052-B0i200701-200801

main76085-48052-B1i200701-200812

main76085-48052-B2i200701-200812

main76085-48052-B3i200801-200812

main76085-48052-C0i200701-200812

main76085-48052-E0i200701-200801

main76085-48052-J1i200701-200812

main76085-48052-J2i200701-200801

main76085-48050-D0i200609-200703

main76085-48070-A0i200604-200701

main76085-48070-B0i200604-200701

main76085-48070-C0i200604-200701

main76085-48100-A0i200801-200812

main76085-48100-A1i200812-201008

main76085-48100-B0i200812-200907

main76085-48100-B2i200812-201008

main76085-48100-C1i200801-200812

main76085-48100-E3i200812-201008

main76085-48100-J2i200812-201008

76873PROTECTOR, REAR SPOILER, NO.2

main76873-48010×2i200401-200601

76875PROTECTOR, REAR SPOILER, NO.4

main76875-48010×2i200601

76879CLIP, REAR SPOILER, NO.1

main76879-48020supersedes 76879-24020i200302-200601

main76879-24020×2supersedes 76879-48020i200609-200703

76889CLIP, REAR SPOILER, NO.2

main76889-44020×2i200302-200601

76897PROTECTOR, REAR SPOILER, SIDE RH

main76897-48030i200302-200601

76898PROTECTOR, REAR SPOILER, SIDE LH

main76898-48030i200302-200601

8117CENTER STOP LAMP

→ Go to FIG 81-17

9010906340

main90109-06340

9 parts on this diagram · 1 diagram in section
