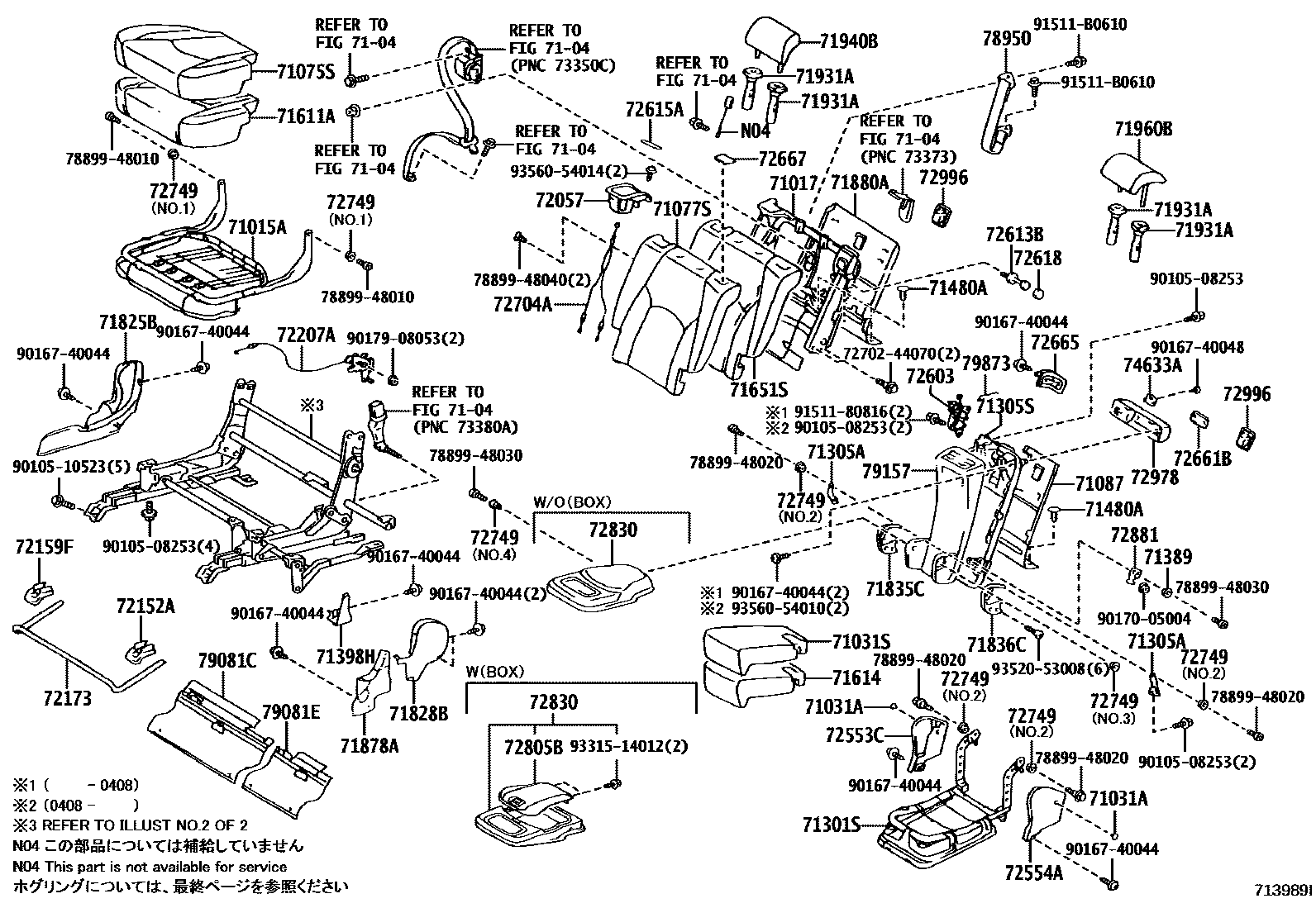

REAR SEAT & SEAT TRACK

0001 1RH-4:2:4 ����� ����� 0002 1RH-6:4 ����� ����� 0003 1LH 0004 1����� �������� ������ASSY 0005 1�������

71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH

main71650-48010iACU3#; MCU30,35; MCU31,36200302-200601

main71650-48020iACU3#,MCU30,35200302-200601

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-48100iACU3#,MCU3#200302-200601

71031ACLIP, CENTER SEAT CUSHION

main90467-05159-A0×2iACU3#,MCU3#200307-200601

IVORY,TRIM0#

main90467-05159-B1×2iACU3#,MCU3#200307-200601

LT.GRAY,TRIM1#

main90467-05159-C0×2iACU3#,GSU3#200601-201207

BLACK,TRIM2#

71031SCOVER SUB-ASSY, CENTER SEAT CUSHION

main71097-48010-A0iACU3#; MCU30,35; MCU31,36200302-200601

main71097-48010-B0iACU3#; MCU30,35; MCU31,36200302-200601

main71097-48010-C0iACU3#; MCU30,35; MCU31,36200302-200601

main71097-48020-A0iACU3#; GSU30,35; GSU31,36200601-200812

main71097-48020-B0supersedes 71097-48010-B0iACU3#; MCU30,35; MCU31,36200302-200601

main71097-48020-C0iACU3#; MCU30,35; MCU31,36200302-200601

main71097-48040-A0iACU3#; MCU30,35200408-200601

main71097-48040-C0iACU3#; GSU30,35200604-200701

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

main71075-48210-C0iACU3#,MCU30,35200302-200601

BLACK,TRIM2#

main71075-48211-C0iACU3#201008-201207

BLACK,TRIM2#

main71075-48180-A0iACU3#; MCU30,35; MCU31,36200302-200601

main71075-48180-B0iACU3#; MCU30,35; MCU31,36200302-200601

main71075-48180-C0iACU3#; MCU30,35; MCU31,36200302-200601

main71075-48190-A0iACU3#; GSU30,35; GSU31,36200601-200812

main71075-48190-B0supersedes 71075-48180-B0iACU3#; GSU30,35; GSU31,36200601-200812

main71075-48190-C0iACU3#; MCU30,35; MCU31,36200302-200601

main71075-48191-C0iACU3#200902-201207

main71075-48300-A0iACU3#; MCU30,35200408-200601

main71075-48300-C0iACU3#; GSU30,35200604-200701

main71075-48430-B0iACU3#,GSU30,35200801-200811

main71075-48440-C0iACU3#200812-200907

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-48240-C0iACU3#,MCU30,35200302-200408

BLACK,TRIM2#

main71077-48241-C0iACU3#,MCU30,35200408-200601

BLACK,TRIM2#

main71077-48241-C1iACU3#,GSU30,35200608-201007

BLACK,TRIM2#

main71077-48242-C1iACU3#201008-201207

BLACK,TRIM2#

main71077-48210-A0iACU3#; MCU30,35; MCU31,36200302-200408

main71077-48210-B0iACU3#; MCU30,35; MCU31,36200302-200408

main71077-48210-C0iACU3#; MCU30,35; MCU31,36200302-200408

main71077-48211-A0iACU3#; MCU30,35; MCU31,36200408-200601

main71077-48211-A1iACU3#200908-201207

main71077-48211-B0iACU3#; MCU30,35; MCU31,36200408-200601

main71077-48211-B1iACU3#; GSU30,35; GSU31,36200608-200812

main71077-48211-C0iACU3#; MCU30,35; MCU31,36200408-200601

main71077-48211-C1iACU3#200908-201207

main71077-48220-A0iACU3#; MCU30,35; MCU31,36200302-200408

main71077-48220-B0iACU3#; MCU30,35; MCU31,36200302-200408

main71077-48220-C0iACU3#; MCU30,35; MCU31,36200302-200408

main71077-48221-A0supersedes 71077-48211-A1iACU3#; GSU30,35; GSU31,36200601-200608

main71077-48221-A1iACU3#; GSU30,35; GSU31,36200608-200812

main71077-48221-B0supersedes 71077-48211-B0iACU3#; MCU30,35; MCU31,36200408-200601

main71077-48221-B1supersedes 71077-48211-B1iACU3#; GSU30,35; GSU31,36200608-200812

main71077-48221-C0supersedes 71077-48211-C0iACU3#; MCU30,35; MCU31,36200408-200601

main71077-48221-C1supersedes 71077-48211-C1iGSU30,35; GSU31,36200608-200812

main71077-48222-C1iACU3#200902-201207

main71077-48350-A0iACU3#; MCU30,35200401-200407

main71077-48460-A0iACU3#; MCU30,35200408-200601

main71077-48460-C0iACU3#; GSU30,35200604-200701

main71077-48460-C1iACU3#201110-201207

main71077-48640-B0iACU3#,GSU30,35200801-200811

main71077-48660-C0iACU3#200812-200907

71087BOARD SUB-ASSY, REAR SEATBACK

main71087-48010-A0iGSU30,35; GSU31,36200601-200812

main71087-48010-B1iACU3#; MCU30,35; MCU31,36200302-200601

main71087-48010-C1iACU3#; MCU30,35; MCU31,36200302-200601

71301SFRAME SUB-ASSY, CENTER SEAT CUSHION

main71031-48010iACU3#; MCU30,35; MCU31,36200302-200601

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71343-48010iACU3#,MCU3#200302-200601

main71343-48020iACU3#,MCU3#200302-200601

71305SFRAME SUB-ASSY, CENTER SEATBACK

main71305-48010iACU3#; MCU30,35; MCU31,36200302-200601

main71305-48020iACU3#,GSU30,35200601

71389SPACER, CENTER SEAT HINGE

main72749-48030iACU3#,GSU3#200601

71398HCOVER, CENTER SEAT HINGE, UPPER LH

main71398-48010-A0iACU3#,MCU3#200302-200601

IVORY,TRIM0#

main71398-48010-B0iACU3#,MCU3#200302-200601

LT.GRAY,TRIM1#

main71398-48010-C0iACU3#,MCU3#200302-200601

BLACK,TRIM2#

main71398-48030-A2iACU3#200812-201207

IVORY,TRIM0#

main71398-48030-C0iACU3#200812-201207

BLACK,TRIM2#

71480ACLIP (FOR REAR SEATBACK)

main90467-07049-C0×8iACU3#,MCU3#200302-200601

BLACK,TRIM0#,1#,2#

71611APAD, REAR SEAT CUSHION, RH

main71611-48050iACU3#; MCU30,35; MCU31,36200302-200601

main71611-48060iACU3#,MCU30,35200302-200601

71614PAD, REAR SEAT CUSHION, CENTER

main71614-48010iACU3#; MCU30,35; MCU31,36200302-200601

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-48070iACU3#,MCU3#200302-200601

71825BMOULDING, REAR SEAT CUSHION, RH

main71825-48030-A0iACU3#,GSU3#200601-201207

IVORY,TRIM0#

main71825-48030-B0iACU3#,MCU3#200302-200601

LT.GRAY,TRIM1#

main71825-48030-C0iACU3#,GSU3#200601-201207

BLACK,TRIM2#

71828BMOULDING, REAR SEAT CUSHION, REAR RH

main71828-48030-A0iACU3#,GSU3#200601-201207

IVORY,TRIM0#

main71828-48030-B0iACU3#,MCU3#200302-200601

LT.GRAY,TRIM1#

main71828-48030-C0iACU3#,GSU3#200601-201207

BLACK,TRIM2#

71835CMOULDING, REAR SEATBACK, RH

main71835-48010-A0iACU3#,MCU3#200302-200601

IVORY,TRIM0#

main71835-48010-B0iACU3#,MCU3#200302-200601

LT.GRAY,TRIM1#

main71835-48010-C0iACU3#,MCU3#200302-200601

BLACK,TRIM2#

71836CMOULDING, REAR SEATBACK, LH

main71836-48010-A0iACU3#,MCU3#200302-200601

IVORY,TRIM0#

main71836-48010-B0iACU3#,MCU3#200302-200601

LT.GRAY,TRIM1#

main71836-48010-C0iACU3#,GSU3#200601-201207

BLACK,TRIM2#

71878ACOVER, REAR SEAT RECLINING, INNER RH

main71878-48020-A0iACU3#,GSU3#200601-201207

IVORY,TRIM0#

main71878-48020-B0iACU3#,GSU3#200601-200812

LT.GRAY,TRIM1#

main71878-48020-C0iACU3#,GSU3#200601-201207

BLACK,TRIM2#

71880ACARPET ASSY, REAR SEATBACK BOARD, RH

main71880-48100-A0iACU3#; MCU30,35; MCU31,36200302-200601

main71880-48100-B1iACU3#; MCU30,35; MCU31,36200302-200601

main71880-48100-C1iGSU30,35; GSU31,36200601-200812

main71880-48110-C1iACU3#,MCU30,35200302-200601

BLACK,TRIM2#

71931ASUPPORT, REAR SEAT HEADREST

main71930-42020-A0×2iACU3#,GSU3#200601-201009

main71930-42020-B2×2iACU3#,MCU3#200302-200601

main71930-42020-C0×2iACU3#,GSU3#200601-201009

main71930-52030-A0×2iACU3#201009-201207

main71930-52030-C0×2iACU3#201009-201207

main71931-42020-A0×2iACU3#,MCU3#200302-200601

main71931-42020-B2×2iACU3#,MCU3#200302-200601

main71931-42020-C0×2iACU3#,GSU3#200601-201207

main71955-48010-A0iACU3#,MCU3#200302-200601

main71955-48010-B0iACU3#,MCU3#200302-200601

main71955-48010-C0iACU3#,GSU3#200601-201009

main71955-48020-A1iACU3#201009-201207

main71955-48020-C0iACU3#201009-201207

main71956-48010-A0iACU3#,GSU3#200601-201207

main71956-48010-B0iACU3#,GSU3#200601-200812

main71956-48010-C0iACU3#,MCU3#200302-200601

71940BHEADREST ASSY, REAR SEAT, RH

main71940-48150-C0×2iACU3#,GSU30,35200601-201207

BLACK,TRIM2#

main71940-48160-A0×2iGSU30,35; GSU31,36200601-200812

main71940-48160-B0×2iACU3#; MCU30,35; MCU31,36200302-200601

main71940-48160-C0×2iACU3#; MCU30,35; MCU31,36200302-200601

main71940-48170-A0×2iACU3#; GSU30,35; GSU31,36200601-200812

main71940-48170-B0×2supersedes 71940-48160-B0iACU3#; GSU30,35; GSU31,36200601-200812

main71940-48170-C0×2iACU3#; MCU30,35; MCU31,36200302-200601

main71940-48230-A0×2iACU3#; MCU30,35200401-200407

main71940-48230-C0×2iACU3#; GSU30,35200604-200701

main71940-48390-B0×2iACU3#,GSU30,35200801-200811

main71940-48450-C0iACU3#200812-200907

main71940-48460-C0iACU3#200812-200907

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-48170-C0iACU3#,GSU30,35200601-201207

BLACK,TRIM2#

main71960-48180-A0iACU3#; MCU30,35; MCU31,36200302-200601

main71960-48180-B0iACU3#; MCU30,35; MCU31,36200302-200601

main71960-48180-C0iACU3#; MCU30,35; MCU31,36200302-200601

main71960-48190-A0iACU3#; MCU30,35; MCU31,36200302-200601

main71960-48190-B0supersedes 71960-48180-B0iACU3#; GSU30,35; GSU31,36200601-200812

main71960-48190-C0iGSU30,35; GSU31,36200601-200812

main71960-48230-A0iACU3#; MCU30,35200408-200601

main71960-48230-C0iACU3#; GSU30,35200604-200701

72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

main72057-48030-A0iACU3#,MCU3#200302-200408

IVORY,TRIM0#

main72057-48030-B0iACU3#,MCU3#200302-200408

LT.GRAY,TRIM1#

main72057-48030-C0iACU3#,MCU3#200302-200408

BLACK,TRIM2#

main72058-48010-A0iACU3#,MCU3#200408-200601

IVORY,TRIM0#

main72058-48010-B0iACU3#,MCU3#200408-200601

LT.GRAY,TRIM1#

main72058-48010-C0iACU3#,MCU3#200408-200601

BLACK,TRIM2#

72152ACOVER, REAR SEAT TRACK BRACKET, INNER

main72159-48020-A0iACU3#,MCU3#200302-200601

IVORY,TRIM0#

main72159-48020-B0iACU3#; GSU30,35; GSU31,36200601-200812

main72159-48020-C0iACU3#,MCU3#200302-200601

BLACK,TRIM2#

72159FCOVER, REAR SEAT TRACK BRACKET, RH

main72152-48010-A0iGSU30,35; GSU31,36200601-200812

main72152-48010-B0iACU3#; GSU30,35; GSU31,36200601-200812

main72152-48010-C0iACU3#,GSU3#200601-201207

BLACK,TRIM2#

72173HANDLE, REAR SEAT TRACK ADJUSTING

main72173-48010×2iACU3#,MCU3#200302-200408

main72173-48030×2iACU3#,GSU3#200601

72207APLATE, SEAT TRACK STOP RH

main72207-48010iACU3#,GSU3#200601

72553CPROTECTOR, RECLINING COVER, RH

main72553-48060-A0iACU3#,GSU3#200601-201207

IVORY,TRIM0#

main72553-48060-B0iACU3#,GSU3#200601-200812

LT.GRAY,TRIM1#

main72553-48060-C0iACU3#,MCU3#200302-200601

BLACK,TRIM2#

72554APROTECTOR, RECLINING COVER, LH

main72554-48060-A0iACU3#,GSU3#200601-201207

IVORY,TRIM0#

main72554-48060-B0iACU3#,GSU3#200601-200812

LT.GRAY,TRIM1#

main72554-48060-C0iACU3#,GSU3#200601-201207

BLACK,TRIM2#

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72630-48010iACU3#; MCU30,35; MCU31,36200302-200601

72613BSTRIKER, REAR SEAT LOCK

main72613-48010iACU3#; MCU30,35; MCU31,36200302-200601

72615ACOVER, REAR SEATBACK LOCK STRIKER, RH

main72615-48020-A0iACU3#,MCU3#200302-200601

IVORY,TRIM0#

main72615-48020-B0iACU3#,MCU3#200302-200601

LT.GRAY,TRIM1#

main72615-48020-C0iACU3#,MCU3#200302-200601

BLACK,TRIM2#

72618PROTECTOR, REAR SEATBACK LOCK STRIKER

main72618-48010iACU3#; MCU30,35; MCU31,36200302-200601

72661BLEVER, REAR SEATBACK ROD CONTROL, OUTER

main72661-48010-A0iACU3#; MCU30,35; MCU31,36200302-200601

main72661-48010-B0iACU3#; GSU30,35; GSU31,36200601-200812

main72661-48010-C0iGSU30,35; GSU31,36200601-200812

72665COVER, REAR SEATBACK LOCK, RH

main72665-48010-A0iACU3#; MCU30,35; MCU31,36200302-200601

main72665-48010-B0iACU3#; MCU30,35; MCU31,36200302-200601

main72665-48010-C0iACU3#; MCU30,35; MCU31,36200302-200601

72667BEZEL, REAR SEATBACK LOCK, UPPER

main72667-48010-A0iACU3#,MCU3#200302-200601

IVORY,TRIM0#

main72667-48010-B0iACU3#,MCU3#200302-200601

LT.GRAY,TRIM1#

main72667-48010-C0iACU3#,GSU3#200601-201207

BLACK,TRIM2#

72704ACABLE, REAR SEAT RECLINING CONTROL

main72704-48010iACU3#,MCU3#200302-200601

72749SPACER, REAR SEAT RECLINING

main72749-48010×4iACU3#,MCU3#200302-200601

main72749-48020×4iACU3#,MCU3#200302-200601

main72749-48040iACU3#,MCU3#200302-200601

main72749-48050iACU3#,GSU3#200601

72805BDOOR SUB-ASSY, REAR SEAT CENTER ARMREST

main72805-48010-A0iACU3#; GSU30,35; GSU31,36200601-200812

main72805-48010-B0iACU3#; MCU30,35; MCU31,36200302-200601

main72805-48010-C0iACU3#; MCU30,35; MCU31,36200302-200601

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-48140-C0iACU3#,GSU30,35200601-200608

BLACK,TRIM2#

main72830-48140-C2iACU3#,GSU30,35200608-201207

BLACK,TRIM2#

main72830-48150-A0iACU3#; MCU30,35; MCU31,36200302-200601

main72830-48150-A2iACU3#200908-201207

main72830-48150-B0iACU3#; MCU30,35; MCU31,36200302-200601

main72830-48150-B4iACU3#; GSU30,35; GSU31,36200608-200812

main72830-48150-C0iACU3#; MCU30,35; MCU31,36200302-200601

main72830-48150-C3iACU3#200608-201207

main72830-48160-A0iACU3#; MCU30,35; MCU31,36200302-200601

main72830-48160-A1iACU3#; GSU30,35; GSU31,36200608-200812

main72830-48160-B0supersedes 72830-48150-B4iACU3#; GSU30,35; GSU31,36200601-200608

main72830-48160-B1iACU3#; GSU30,35; GSU31,36200608-200812

main72830-48160-C0iACU3#; GSU30,35; GSU31,36200601-200608

main72830-48160-C1iACU3#200608-201207

main72830-48200-A0iACU3#; MCU30,35200408-200601

main72830-48200-C0iACU3#; GSU30,35200604-200701

main72830-48200-C1iACU3#201110-201207

main72830-48350-B0iACU3#,GSU30,35200801-200811

main72830-48390-C0iACU3#200812-200907

72881SUPPORT, REAR SEAT CENTER ARMREST, RH

main72881-48010iACU3#,GSU3#200601

72978COVER, NO.2 CENTER SEATBACK

main72978-48010-A0iACU3#; MCU30,35; MCU31,36200302-200601

main72978-48010-B0iACU3#; GSU30,35; GSU31,36200601-200812

main72978-48010-C0iACU3#; MCU30,35; MCU31,36200302-200601

main72978-48020-C0iACU3#,MCU30,35200302-200601

BLACK,TRIM2#

72996COVER, REAR SEATBACK, RH

main72996-48030-A0×2iACU3#,GSU3#200601-201207

IVORY,TRIM0#

main72996-48030-B0×2iACU3#,GSU3#200601-200812

LT.GRAY,TRIM1#

main72996-48030-C0×2iACU3#,MCU3#200302-200601

BLACK,TRIM2#

74633ACAP, COAT HOOK

main74633-48010-A0iGSU30,35; GSU31,36200601-200812

main74633-48010-B0iACU3#; GSU30,35; GSU31,36200601-200812

main74633-48010-C0iACU3#; MCU30,35; MCU31,36200302-200601

78950BAND ASSY, FOLD SEAT STOPPER, NO.1

main78950-48030iACU3#,MCU3#200302-200601

79081CCOVER, REAR SEAT, NO.1

main79081-48010iACU3#,GSU3#200601

79081ECOVER, REAR SEAT, NO.3

main79081-48030iGSU30,35; GSU31,36200601-200812

main79081-48170iACU3#201005

79157COVER, NO.1 SEATBACK

main79157-48010-A0iACU3#,MCU30,35200302-200408

IVORY,TRIM0#

main79157-48010-B0iACU3#,MCU30,35200302-200408

LT.GRAY,TRIM1#

main79157-48010-C0iMCU31,36200302-200601

BLACK,TRIM2#

main79157-48020-C0iACU3#,GSU30,35200601-200707

BLACK,TRIM2#

main79157-48040-C0iACU3#,GSU30,35200708-201207

BLACK,TRIM2#

main79157-48050-A0iGSU30,35; GSU31,36200708-200812

main79157-48050-B0iACU3#; GSU30,35; GSU31,36200708-200812

main79157-48050-C0iGSU30,35; GSU31,36200708-200812

79873WIRE, FOLD SEATBACK

main79873-48010iACU3#; GSU30,35; GSU31,36200601-200604

main79873-48011iGSU30,35; GSU31,36200605-200812

7270244070BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-44070

7889948010BOLT, FRONT SEAT

main78899-48010

7889948020BOLT, FRONT SEAT

main78899-48020

7889948030BOLT, FRONT SEAT

main78899-48030

7889948040BOLT, FRONT SEAT

main78899-48040

9010508253

main90105-08253

9010510523

main90105-10523

9016740044

main90167-40044

9016740048

main90167-40048

9017005004

main90170-05004

9017908053

main90179-08053

9151180816

main91511-80816

91511B0610

main91511-B0610

9331514012

main93315-14012

9352053008

main93520-53008

9356054010

main93560-54010

9356054014

main93560-54014

70 parts on this diagram · 5 diagrams in section
