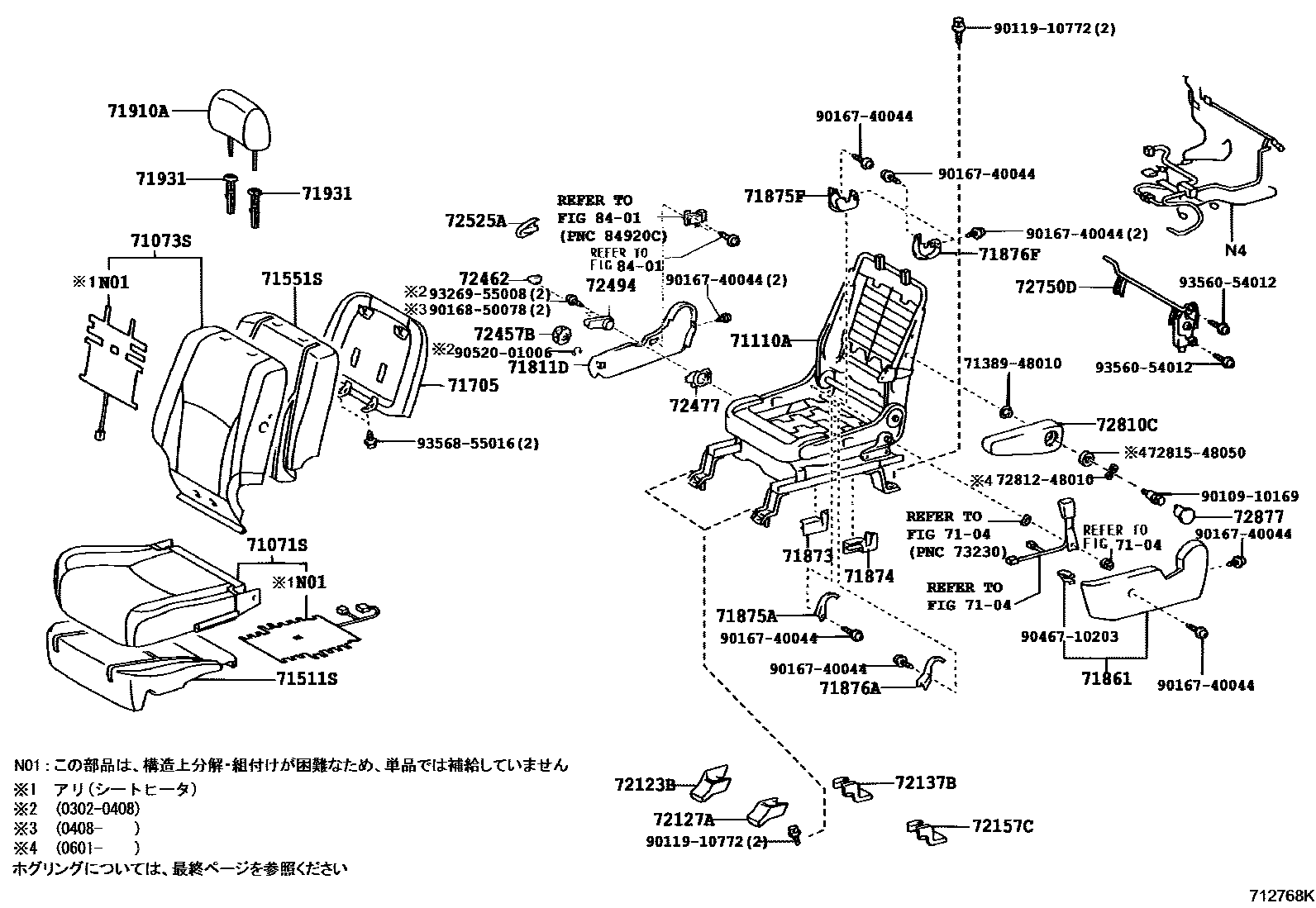

FRONT SEAT & SEAT TRACK
7104SEAT BELT & CHILD RESTRAINT SEAT
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
BLACK,TRIM2#
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
BLACK,TRIM2#
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
IVORY,TRIM0#
IVORY,TRIM0#
LT.GRAY,TRIM11
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
BLACK,TRIM22
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
71811DSHIELD, FRONT SEAT CUSHION, RH
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
BLACK,TRIM2#
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
BLACK,TRIM2#
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71910AHEADREST ASSY, FRONT SEAT
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
72123BCOVER, SEAT TRACK BRACKET, OUTER FRONT
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#
72137BCOVER, SEAT TRACK, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#
72157CCOVER, SEAT TRACK BRACKET, INNER RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#
72457BKNOB, VERTICAL SEAT ADJUSTER, RH
BLACK,TRIM2#
72462COVER, VERTICAL ADJUSTER RH
BLACK,TRIM2#
BLACK,TRIM2#
72477SPACER, VERTICAL ADJUSTER
BLACK
BLACK,TRIM0#,1#,2#
72494HANDLE, VERTICAL ADJUSTING, RH
BLACK,TRIM2#
BLACK,TRIM2#
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
BLACK,TRIM2#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
72810CARMREST ASSY, FRONT SEAT, CENTER
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
72877COVER, SEAT ARMREST, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
8401SWITCH & RELAY & COMPUTER
7138948010SPACER, CENTER SEAT HINGE
main71389-48010
7281248010CLUTCH, PROTECTOR SUB
main72812-48010
7281548050HOLDER, CLUTCH PROTECTOR SUB
main72815-48050
9010910169
main90109-10169
9011910772
main90119-10772
9016740044
main90167-40044
9016850078
main90168-50078
9046710203
main90467-10203
9052001006
main90520-01006
9326955008
main93269-55008
9356054012
main93560-54012
9356855016
main93568-55016
42 parts on this diagram · 9 diagrams in section
