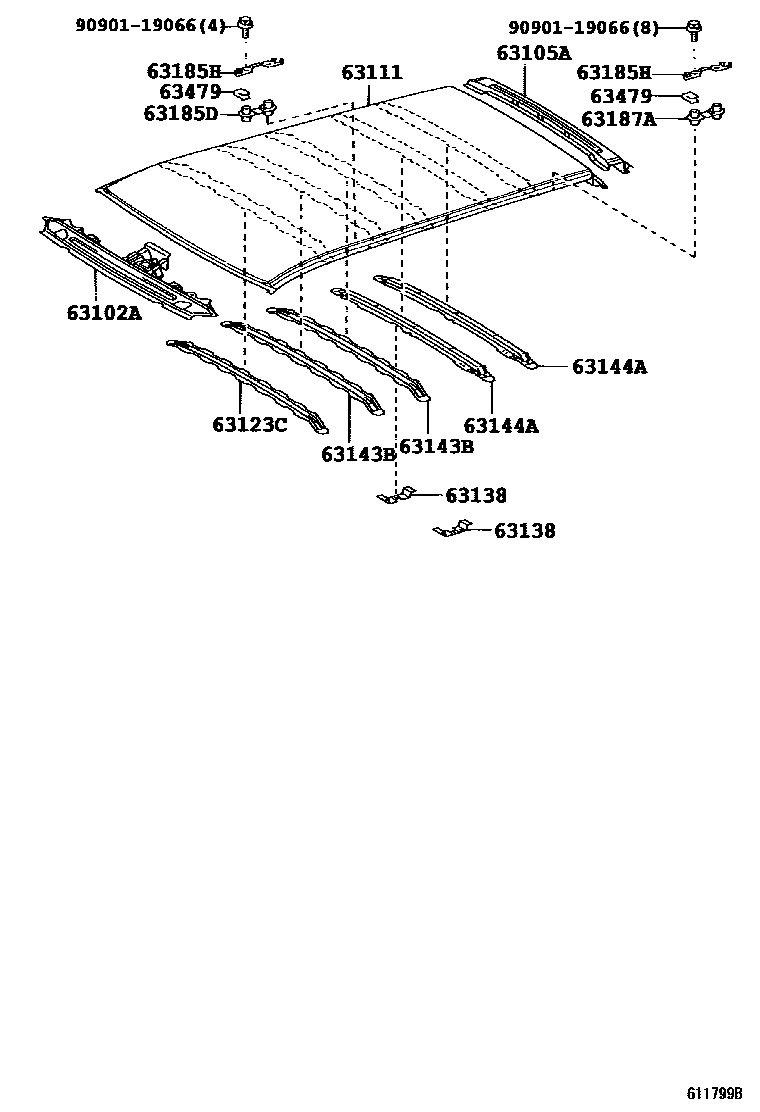

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1��(�-� �-�) 0003 1��(�-� �-�) 0004 1��(�-� ���)

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-48060supersedes 63102-48050iACU3#,MCU3#200302-200601

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-48030iACU3#200601

63111PANEL, ROOF

main63111-48070iACU3#,MCU3#200302-200601

63123CREINFORCEMENT, ROOF PANEL

main63123-48020iGSU3#200601-200812

63138BRACKET, DOME LAMP, NO.2

main63138-12011×2iACU3#,MCU3#200302-200601

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-48040×2iACU3#200601

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-48040supersedes 63144-48030iACU3#,MCU3#200302-200601

main63144-48041supersedes 63144-48030iACU3#200609

63185DBRACKET, ROOF RACK, FRONT

main63187-48010×2iACU3#,MCU3#200302-200601

63185HBRACKET, ROOF RACK

main63185-42020×4iACU3#,MCU3#200302-200601

63187ABRACKET, ROOF RACK, REAR

main63187-42010×2iACU3#,MCU3#200302-200601

63479RETAINER, ROOF INNER RACK

main63479-48010×4iACU3#,MCU3#200302-200601

9090119066

main90901-19066

12 parts on this diagram · 4 diagrams in section
