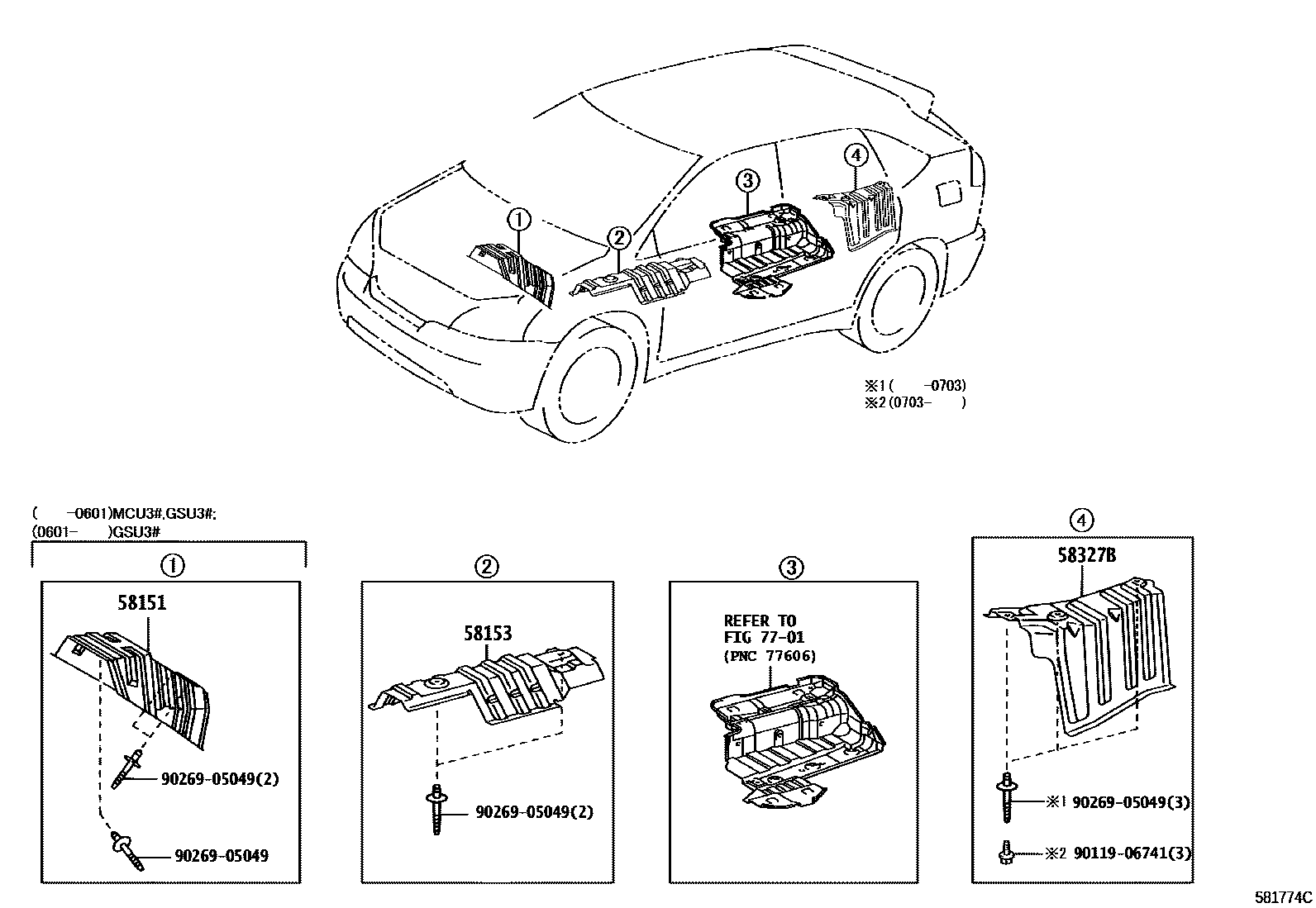

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-48030iMCU3#200302-200601

main58151-48031iGSU3#200705-200810

main58151-48032iGSU3#200810-200812

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-48020iACU3#,MCU3#200302-200601

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-48030iACU3#,MCU3#200302-200601

main58327-48031iGSU3#200703-200812

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011906741

main90119-06741

9026905049

main90269-05049

6 parts on this diagram · 1 diagram in section
