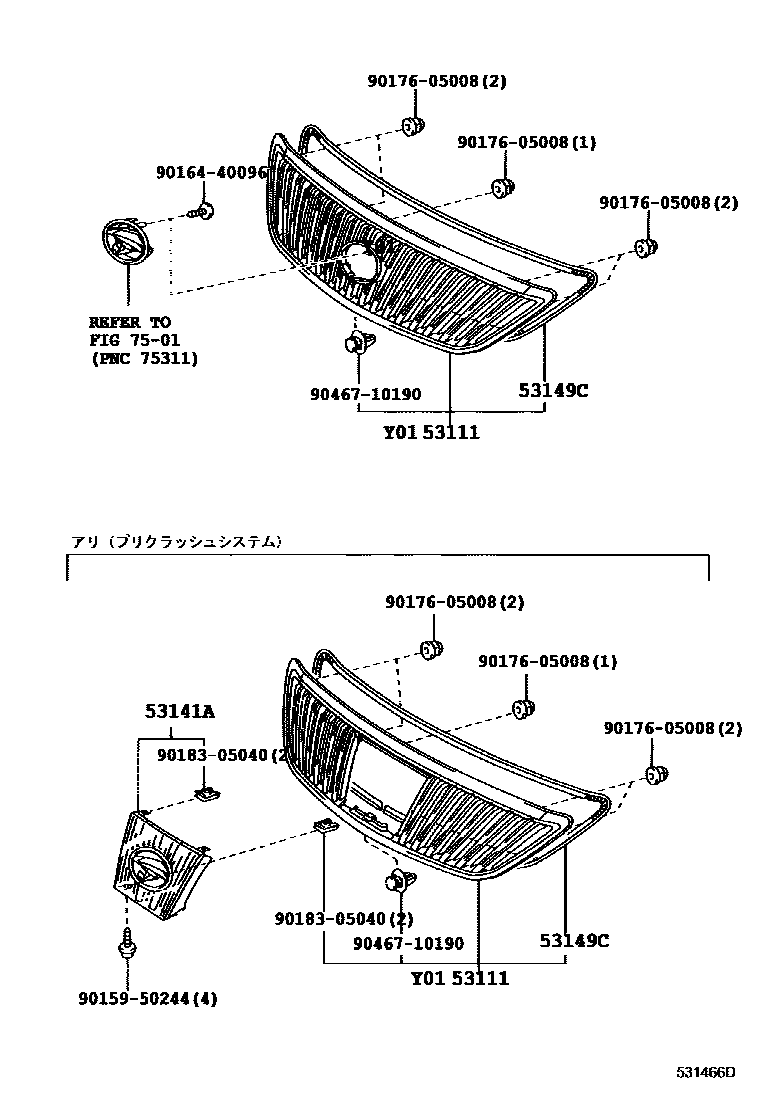

RADIATOR GRILLE

53111GRILLE, RADIATOR

main53101-48070iACU3#,MCU3#200302-200304

main53101-48071iACU3#,MCU3#200304-200601

main53101-48200iACU3#,GSU3#200701-200901

main53101-48201iACU3#200901-201207

main53101-48080iMCU31,36200302-200601

53141AGARNISH, RADIATOR GRILLE, LOWER RH

main53141-48010iMCU31,36200302-200601

53149CPROTECTOR, RADIATOR GRILLE, NO.2

main53149-48010iACU3#,MCU3#200302-200601

main53149-48040iACU3#,GSU3#200701

main53149-48050iACU3#,GSU3#200608-200701

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9015950244

main90159-50244

9016440096

main90164-40096

9017605008

main90176-05008

9018305040

main90183-05040

9046710190

main90467-10190

9 parts on this diagram · 1 diagram in section
