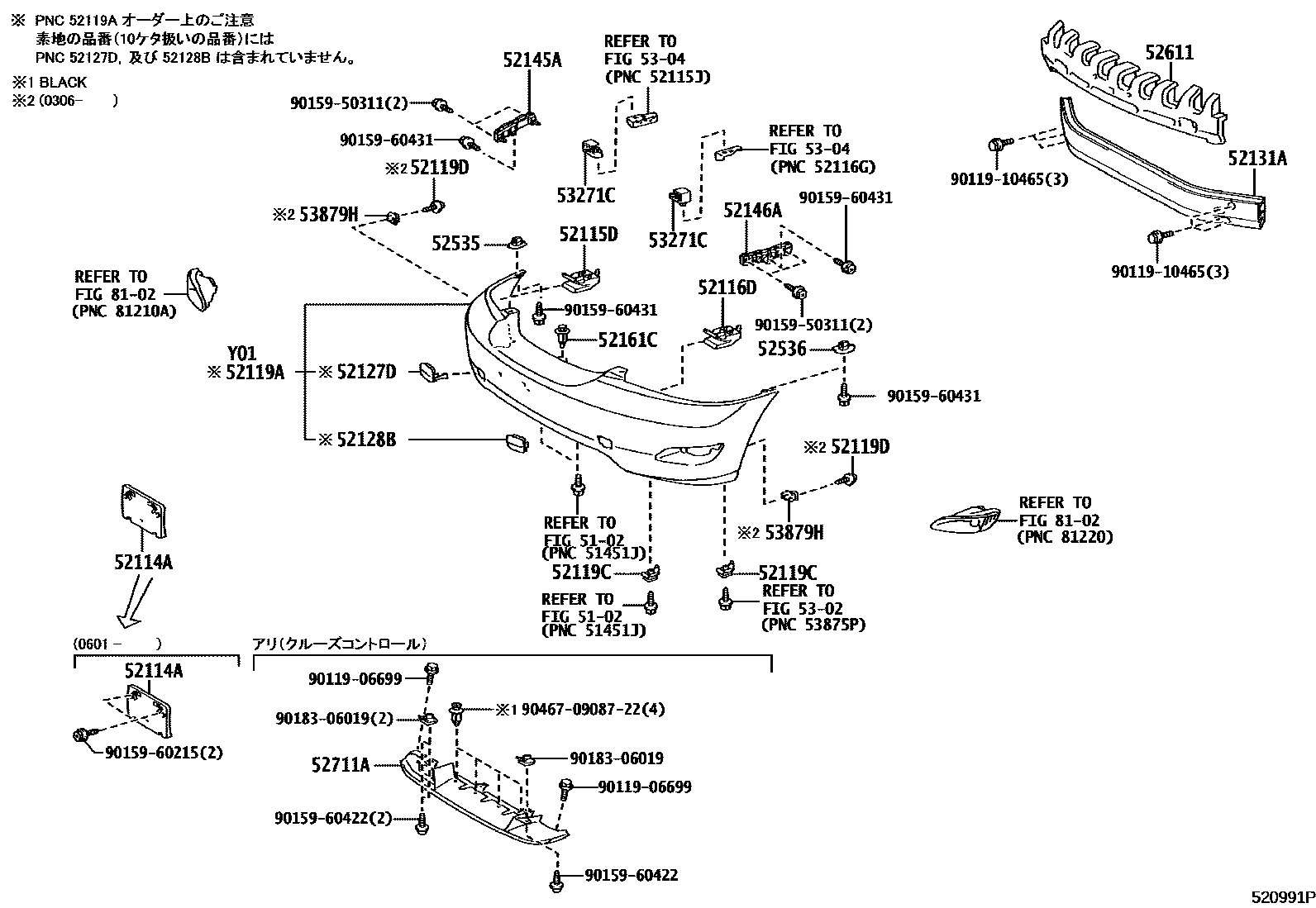

FRONT BUMPER & BUMPER STAY

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-48050iACU3#,MCU3#200302-200309

main52114-48051iACU3#,GSU3#200601-200708

main52114-48052iACU3#,GSU3#200709-200812

main52114-48150iACU3#200812

52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH

main52115-48060iGSU3#200601-200812

52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH

main52115-48060iGSU3#200601-200812

52119ACOVER, FRONT BUMPER

main52119-48060-A0iACU3#,MCU3#200302-200306

WHITE PEARL CS.,062

main52119-48060-B0iACU3#,MCU3#200302-200306

SILVER ME.,1C0

main52119-48060-B1iACU3#,MCU3#200302-200306

DK.GRAY MC.,1E0

main52119-48060-C0iACU3#,MCU3#200302-200306

BLACK,202

main52119-48060-E0iACU3#,MCU3#200302-200306

BEIGE ME.,4R4

main52119-48060-J0iACU3#,MCU3#200302-200306

LT.BLUE ME.,8R6

main52119-48060-J1iACU3#,MCU3#200302-200306

DK.BLUE M.M.,8R7

main52119-48060-J2iACU3#,MCU3#200302-200306

LT.BLUE M.M.,8R8

main52119-48061-A0iACU3#,GSU3#; GSU31,36200601-200812

main52119-48061-A3iACU3#200812-201207

WHITE PEARL CS.,070

main52119-48061-B0iACU3#,GSU3#; GSU31,36200601-200801

main52119-48061-B1iACU3#,GSU3#; GSU31,36200601-200812

main52119-48061-B2iACU3#,GSU3#; GSU31,36200701-200812

main52119-48061-B3iACU3#,GSU3#200801-201207

SILVER ME.,1F7

main52119-48061-B4iACU3#200812-201207

GRAY ME.,1G3

main52119-48061-C0iACU3#,MCU3#200306-200601

BLACK,202

main52119-48061-E0iACU3#,GSU3#; GSU31,36200601-200801

main52119-48061-E1iACU3#,GSU3#200801-201207

BEIGE ME.,4T8

main52119-48061-J0iACU3#,GSU3#; GSU31,36200601-200701

main52119-48061-J1iACU3#,MCU3#200306-200601

DK.BLUE M.M.,8R7

main52119-48061-J2iACU3#,MCU3#200306-200601

LT.BLUE M.M.,8R8

main52119-48061-J3iACU3#200812-201008

LT.BLUE M.M.,8S7

main52119-48061-J4iACU3#201008-201207

DK.BLUE MC.,8S6

main52119-48061-A2iACU3#,GSU30,35200604-200701

main52119-48061-D0iACU3#,MCU30,35200401-200407

main52119-48120-A0iMCU30,35; MCU31,36200302-200306

main52119-48120-B0iMCU30,35; MCU31,36200302-200306

main52119-48120-B1iMCU30,35; MCU31,36200302-200306

main52119-48120-C0iMCU30,35; MCU31,36200302-200306

main52119-48120-E0iMCU30,35; MCU31,36200302-200306

main52119-48120-J0iMCU30,35; MCU31,36200302-200306

main52119-48120-J1iMCU30,35; MCU31,36200302-200306

main52119-48120-J2iMCU30,35; MCU31,36200302-200306

main52119-48121-A0iGSU30,35; GSU31,36200601-200812

main52119-48121-A2iGSU30,35200604-200701

main52119-48121-B0iMCU30,35; MCU31,36200306-200601

main52119-48121-B1iGSU30,35; GSU31,36200601-200812

main52119-48121-B2iGSU30,35; GSU31,36200701-200812

main52119-48121-B3iGSU30,35; GSU31,36200801-200812

main52119-48121-C0iMCU30,35; MCU31,36200306-200601

main52119-48121-E0iMCU30,35; MCU31,36200306-200601

main52119-48121-E1iGSU30,35; GSU31,36200801-200812

main52119-48121-J0iMCU30,35; MCU31,36200306-200601

main52119-48121-J1iMCU30,35; MCU31,36200306-200601

main52119-48121-J2iMCU30,35; MCU31,36200306-200601

main52119-48121-J3iGSU30,35200801-200811

52119CCLIP, FRONT BUMPER COVER

main90467-05114×4iACU3#,MCU3#200302-200601

52119DSCREW, NO.1

main90159-45005×2iACU3#,MCU3#200306-200601

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-48020-A0iACU3#,MCU3#200302-200601

WHITE PEARL CS.,062

main52127-48020-A3iACU3#200812-201207

WHITE PEARL CS.,070

main52127-48020-B0iACU3#,MCU3#200302-200601

SILVER ME.,1C0

main52127-48020-B1iACU3#,GSU3#; GSU31,36200601-200812

main52127-48020-B2iACU3#,GSU3#200701-200812

GRAY ME.,1D2

main52127-48020-B3iACU3#,GSU3#200801-201207

SILVER ME.,1F7

main52127-48020-B5iACU3#200812-201207

GRAY ME.,1G3

main52127-48020-C0iACU3#,MCU3#200302-200601

BLACK,202

main52127-48020-E0iACU3#,GSU3#; GSU31,36200601-200801

main52127-48020-E3iACU3#,GSU3#200801-201207

BEIGE ME.,4T8

main52127-48020-J0iACU3#,MCU3#200302-200601

LT.BLUE ME.,8R6

main52127-48020-J1iACU3#,GSU3#; GSU31,36200601-200812

main52127-48020-J2iACU3#,GSU3#; GSU31,36200601-200801

main52127-48020-J3iACU3#200812-201008

LT.BLUE M.M.,8S7

main52127-48020-J4iACU3#201008-201207

DK.BLUE MC.,8S6

main52127-48020-A2iACU3#,GSU30,35200604-200701

main52127-48020-D0iACU3#,MCU30,35200401-200407

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-48010-A0iACU3#,GSU3#; GSU31,36200601-200812

main52128-48010-A3iACU3#200812-201207

WHITE PEARL CS.,070

main52128-48010-B0iACU3#,MCU3#200302-200601

SILVER ME.,1C0

main52128-48010-B1iACU3#,MCU3#200302-200601

DK.GRAY MC.,1E0

main52128-48010-B2iACU3#,GSU3#200701-200812

GRAY ME.,1D2

main52128-48010-B3iACU3#,GSU3#200801-201207

SILVER ME.,1F7

main52128-48010-B5iACU3#200812-201207

GRAY ME.,1G3

main52128-48010-C0iACU3#,MCU3#200302-200601

BLACK,202

main52128-48010-E0iACU3#,MCU3#200302-200601

BEIGE ME.,4R4

main52128-48010-E3iACU3#,GSU3#200801-201207

BEIGE ME.,4T8

main52128-48010-J0iACU3#,GSU3#200601-200701

LT.BLUE ME.,8R6

main52128-48010-J1iACU3#,GSU3#; GSU31,36200601-200812

main52128-48010-J2iACU3#,GSU3#; GSU31,36200601-200801

main52128-48010-J3iACU3#200812-201008

LT.BLUE M.M.,8S7

main52128-48010-J4iACU3#201008-201207

DK.BLUE MC.,8S6

main52128-48010-A2iACU3#,GSU30,35200604-200701

main52128-48010-D0iACU3#,MCU30,35200408-200601

52131AREINFORCEMENT, FRONT BUMPER

main52131-48050iACU3#,MCU3#200302-200401

main52131-48051iACU3#,MCU3#200402-200601

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-48010iACU3#,MCU3#200302-200601

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-48010iACU3#,MCU3#200302-200601

52161CPIECE, FRONT BUMPER

main52161-16010×3iACU3#,MCU3#200302-200601

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-48020iACU3#,MCU3#200302-200601

main52535-50060iACU3#200907

52536RETAINER, FRONT BUMPER SIDE, LH

main52535-48020iACU3#,MCU3#200302-200601

main52535-50060iACU3#200907

52611ABSORBER, FRONT BUMPER ENERGY

main52611-48030iACU3#,MCU3#200302-200601

52711AGARNISH, FRONT BUMPER

main52711-48010iMCU30,35; MCU31,36200302-200601

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53271CBRACKET, HEADLAMP MOUNTING

main53271-12060×2iACU3#,GSU3#200601

53879HRETAINER, FRONT FENDER LINER

main53879-48030×2iACU3#,MCU3#200306-200601

8102FOG LAMP

→ Go to FIG 81-02

9011906699

main90119-06699

9011910465

main90119-10465

9015950311

main90159-50311

9015960215

main90159-60215

9015960422

main90159-60422

9015960431

main90159-60431

9018306019

main90183-06019

904670908722

main90467-0908722

30 parts on this diagram · 1 diagram in section
