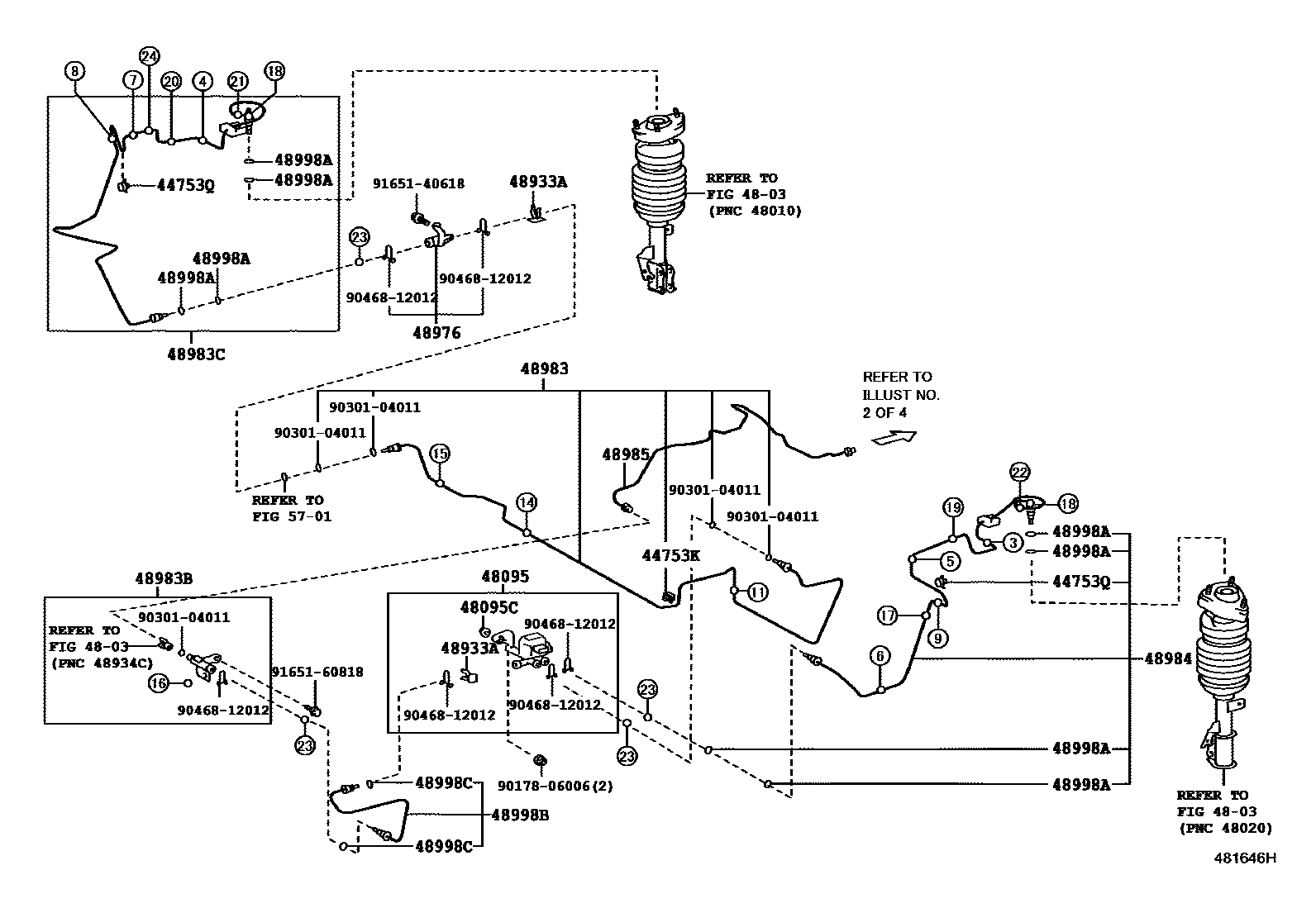

HEIGHT CONTROL (AUTO-LEVELER)

0001 1 0003 1 0005 1 0007 1

44753KCLAMP, HEIGHT CONTROL TUBE NO.8

main44753-50060iMCU31,36200302-200601

44753QCLAMP, HEIGHT CONTROL TUBE NO.13

main44753-48010×2iMCU31,36200302-200601

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48095VALVE SUB-ASSY, HEIGHT CONTROL, NO.1

main48095-48010iMCU31,36200302-200601

48095CBUSH(FOR HEIGHT CONTROL VALVE NO.1)

main90385-09010×2iGSU31,36200601-200812

48933HOLDER, AIR CONNECTOR CLIP

main48933-48010×6iGSU31,36200601-200812

48933AHOLDER, FRONT HEIGHT CONTROL AIR CONNECTOR CLIP

main48933-30010×3iMCU31,36200302-200601

48976WAY, HEIGHT CONTROL

main48976-48020iMCU31,36200302-200601

48983TUBE, HEIGHT CONTROL, NO.3

main48983-48010iMCU31,36200302-200601

48983BWAY, NO.3(FOR FRONT HEIGHT CONTROL TUBE)

main48976-48040iMCU31,36200302-200601

48983CTUBE, HEIGHT CONTROL, FRONT NO.3

main48983-48020iMCU31,36200302-200601

48984TUBE, HEIGHT CONTROL, NO.4

main48984-48010iMCU31,36200302-200601

48985TUBE, HEIGHT CONTROL, NO.5

main48985-48010iMCU31,36200302-200601

48998ARING, O(FOR REAR HEIGHT CONTROL TUBE NO.5)

main90301-04004×8iMCU31,36200302-200601

48998BTUBE, HEIGHT CONTROL, REAR NO.11

main48989-48010iMCU31,36200302-200601

48998CRING, O(FOR REAR HEIGHT CONTROL TUBE NO.11)

main90301-04006×4iMCU31,36200302-200601

5701HOLE PLUG

→ Go to FIG 57-01

9017806006

main90178-06006

9030104011

main90301-04011

9046812012

main90468-12012

9165140618

main91651-40618

9165160818

main91651-60818

22 parts on this diagram · 4 diagrams in section
