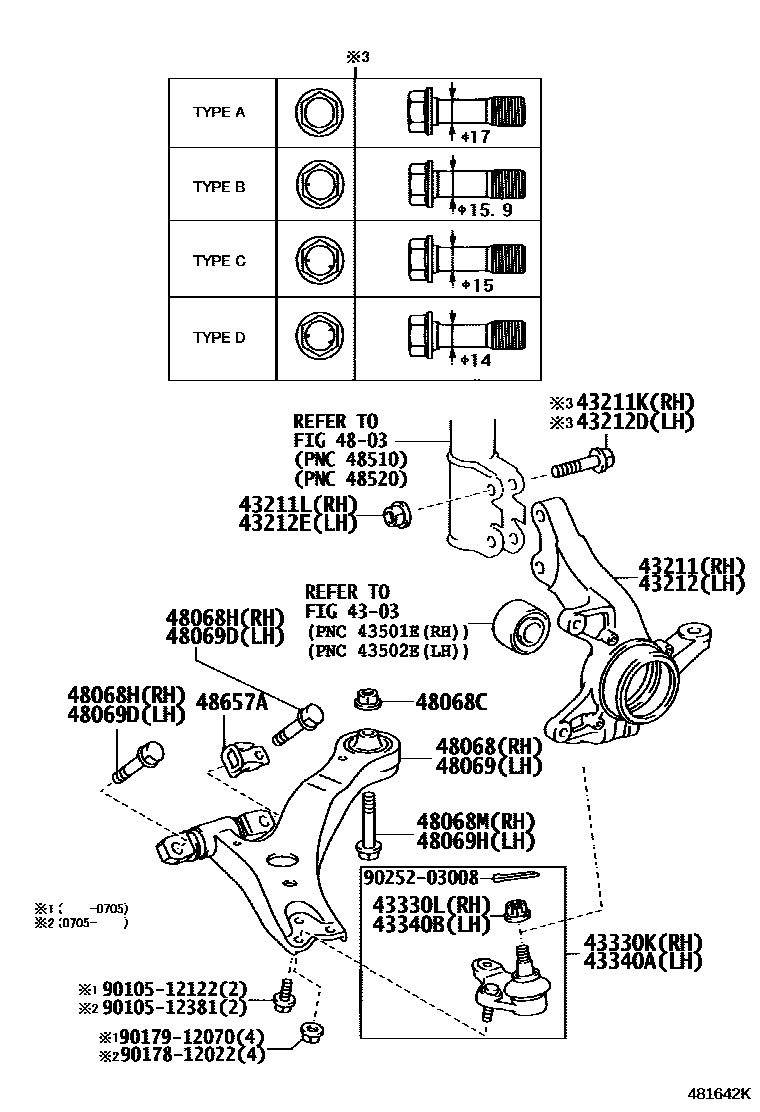

FRONT AXLE ARM & STEERING KNUCKLE

4303

43211KNUCKLE, STEERING, RH

main43211-58020iGSU3#200302-200812

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17012iACU3#200302-200812

main90105-17013iACU3#,MCU3#200302-200812

main90105-17014iGSU3#200302-200812

main90105-17015iGSU3#200302-200812

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002iACU3#,MCU30,35,36200302-200812

43212KNUCKLE, STEERING, LH

main43212-58020iACU3#,MCU3#200302-200812

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17012iACU3#200302-200812

main90105-17013iACU3#200302-200812

main90105-17014iACU3#,MCU3#200302-200812

main90105-17015iGSU3#200302-200812

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002iACU3#200302-200812

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29405iACU3#,GSU3#200302-200705

sub43330-29615

main43330-29615iGSU3#200705-200812

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iACU3#,MCU3#200302-200812

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-29175iACU3#,MCU3#200302-200705

sub43340-29215

main43340-29215iGSU3#200705-200812

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iGSU3#200302-200812

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-48020iACU3#,MCU30,35200302-200812

sub48068-58010

main48068-48030iGSU31,36200302-200812

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90179-14068iACU3#200302-200812

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-16082iGSU3#200302-200812

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14116iACU3#,MCU3#200302-200601

sub90119-14142

main90119-14126iACU3#,GSU3#200601-200903

main90119-14140iACU3#200904-201107

sub90119-14146

main90119-14146iACU3#201108

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-48020iACU3#200302-200812

sub48069-58010

main48069-48030iGSU31,36200302-200812

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-16082iACU3#,MCU3#200302-200812

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14116iACU3#,MCU3#200302-200601

sub90119-14142

main90119-14126iACU3#,GSU3#200601-200903

main90119-14140iACU3#200904-201107

sub90119-14146

main90119-14146iACU3#201108

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-28010iACU3#,MCU3#200302-200812

9010512122

main90105-12122

9010512381

main90105-12381

9017812022

main90178-12022

9017912070

main90179-12070

9025203008

main90252-03008

25 parts on this diagram · 1 diagram in section
