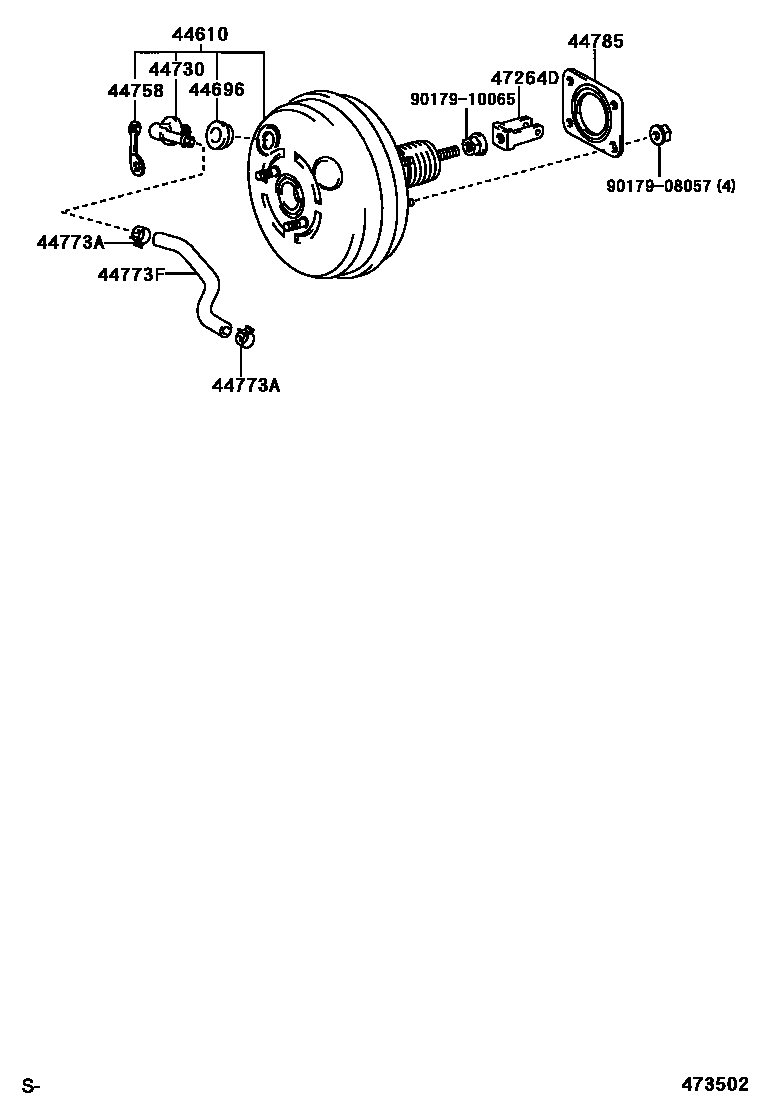

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-48170iACU30200601-200902

main44610-48171iACU30200903-201207

main44610-48180iACU35200302-200601

main44610-48181iACU35200903-201207

main44610-48190iMCU30,31200302-200601

main44610-48191iGSU30,31200601-200812

main44610-48200iMCU35,36200302-200601

main44610-48201iGSU35,36200601-200812

44696GROMMET, CHECK VALVE

main90480-24439iACU3#,MCU3#200302-200601

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iMCU3#200302-200601

main44730-22150iACU3#200601-201207

44758BRACKET, VACUUM CHECK VALVE

main44758-30170iMCU3#200302-200601

44773ACLIP, NO.1(FOR VACUUM HOSE, NO.2)

main90467-16014×2iGSU3#200601-200812

main96133-41500×2iACU3#,MCU3#200302-200601

44773FHOSE, UNION TO CHECK VALVE

main44773-48090iACU3#200302-200601

main44773-48100iMCU3#200302-200601

main44773-48140iGSU3#200601-200812

44785GASKET, BRAKE BOOSTER

main44785-10020iACU3#,MCU3#200302-200601

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iACU3#,MCU3#200302-200601

9017908057

main90179-08057

9017910065

main90179-10065

10 parts on this diagram · 3 diagrams in section
