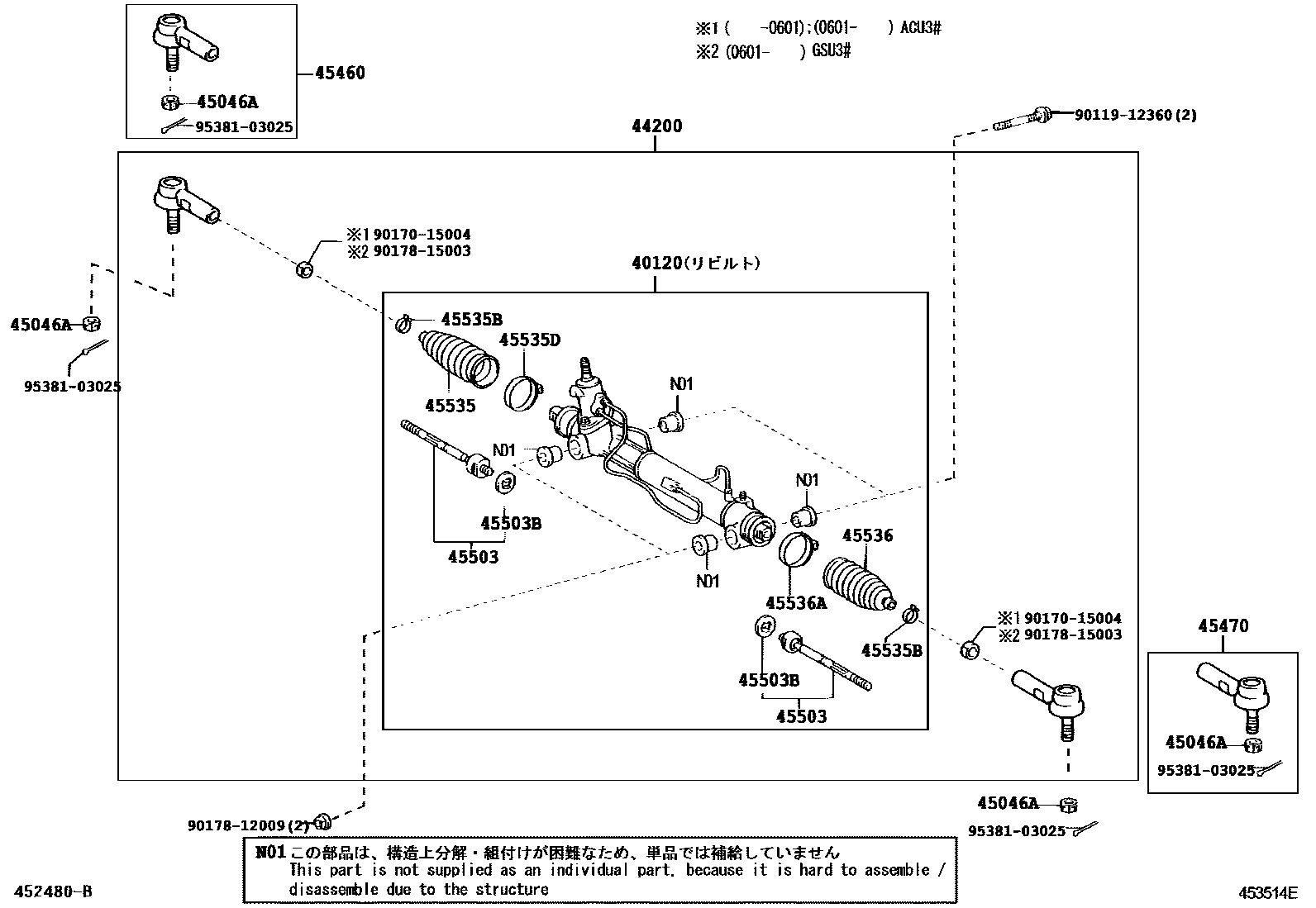

FRONT STEERING GEAR & LINK

0001 1 0002 1

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-48080iACU3#,MCU3#200302-200601

main40120-48110iGSU3#200601-200812

44200LINK ASSY, POWER STEERING

main44200-48080iACU3#200601-201207

main44200-48150iGSU3#200601-200812

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iACU3#,MCU3#200302-200601

45460ROD ASSY, TIE, RH

main45460-29435iACU3#,MCU3#200302-200311

main45460-49075iGSU3#200706-200812

45470ROD ASSY, TIE, LH

main45460-29435iACU3#,MCU3#200302-200311

main45460-49075iGSU3#200706-200812

45503END SUB-ASSY, STEERING RACK

main45503-49125×2iACU3#200601

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14007×2iACU3#,MCU3#200302-200601

45535BOOT, STEERING RACK, NO.1

main45535-08010iACU3#,MCU3#200302-200308

main45535-0E010iACU3#200601

main45535-48020iGSU3#200601-200812

45535BCLIP(FOR STEERING RACK BOOT)

main90080-46153×2iACU3#,MCU3#200302-200601

main90467-19017×2iACU3#,MCU3#200302-200601

main90467-19021×2iGSU3#200601-200812

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-60007iACU3#,MCU3#200302-200601

45536BOOT, STEERING RACK, NO.2

main45535-08010iACU3#,MCU3#200302-200308

main45535-0E010iGSU3#200601-200812

main45535-48020iGSU3#200601-200812

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-60007iACU3#,GSU3#200601-201207

9011912360

main90119-12360

9017015004

main90170-15004

9017812009

main90178-12009

9017815003

main90178-15003

9538103025

main95381-03025

17 parts on this diagram · 2 diagrams in section
