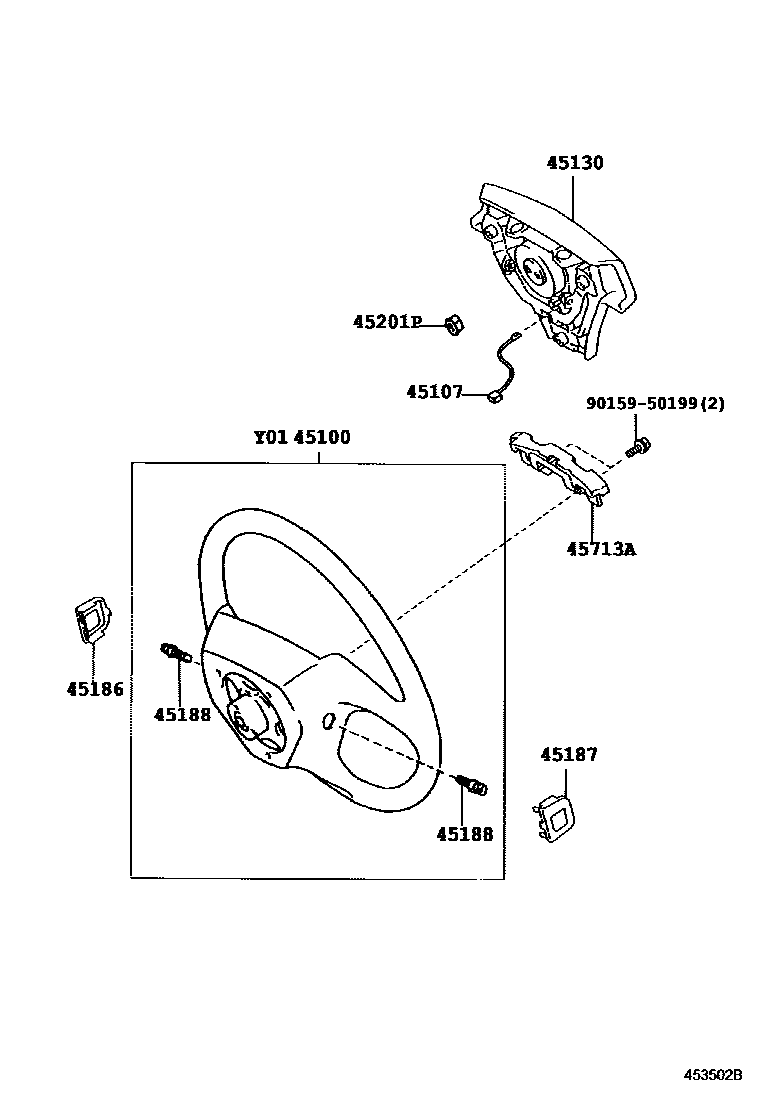

STEERING WHEEL

0001 13-SPOKE 0002 13-SPOKE,��(������� �-���� ���

45100WHEEL ASSY, STEERING

main45100-48270-C0iACU3#,MCU30,35200302-200307

main45100-48280-C0iGSU30,35; GSU31,36200601-200812

main45100-48280-E0supersedes 45100-48380-E0iACU3#; MCU30,35; MCU31,36200302-200601

main45100-48380-C0iACU3#,GSU30,35200601-201207

main45100-48380-E0iACU3#,GSU30,35200601-201207

main45100-48281-C0iACU3#201202-201207

main45100-48281-E0iACU3#201202-201207

45107WIRE SUB-ASSY, HORN BUTTON

main45107-48010iACU3#,MCU30,35200302-200601

45130BUTTON ASSY, HORN

main45130-48090-C0supersedes 45130-48080-C0iACU3#; ACU3#,MCU30,35; MCU30,35; MCU31,36200302-200601

main45130-48090-E0supersedes 45130-48080-E0iACU3#; ACU3#,MCU30,35; MCU30,35; MCU31,36200302-200601

main45130-48080-C0iACU3#; ACU3#,GSU30,35200601-201207

main45130-48080-E0iACU3#201110-201207

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-48010-C0iACU3#,GSU3#200601-201207

BLACK,TRIM1#,2#

main45186-48010-E0iACU3#,MCU3#200302-200601

SANDAL WOOD,TRIM0#

main45186-48020-C0iGSU30,35; GSU31,36200601-200812

main45186-48020-E0iGSU30,35; GSU31,36200601-200812

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-48020-C0iACU3#,MCU3#200302-200601

BLACK,TRIM1#,2#

main45187-48020-E0iACU3#,GSU3#200601-201207

SANDAL WOOD,TRIM0#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2iACU3#,GSU3#200601-201207

45201PNUT, STEERING WHEEL SET

main90179-12071iACU3#,MCU3#200302-200601

45713ADAMPER, STEERING SHAKE

main45713-48060iGSU3#200601-200812

9015950199

main90159-50199

9 parts on this diagram · 2 diagrams in section
