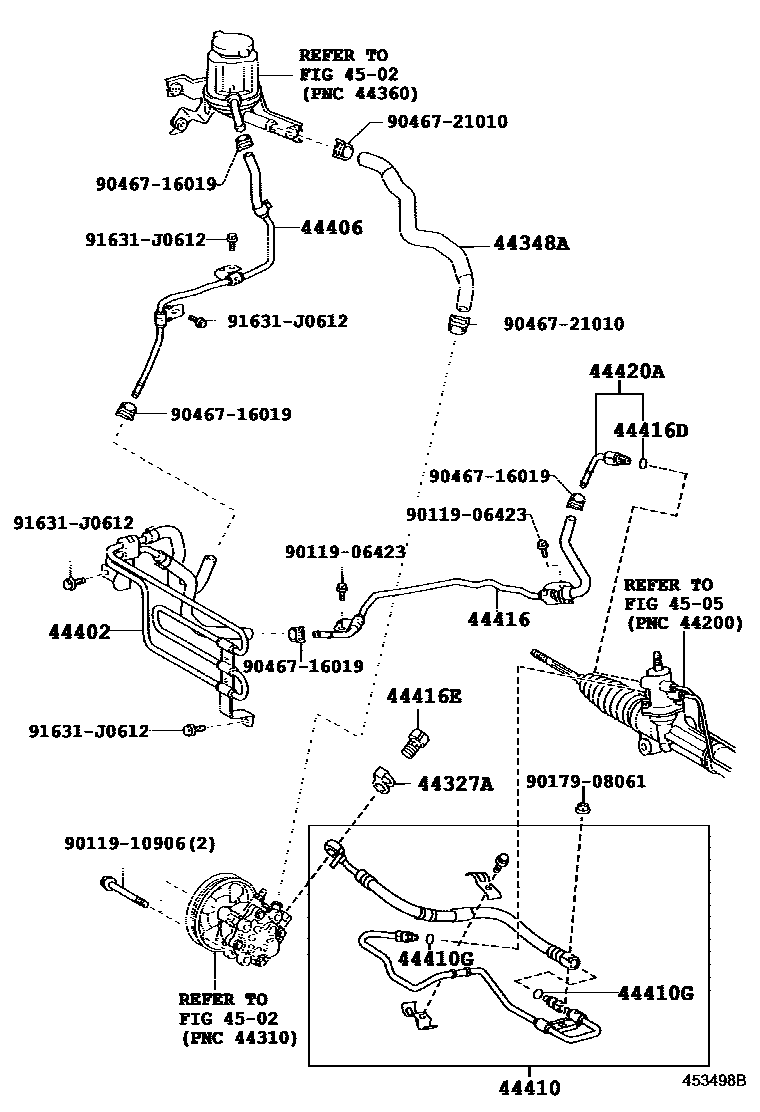

POWER STEERING TUBE

0001 1 0002 1 0003 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iGSU3#200601-200812

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-48070iACU3#200601-201207

main44348-48080iMCU3#200302-200601

main44348-48090iGSU3#200601-200812

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-48041iACU3#,MCU3#200302-200601

main44402-48050iGSU3#200601-200812

44406TUBE SUB-ASSY, RETURN

main44406-48100iACU3#,MCU3#200302-200601

main44406-48130iGSU3#200601-200812

44410TUBE ASSY, PRESSURE FEED

main44410-48110iMCU3#200302-200309

main44410-48111iMCU3#200309-200601

main44410-48130iACU3#200601

main44410-48170iGSU3#200601-200812

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009×2iACU3#,MCU3#200302-200601

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-48051iACU3#200601-200608

main44416-48052iACU3#200609

main44416-48100iGSU3#200601-200608

main44416-48101iGSU3#200609-200812

44416DRING, O(FOR RETURN TUBE)

main90301-07009iACU3#,GSU3#200601

44416EBOLT, UNION(FOR RETURN TUBE)

main96341-41603iACU3#200601

44420ATUBE ASSY, RETURN

main44420-48020iACU3#200601

main44420-48070iGSU3#200601-200812

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9011906423

main90119-06423

9011910906

main90119-10906

9017908061

main90179-08061

9046716019

main90467-16019

9046721010

main90467-21010

91631J0612

main91631-J0612

18 parts on this diagram · 3 diagrams in section
