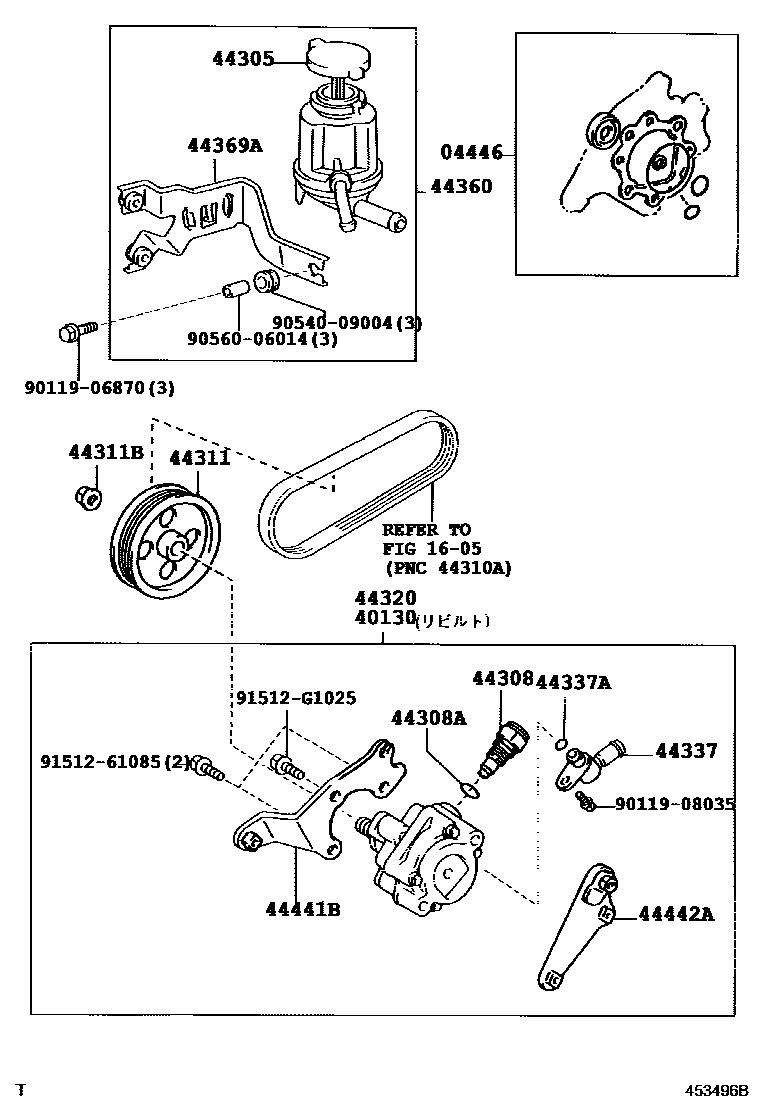

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iACU3#200302-200812

main04446-53030iMCU3#200302-200601

1605

40130PUMP ASSY,VANE REBUILT

main40130-48050iACU3#200601-201207

sub44310-48050

main40130-48050iACU3#200302-200601

sub44310-48050

main40130-48070iGSU3#200601-200812

sub44310-48070

main40140-48040iMCU3#200302-200311

sub44320-48040

main40140-48040iMCU3#200311-200601

sub44320-48040

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iACU3#,MCU3#200302-200801

sub44305-28060

main44305-28060iACU3#,GSU3#200802-201206

sub44305-28061

44308UNION SUB-ASSY, PRESSURE PORT

main44308-32150iMCU3#200302-200601

44308ARING, O(FOR PRESSURE PORT UNION)

main90301-19018iMCU3#200302-200601

44311PULLEY, VANE PUMP

main44311-28110iMCU3#200302-200601

44311BNUT(FOR VANE PUMP PULLEY)

main90178-12003iMCU3#200302-200601

44320PUMP ASSY, VANE

main44320-48040iMCU3#200302-200601

44337UNION, POWER STEERING SUCTION PORT

main44337-48010iACU3#200302-200601

main44337-48020iMCU3#200302-200601

main44337-48030iGSU3#200601-200812

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iMCU3#200302-200601

main90301-11020iGSU3#200302-200812

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-48040iACU3#,MCU3#200302-200812

44369ABRACKET, OIL RESERVOIR, NO.1

main44369-48040iACU3#,MCU3#200302-200812

44441BBRACKET, PUMP, FRONT

main44441-28020iMCU3#200302-200601

44442ABRACKET, VANE PUMP, REAR

main44442-33021iMCU3#200302-200601

9011906870

main90119-06870

9011908035

main90119-08035

9054009004

main90540-09004

9056006014

main90560-06014

9151261085

main91512-61085

91512G1025

main91512-G1025

21 parts on this diagram · 2 diagrams in section
