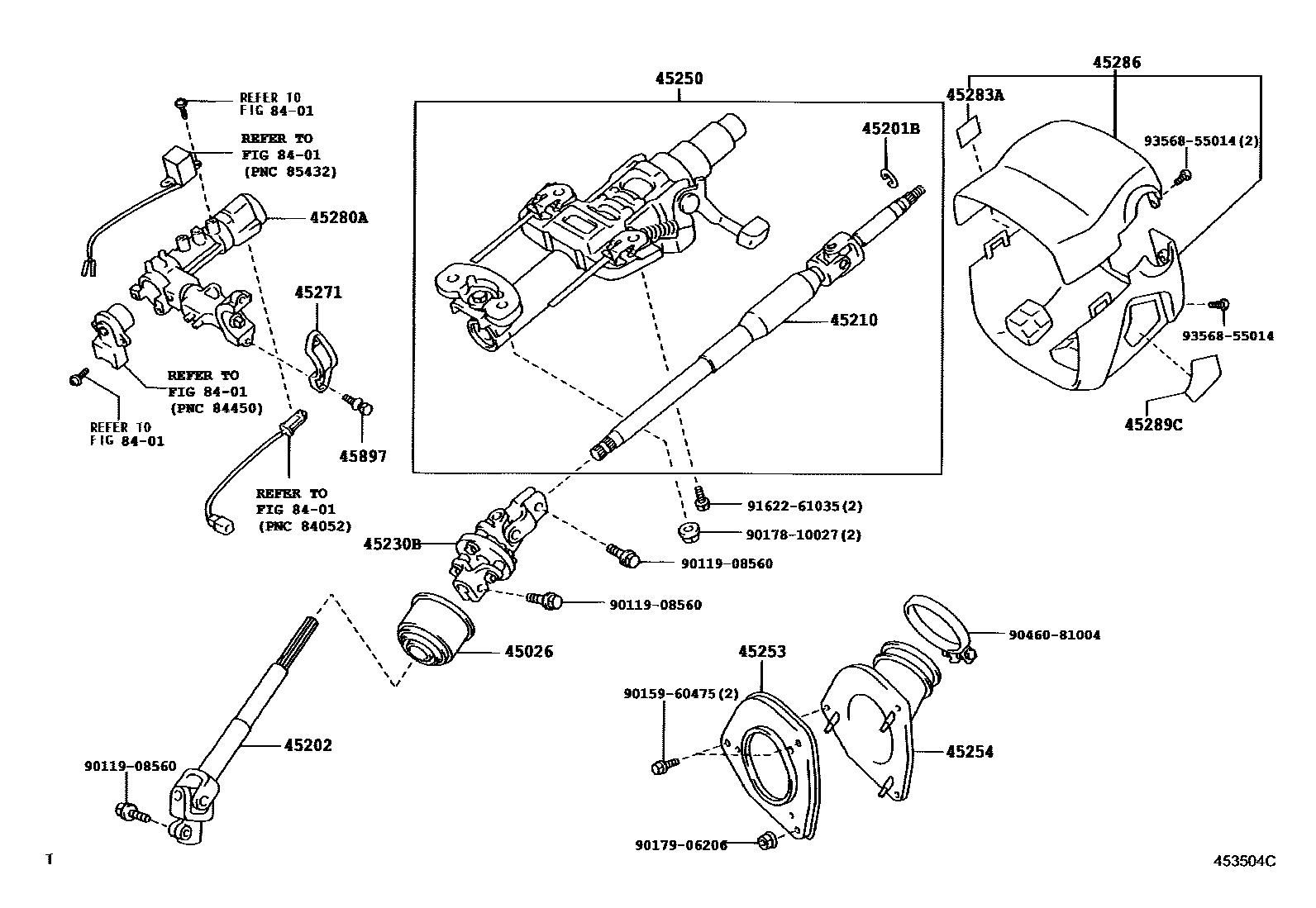

STEERING COLUMN & SHAFT

0001 1��(��� �������) 0002 1��(��� & �������� �������)

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-48011iACU3#,MCU3#200302-200601

main45026-48050iACU3#200601

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17004iACU3#,MCU30,35200302-200601

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45202-48050iACU3#,MCU3#200302-200601

45210SHAFT ASSY, STEERING MAIN

main45210-48020iGSU30,35200601-200812

45230BJOINT ASSY, STEERING SHAFT UNIVERSAL

main45230-48050iGSU3#200601-200812

45250COLUMN ASSY, STEERING

main45250-48030iGSU30,35; GSU31,36200601-200812

main45250-48050iACU3#,GSU30,35200601

45253COVER, STEERING COLUMN HOLE

main45253-48030iACU3#,MCU3#200302-200601

45254SHIELD, STEERING COLUMN HOLE

main45254-48030iACU3#,MCU3#200302-200601

45271CLAMP, STEERING COLUMN, UPPER

main45271-12060iGSU30,35200601-200812

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-48030iACU3#,MCU30,35200302-200601

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iACU3#,MCU3#200302-200601

45286COVER, STEERING COLUMN

main45286-48901-C0iACU3#,MCU30,35200302-200601

BLACK,TRIM1#,2#

main45286-48901-E0iACU3#,MCU30,35200302-200601

SANDAL WOOD,TRIM0#

main45286-48903-C0iACU3#; MCU30,35; MCU31,36200302-200601

main45286-48903-E0iACU3#; MCU30,35; MCU31,36200302-200601

45289CCOVER, STEERING COLUMN, LWR NO.2

main45289-48010-C0iACU3#,MCU30,35200302-200601

BLACK,TRIM2#

main45289-48010-E0iACU3#,GSU30,35200601-201207

SANDAL WOOD,TRIM0#

45897BOLT, STEERING LOCK SET

main45897-12020×2iACU3#,MCU3#200302-200601

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9015960475

main90159-60475

9017810027

main90178-10027

9017906206

main90179-06206

9046081004

main90460-81004

9162261035

main91622-61035

9356855014

main93568-55014

22 parts on this diagram · 2 diagrams in section
