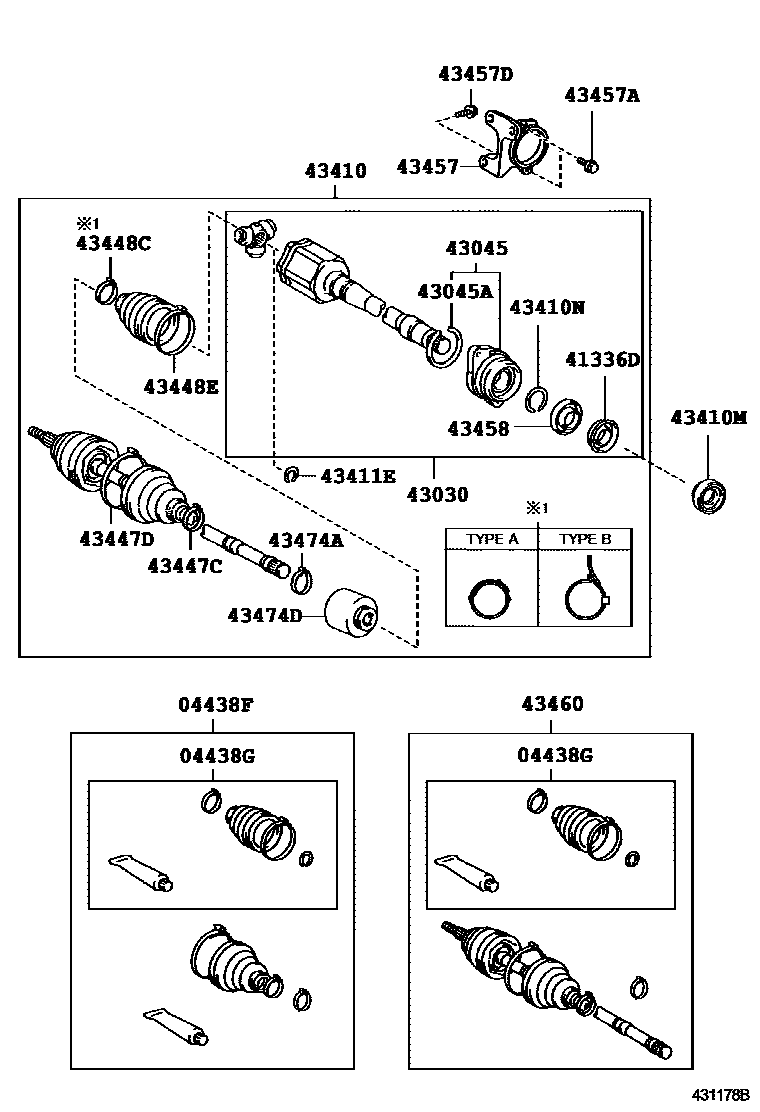

FRONT DRIVE SHAFT

0001 1��� 0002 1��� 0003 1��� 0004 1��� 0005 1��� 0006 1��� 0007 1��� 0008 1��� 0009 1���

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04428-58030iACU3#,MCU35,36200411-200601

sub04428-42070

main04428-58060iMCU30,31200411-200601

main04438-08080iGSU30,31200601-200812

main04438-0E040iGSU35,36200601-200812

main04438-28052iACU3#,MCU35,36200302-200411

sub04428-42070

main04438-44051iMCU30,31200302-200411

sub04438-44052

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-08010iGSU30,31200601-200812

main04438-08030iGSU35,36200601-200812

main04438-28041iACU3#,MCU3#200302-200411

main04438-58020iACU3#200601

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06020iGSU30,31200601-200812

main41336-12020iACU30,MCU30,31200302-200601

main41336-21010iACU35,MCU35,36200302-200601

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-08040iGSU30,31200601-200812

main43030-0E010iGSU35,36200601-200812

main43030-28011iACU30200302-200601

main43030-33041iMCU30,31200302-200601

main43030-42021iACU35200601-201207

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-20050iACU30200302-200601

main43045-64020iACU30200601

43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)

main90520-69002iACU30200302-200601

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0E011iGSU35,36200601-200812

main43410-0E020iGSU30,31200601-200812

main43410-33230iMCU30,31200302-200601

main43410-48050iMCU35,36200302-200601

main43410-48061iACU35200302-200601

main43410-48071iACU30200601-201207

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40026iACU30200302-200510

sub90311-40041

main90311-40028iMCU30,31200302-200511

main90311-40029iMCU30,31200511-200601

sub90311-40038

main90311-40031iACU30200601-201207

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-08060iGSU35,36200601-200812

main90080-52013iGSU30,31200601-200812

main90520-38015iACU30200601

main90521-26004iACU35200601

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-08040iGSU30,31200601-200812

main43425-28010iACU3#,MCU3#200302-200601

main90080-52118iGSU35,36200601-200812

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04030iGSU3#200601-200812

main42345-20020iACU3#,MCU35,36200302-200601

main42345-20040iACU3#200601

sub42345-42100

main42345-48010iMCU30,31200302-200601

sub42345-48030

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04040iGSU30,31200601-200812

main42345-06080iGSU35,36200601-200812

main42345-28010iACU3#,MCU35,36200302-200601

main42345-28020iACU3#200601

sub42345-42090

main42345-44010iMCU30,31200302-200601

sub42345-44020

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-07020iGSU35,36200601-200812

main42345-08070iGSU30,31200601-200812

main42345-42010iACU3#,MCU3#200302-200601

main90949-01559iACU3#,MCU3#200302-200601

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-07010iGSU35,36200601-200812

main42345-08060iGSU30,31200601-200812

main42345-12160iACU3#,MCU3#200302-200601

43457BRACKET, DRIVE SHAFT BEARING

main43457-28020iACU30200302-200601

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10285×2iACU30200302-200601

main90105-10361×2iACU30200601

main90119-10461iMCU30,31200302-200601

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3iACU30200302-200601

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06020iGSU30,31200601-200812

main43458-08010iGSU35,36200601-200812

main43458-12010iACU30,MCU30,31200302-200601

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09A30iGSU30,31200601-200812

main43460-09A40iGSU35,36200601-200812

main43460-39156iMCU30,31200302-200411

main43460-49275iMCU30,31200411-200601

main43470-29626iACU30200302-200411

main43470-29885iACU30200411-200601

main43470-29895iACU35200601

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iACU3#200601

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-48020iACU3#200601

sub43474-48080

21 parts on this diagram · 9 diagrams in section
