DISC WHEEL & WHEEL CAP

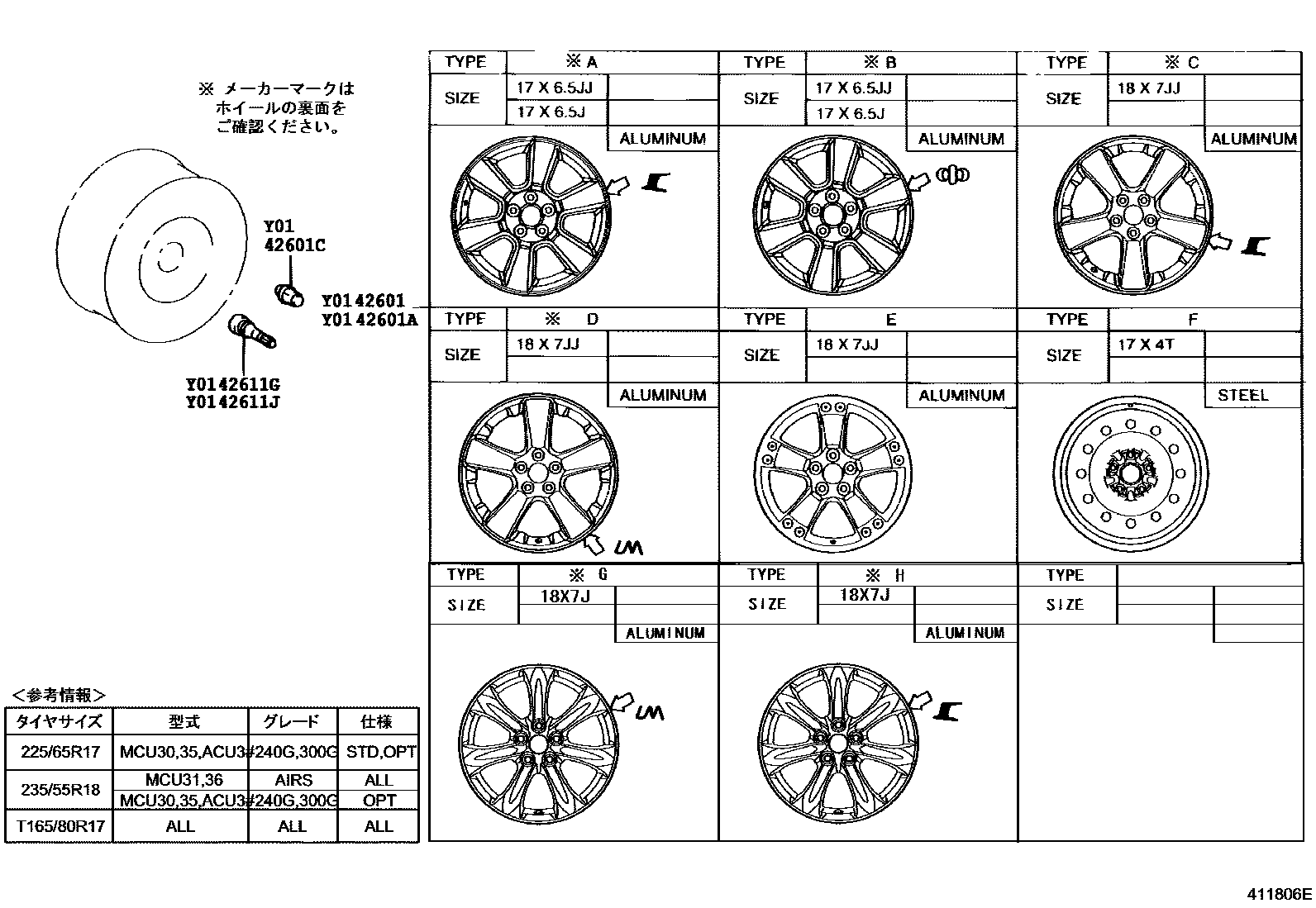

Parts diagram

42601WHEEL, DISC

main42611-48180×4i200302-200408

main42611-48190×4i200302-200408

main42611-48330×4i200409-200508

main42611-48340×4i200409-200601

main42611-48400×4i200508-200601

main42611-48220×4i200302-200403

main42611-48221×4supersedes 42611-48241i200404-200601

main42611-48230×4i200302-200403

main42611-48231×4i200404-200601

main42611-48232×4supersedes 42611-48610i200601-200612

main42611-48250×4i200302-200408

main42611-48260×4i200302-200408

main42611-48350×4i200409-200601

main42611-48351×4i200807-201207

main42611-48360×4i200409-200601

main42611-48361×4i200601-200807

main42611-48580×4i200807-201008

main42611-48610×4i200812-200907

42601AWHEEL, DISC (FOR SPARE)

main42611-50090i200601-201207

main42611-48180i200302-200408

main42611-48190i200302-200408

main42611-48220i200302-200403

main42611-48221i200404-200601

main42611-48230i200302-200403

main42611-48231i200404-200601

main42611-48232i200601-200612

main42611-48240i200302-200403

main42611-48241i200404-200601

main42611-48242i200601-200612

main42611-48250i200302-200408

main42611-48260i200302-200408

main42611-48330i200409-200508

main42611-48331i200601-201008

main42611-48340i200409-200601

main42611-48341i200601-201008

main42611-48350i200409-200601

main42611-48351i200601-200812

main42611-48360i200409-200601

main42611-48361i200807-201008

main42611-48400i200508-200601

main42611-48580i200612-200812

main42611-48610i200612-200812

42601CNUT, HUB (FOR AXLE)

main90942-01033×20i200601

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4i200601

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i200601-201207

5 parts on this diagram · 3 diagrams in section
