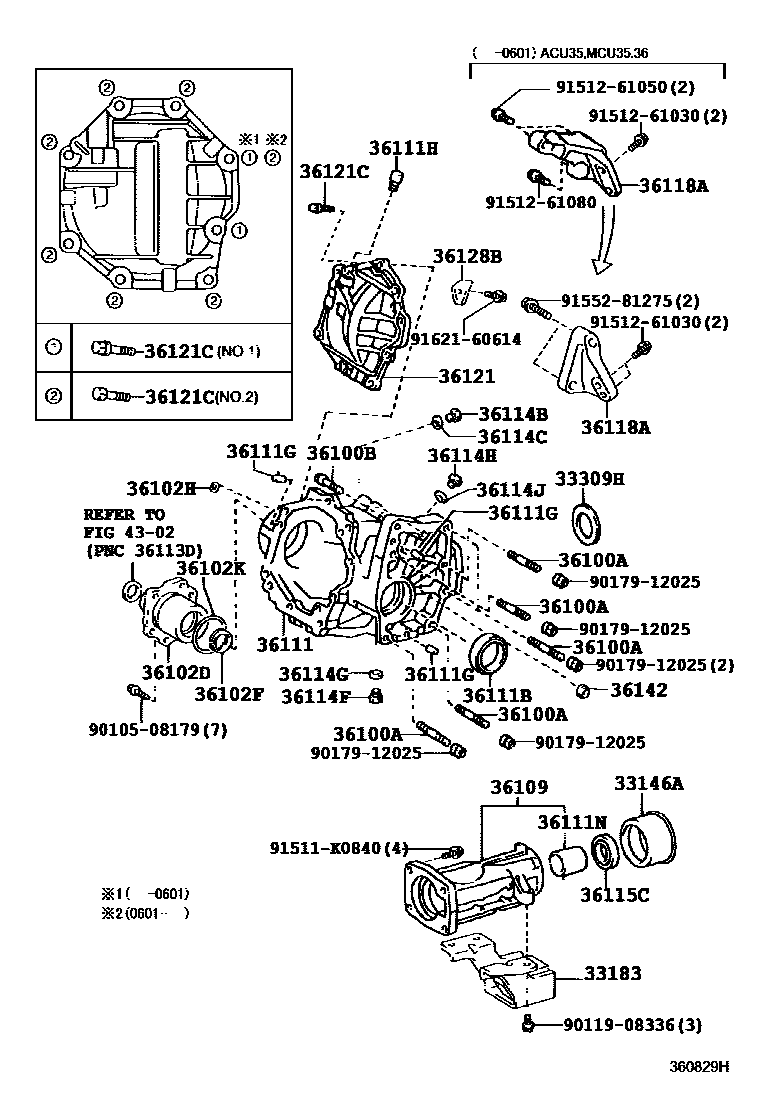

TRANSFER CASE & EXTENSION HOUSING

33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST

main33146-30020iACU35,MCU35,36200302-200601

33183DAMPER, TRANSFER DYNAMIC

main33183-33010iACU35,MCU35,36200302-200601

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-21010iGSU35,36200601-200812

main36275-21030iACU35,MCU35,36200302-200601

main36275-21050iGSU35,36200601-200812

main36275-21070iACU35,MCU35,36200302-200601

main36275-21090iACU35,MCU35,36200302-200601

main36275-21110iGSU35,36200601-200812

main36275-21130iACU35,MCU35,36200302-200601

main36275-21150iACU35200601

main36275-21170iACU35,MCU35,36200302-200601

main36275-21190iACU35200601

main36275-21210iACU35,MCU35,36200302-200601

main36275-21230iGSU35,36200601-200812

main36275-21250iGSU35,36200601-200812

main36275-21270iACU35200601

main36275-21290iGSU35,36200601-200812

main36275-21310iGSU35,36200601-200812

main36275-21330iACU35,MCU35,36200302-200601

main36275-21350iACU35200601

main36275-21370iACU35,MCU35,36200302-200601

main36275-21390iACU35,MCU35,36200302-200601

main36275-21410iGSU35,36200601-200812

main36275-21430iGSU35,36200601-200812

main36275-21450iACU35,MCU35,36200302-200601

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90116-12033×4iACU35,GSU35,36200601-201207

main90116-12034×2iACU35,MCU35,36200302-200601

main90116-12052×2iACU35,GSU35,36200811-201207

36100BBOLT (FOR TRANSFER & TRANSAXLE SETTING)

main90105-12228×2iACU35,GSU35,36200601-201207

36102DRETAINER SUB-ASSY, TRANSFER RH BEARING

main36102-48010iGSU35,36200601-200812

36102FSEAL, OIL, NO.2 (FOR TRANSFER RH BEARING RETAINER)

main90316-37001iGSU35,36200601-200812

36102HRING, O (FOR TRANSFER RH BEARING RETAINER)

main90301-11018iACU35,MCU35,36200302-200601

36102KRING, O

main90301-70002iACU35,MCU35,36200302-200601

36109HOUSING SUB-ASSY, TRANSFER EXTENSION

main36109-33010iACU35,MCU35,36200302-200601

36111CASE, TRANSFER

main36111-48030iACU35,MCU35,36200302-200511

main36111-48031iACU35,MCU35,36200511-200601

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-58009iACU35,MCU35,36200302-200601

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-08030×2iACU35; MCU35,36200302-200406

main90250-08046×2iACU35,MCU35,36200406-200601

main90250-10017×2iACU35,MCU35,36200302-200601

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03133iACU35,MCU35,36200302-200601

36111NBUSH (FOR TRANSFER CASE)

main90384-38004iACU35,MCU35,36200302-200601

main90999-73105iGSU35,36200601-200812

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18055iACU35,GSU35,36200601-201105

main90341-18072iACU35201105

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main12157-10010iACU35,MCU35,36200302-200601

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18057iACU35,MCU35,36200302-200601

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main12157-10010iACU35,MCU35,36200302-200601

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-18006iACU35,MCU35,36200302-200601

36114JGASKET, NO.2 (FOR TRANSFER CASE)

main12157-10010iACU35,MCU35,36200302-200601

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-38062iACU35; MCU35,36200302-200409

main90311-38090iGSU35,36200601-200812

36118APLATE, TRANSFER STIFFENER, RH

main36118-33020iACU35,MCU35,36200302-200601

main36118-45010iGSU35,36200601-200812

36121COVER, TRANSFER CASE, NO.1

main36121-48010iGSU35,36200601-200812

36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)

main90105-08351×2iACU35,MCU35,36200302-200601

main91511-J0820×7iGSU35,36200601-200812

36128BDEFLECTOR, BREATHER OIL

main36128-21010iACU35,MCU35,36200302-200601

36142GASKET, TRANSFER COVER

main36141-21010iACU35,MCU35,36200302-200601

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

9010508179

main90105-08179

9011908336

main90119-08336

9017912025

main90179-12025

91511K0840

main91511-K0840

9151261030

main91512-61030

9151261050

main91512-61050

9151261080

main91512-61080

9155281275

main91552-81275

9162160614

main91621-60614

37 parts on this diagram · 1 diagram in section
