TRANSFER ASSEMBLY & GASKET KIT

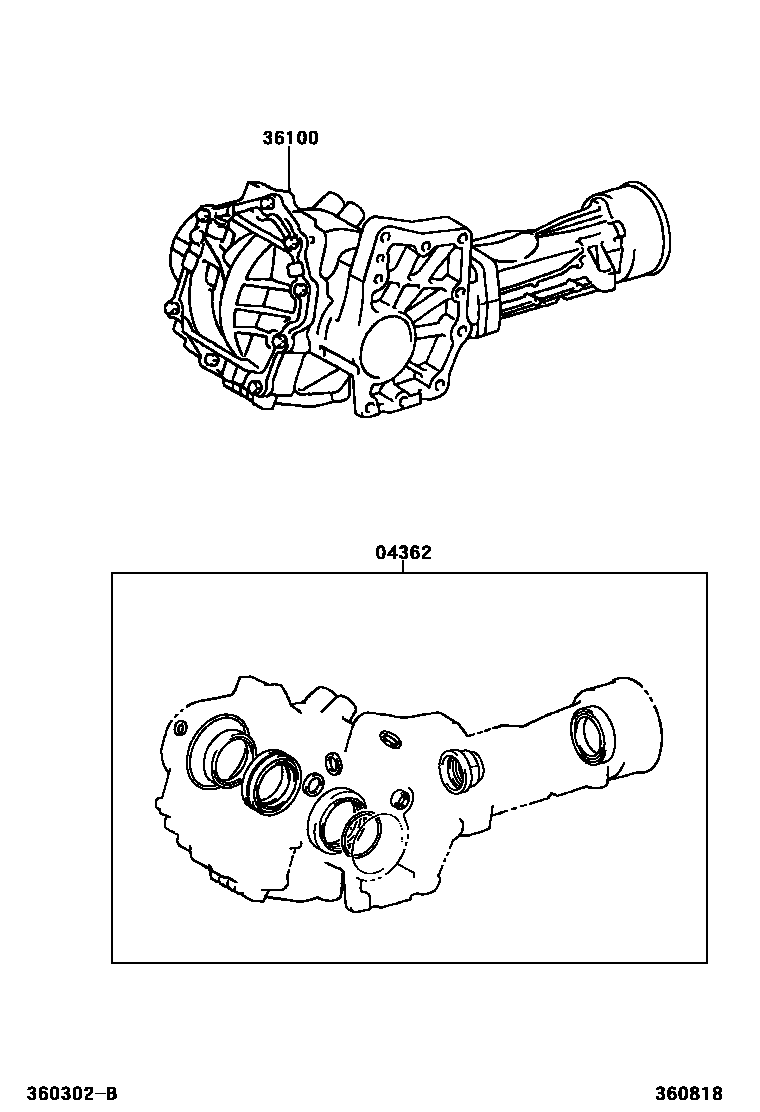

Parts diagram

04362GASKET KIT, TRANSFER OVERHAUL

main04362-21030i200302-200409

main04362-48010i200409-200601

36100TRANSFER ASSY

main36100-45010i200302-200401

main36100-45011i200401-200511

main36100-45012i200511-200601

main36100-48020i200302-200511

main36100-48021i200511-200601

2 parts on this diagram · 1 diagram in section
