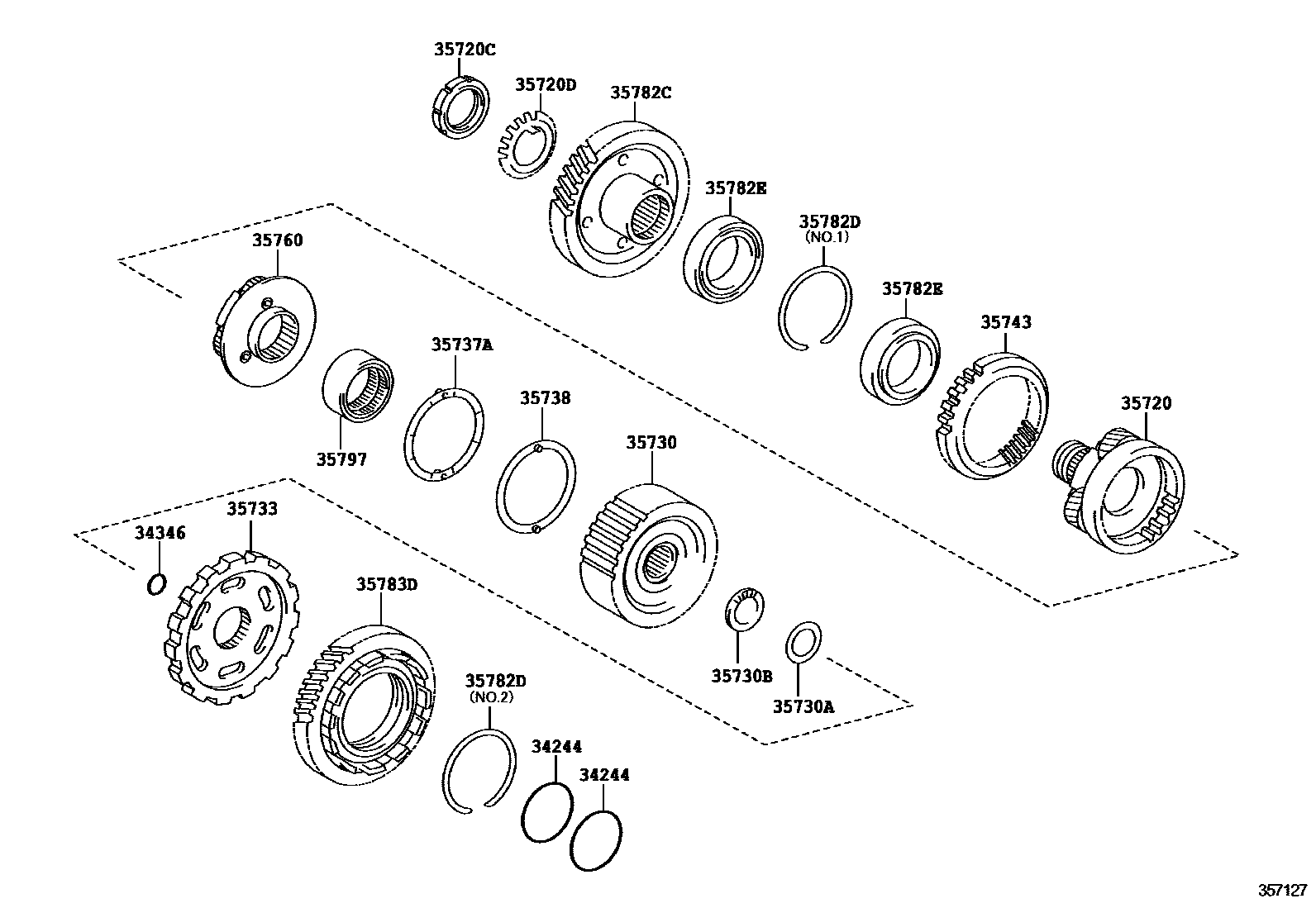

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1U241E,U140F 0002 1U151E,U151F

34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL

main34244-21010×2iACU3#; MCU3#200302-200601

34346RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL

main34346-21011iACU30200601

main34346-28010iACU35; MCU3#200302-200601

35720GEAR ASSY, FRONT PLANETARY

main35720-28070iGSU3#200601-200812

main35720-28080iACU30201008

main35720-44010iACU30200601-201008

35720CNUT (FOR FRONT PLANETARY GEAR)

main90179-46001iACU3#,GSU3#200601

35720DWASHER (FOR FRONT PLANETARY GEAR)

main90209-46001iACU3#,MCU3#200302-200601

35730GEAR ASSY, REAR PLANETARY SUN

main35730-21010iACU30200601-201008

main35730-28020iACU35200302-200601

main35730-33010iMCU3#200302-200601

main35730-33011iGSU3#200601-200812

35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)

main35788-33010iGSU3#200601-200812

main35789-21010iACU3#200601

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90374-31007iMCU3#200302-200601

main90374-33003iACU3#200601-201207

main90374-55002iMCU3#200302-200601

main90374-55003iGSU3#200601-200812

35733GEAR, PARKING LOCK

main35733-32040iACU30200302-200601

main35733-48010iACU35,MCU3#200302-200601

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-21010iACU30200601-201008

main35737-28010iACU35200601

main35737-28020iMCU3#200302-200601

main35737-42010iGSU3#200601-200812

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35737-21010iACU30200407-200601

main35737-28020iACU30200302-200407

main35738-33030iMCU3#200302-200601

35743GEAR, FRONT PLANETARY RING

main35743-21010iACU30200407-200601

main35743-28010iACU30200302-200407

35760GEAR ASSY, REAR PLANETARY

main35760-28010iACU30200302-200407

main35760-33030iACU30200601-201008

main35760-33040iMCU3#200302-200601

main35760-42010iGSU3#200601-200812

35782CGEAR, COUNTER DRIVE

main35782-28010iACU35200302-200601

main35782-28020iACU30200302-200407

main35782-32031iACU30200601-201008

main35782-33020iGSU3#200601-200812

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-84001iACU3#200601

main90520-87004iMCU3#200302-200601

main90520-89002iACU30200302-200407

main90520-89004iACU30200407-200601

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90366-59001iMCU3#200302-200601

main90366-60009×2iACU30; ACU35200601

main90369-59001×2iACU30200407-200601

35783DGEAR, COUNTER DRIVEN

main35783-28010iACU35200601

main35783-28020iACU30201008

main35783-32031iACU30200407-200502

main35783-33030iMCU3#200302-200601

main35783-33040iACU30200502-200601

35797RACE, 1 WAY CLUTCH INNER

main35797-21010iACU3#,MCU3#200302-200601

18 parts on this diagram · 2 diagrams in section
