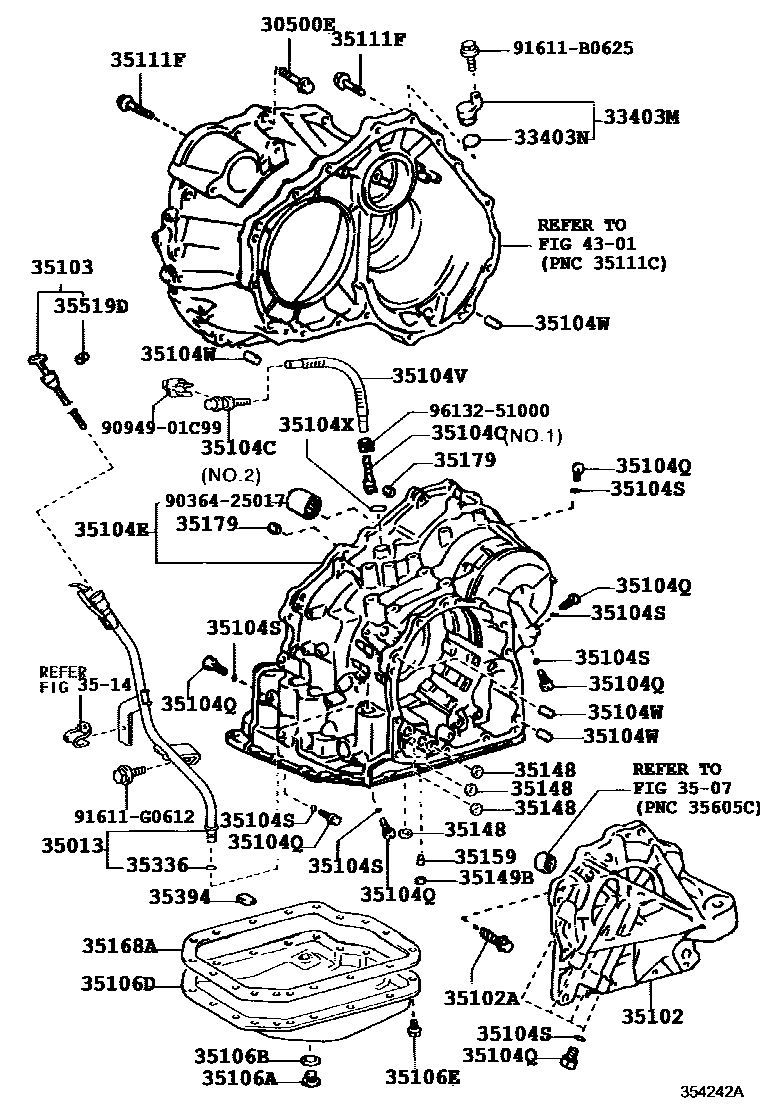

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U151E,U151F 0002 1U151E,U151F 0003 1U241E,U140F 0004 1U241E,U140F

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10410iMCU30,31200302-200601

main90105-10425iMCU35,36200302-200601

main90119-12168×3iACU3#200601

main90119-12250iGSU3#200601-200812

main91512-61050iACU3#200601

main91512-61065iACU3#200601

main91619-61265iGSU3#200601-200812

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230iACU30200302-200601

main33403-21020iACU35,MCU3#200302-200601

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24018iACU30200302-200601

main96711-24020iACU35200601

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-48080iMCU3#200302-200601

main35013-48100iACU3#200601-201207

main35013-48120iGSU3#200601-200812

3507BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

→ Go to FIG 35-07

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-28010iACU35200601

main35102-28020iACU30200302-200407

main35102-33020iACU30200601-201008

main35102-33030iGSU3#200601-200812

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08071×11iACU3#; MCU3#200302-200601

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-48050iACU35200302-200601

main35103-48060iACU30200302-200601

main35103-48070iMCU3#200302-200601

main35103-48090iGSU3#200601-200812

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03149iMCU3#200302-200601

main90930-03157iACU3#,MCU3#200302-200601

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-28081iACU35200601-200704

main35104-28082iACU35200704-201003

main35104-28083iACU35201003-201207

main35104-28091iACU30200302-200407

main35104-28092iACU30200901-201003

main35104-28093iACU30201008-201207

main35104-33041iGSU3#200601-200704

main35104-33042iGSU3#200704-200812

main35104-33070iACU30200407-200601

main35104-33090iACU30200601-200612

main35104-33091iACU30200612-201002

main35104-33092iACU30201002-201008

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×10iACU3#; MCU3#200302-200601

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×8iACU3#; MCU3#200302-200601

35104VHOSE (FOR BREATHER PLUG)

main35121-28011iGSU3#200601-200812

main35121-48020iACU3#200302-200304

main35121-48021iACU30200304-200407

main35121-48030iMCU3#200302-200601

main35121-48040iACU30200601-201008

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×4iACU3#200302-200407

main90250-10034×4iMCU3#200302-200601

main90250-10036×4iACU30200601-201008

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iACU3#; MCU3#200302-200601

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iACU3#; MCU3#200302-200601

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iACU3#,GSU3#200601

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-28080iACU30200302-200407

main35106-28090iACU30201008

main35106-33030iACU30200407-200601

main35106-33040iGSU3#200601-200812

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iACU3#; MCU3#200302-200601

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-06320×2iGSU3#200704

main90105-08066iACU30; ACU35201008

main90105-08233×7iACU30; ACU35; MCU3#200302-200601

main90105-08353×8iACU30; ACU35; MCU3#200302-200601

3514OIL COOLER & TUBE (ATM)

→ Go to FIG 35-14

35148GASKET, GOVERNOR APPLY, NO.1

main35145-21010×3iACU3#; MCU3#200302-200601

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-21010iACU3#; MCU3#200302-200601

35159GASKET, BRAKE DRUM

main35159-21010iACU3#; MCU3#200302-200601

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-21010iACU35; MCU3#200302-200601

main35168-21011iACU30201008

main35168-21020iACU30200601-201008

35179GASKET, OVERDRIVE BRAKE

main35179-32010×2iACU3#; MCU3#200302-200601

main90301-06008×2iACU30201002

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iACU3#,MCU3#200302-200601

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iACU3#; MCU3#200302-200403

main35394-48010×2iACU35; MCU3#200403-200601

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iACU30200302-200601

main35519-41010iGSU3#200601-200812

main35519-52010iACU35200601

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

9036425017

main90364-25017

9094901C99

main90949-01C99

91611B0625

main91611-B0625

91611G0612

main91611-G0612

9613251000

main96132-51000

35 parts on this diagram · 4 diagrams in section
