TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

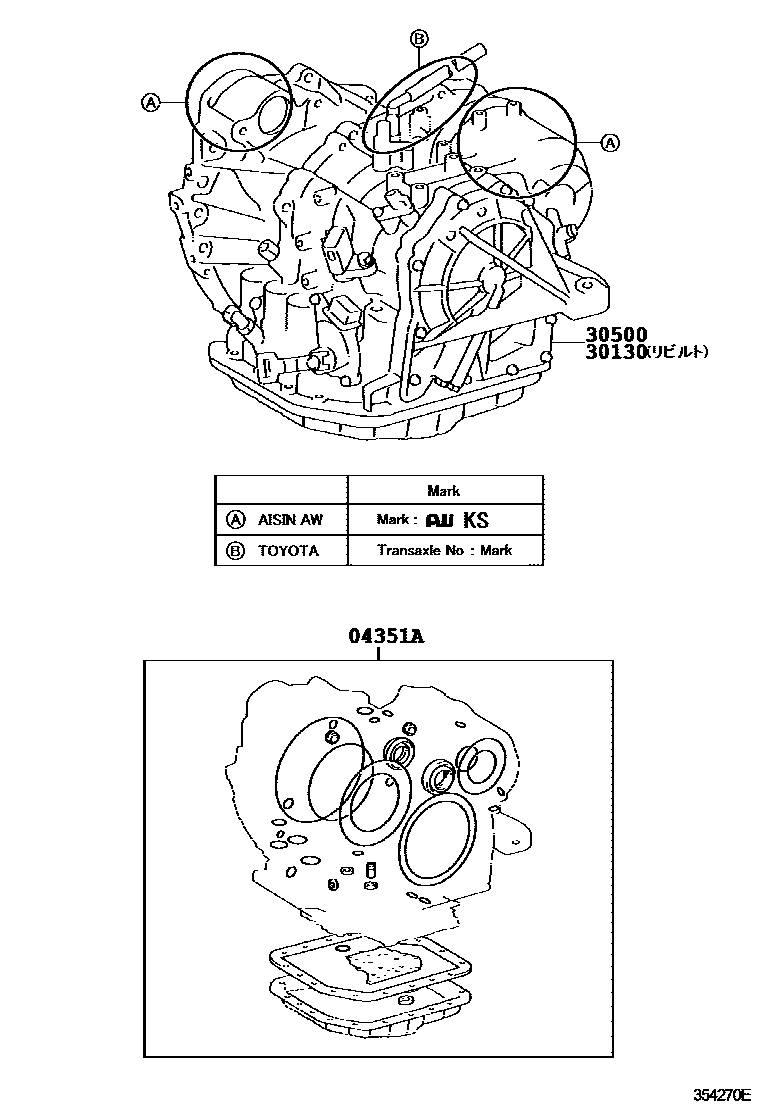

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-21150i200407-200509

main04351-21151i200509-200601

main04351-28110i200302-200407

main04351-33070i200302-200307

main04351-33110i200307-200407

main04351-42030i200302-200407

main04351-42051i201002-201008

main04351-42140i200901-201001

main04351-48010i200302-200307

main04351-48020i200307-200407

main04351-48040i200407-200511

main04351-48041i200511-200601

main04351-48050i200407-200511

main04351-48051i200511-200601

main04351-48060i200407-200601

main04351-48070i200601-200703

main04351-48071i200801-200905

main04351-48080i200601-201008

main04351-48090i200601-200812

main04351-48100i200601-200812

main04351-48150i200906-201002

main04351-48151i201002-201008

main04351-48190i201008

main04351-48200i201008

30130TRANSAXLE ASSY, REBUILT

main30130-48130i200302-200601

main30130-48150i200302-200601

main30130-48170i200302-200304

main30130-48171i200304-200601

main30130-48172i200705-201008

main30130-48180i200302-200304

main30130-48181i200304-200407

main30130-48182i200901-201008

main30130-48221i200407-200601

main30130-48230i200601-200704

main30130-48231i200705-200812

main30130-48240i200601-200704

main30130-48241i200705-200812

main30130-48490i201008

main30130-48500i201008

30500TRANSAXLE ASSY, AUTOMATIC

main30500-48130i200302-200601

main30500-48150i200302-200601

main30500-48170i200302-200304

main30500-48171i200601-200704

main30500-48172i200704-201008

main30500-48180i200302-200304

main30500-48181i200304-200407

main30500-48182i200601-200806

main30500-48220i200407-200601

main30500-48221i200612-201008

main30500-48230i200601-200704

main30500-48231i200704-200812

main30500-48240i200601-200704

main30500-48241i200704-200812

main30500-48490i201008

main30500-48500i201008

3 parts on this diagram · 3 diagrams in section
