IGNITION COIL & SPARK PLUG / GLOW PLUG

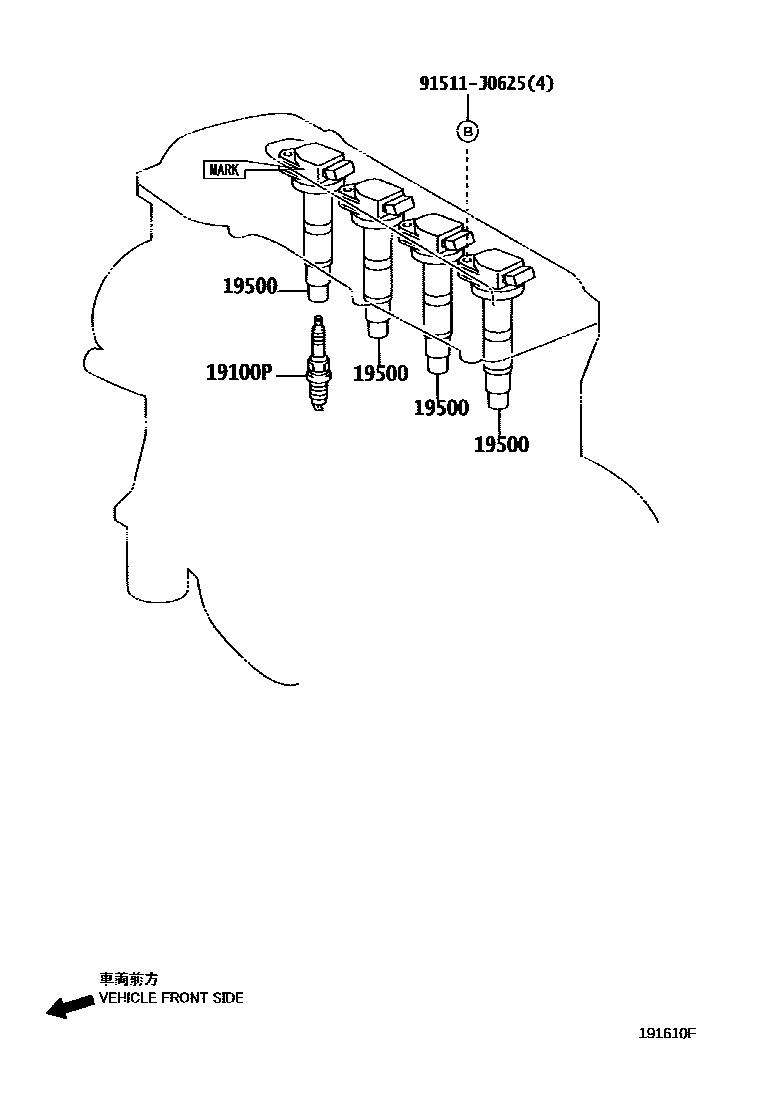

Parts diagram
19100PPLUG, SPARK
main90919-01184i200302-201009
main90919-01210i200302-200601
main90919-01211i200302-200601
main90919-01237i201009-201206
sub90919-01210
main90919-01240i201206-201207
main90919-01247i200601-200812
19500COIL ASSY, IGNITION
main90919-02234i200302
main90919-02243i200302-200308
sub90919-02244
main90919-02244i200302-201204
sub90919-02266
main90919-02244i200308-201009
sub90919-02266
main90919-02251i200601-200810
sub90919-02255
main90919-02255i200810-200812
sub90919-02256
main90919-02266i201009-201204
main90919-02266i201204-201207
91511J0625
main91511-J0625

3 parts on this diagram · 3 diagrams in section
