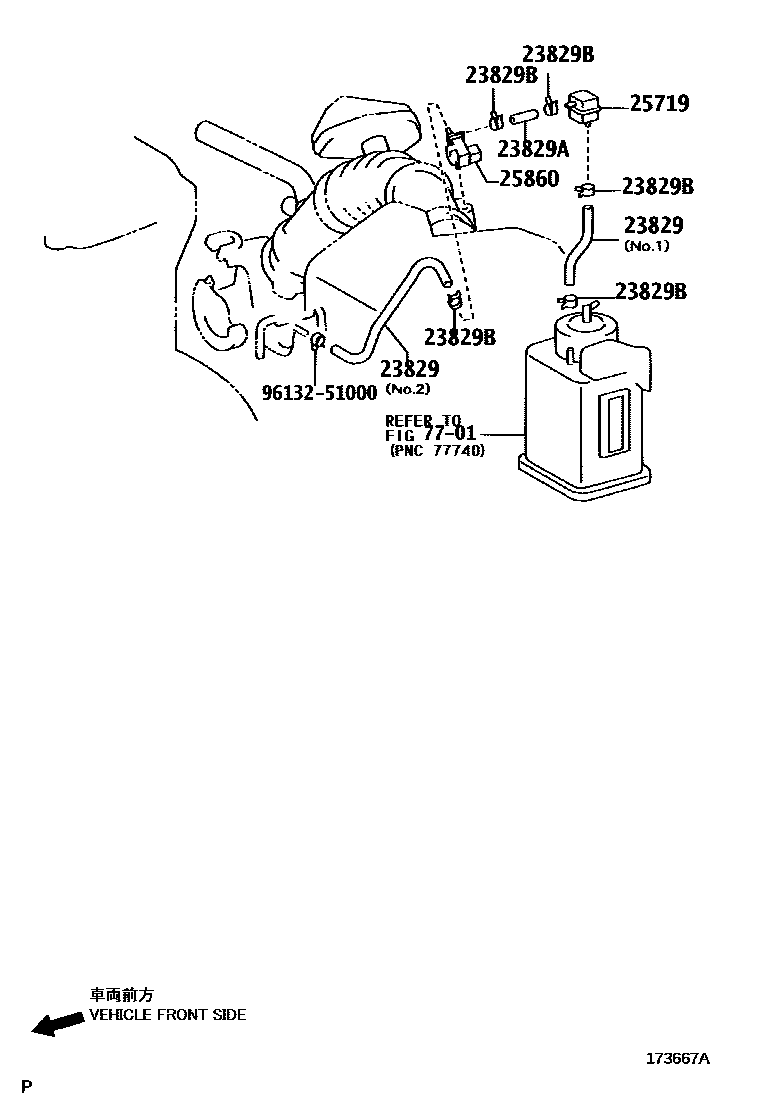

VACUUM PIPING

0001 1 0002 1 0003 1

23829HOSE, FUEL VAPOR FEED, NO.3

main23829-28080i2AZFE..ACU3#200302-200601

main23829-28090i2AZFE..ACU3#200302-200601

23829AHOSE, FUEL VAPOR FEED

main23829-20120i1MZFE..MCU3#200302

main23829-31020i2GRFE..GSU3#200601-200812

main95326-07004i2AZFE..ACU3#200302-200601

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-11003×5i2AZFE..ACU3#200302-200601

25719TANK, VACUUM SURGE

main25719-62040i2AZFE..ACU3#200302-200601

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-28050i2AZFE..ACU3#200302-200601

main25860-62010×2i1MZFE..MCU3#200302

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9613251000

main96132-51000

7 parts on this diagram · 3 diagrams in section
