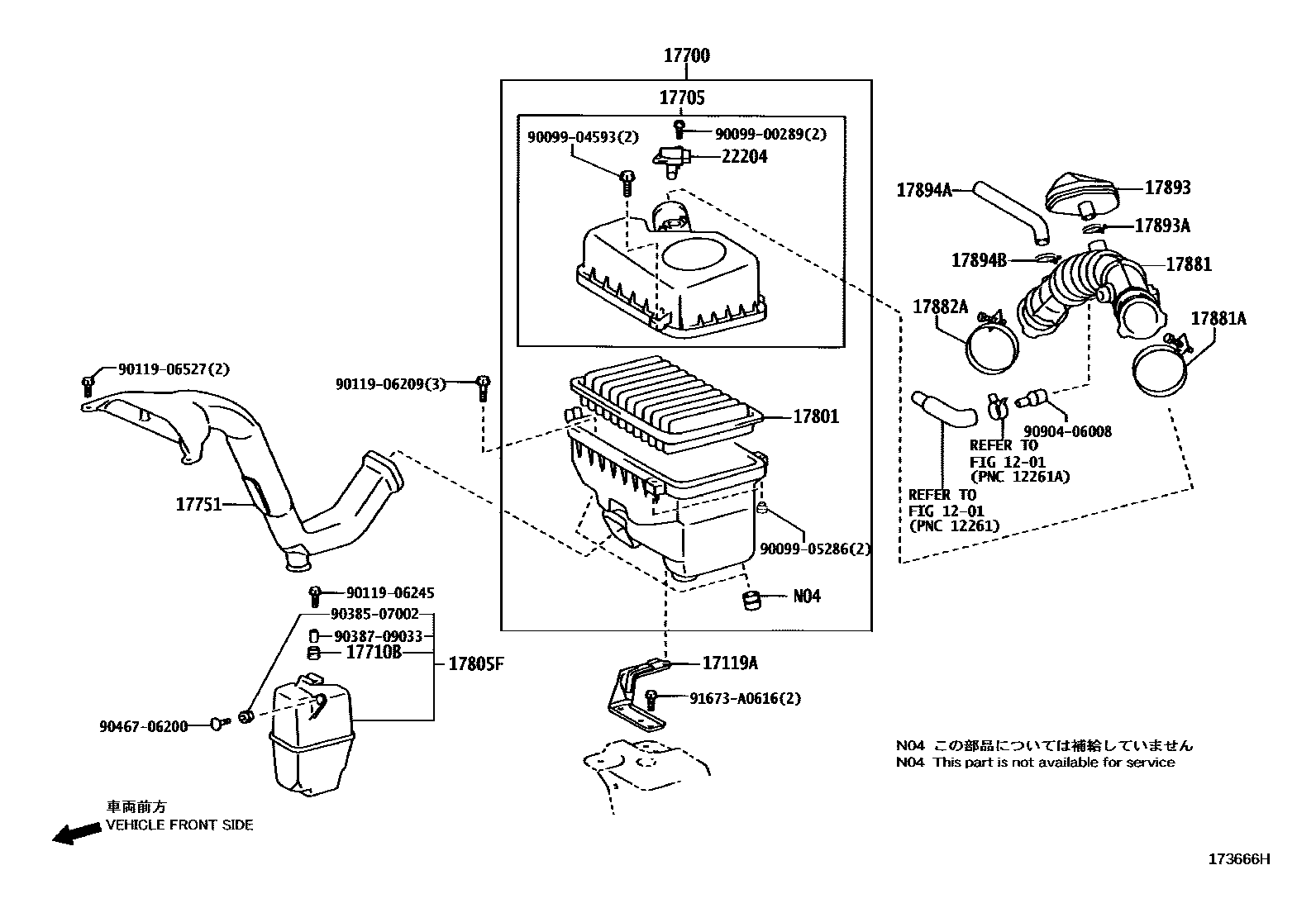

AIR CLEANER

0001 1 0002 1 0003 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17119ABRACKET, AIR CLEANER

main17119-28050i2GRFE..GSU3#200601-200812

17700CLEANER ASSY, AIR

main17700-20200i1MZFE..MCU3#200302

main17700-28210i2AZFE..ACU3#200601

main17700-31680i2GRFE..GSU3#200601-200701

main17700-31681i2GRFE..GSU3#200702-200812

17705CAP SUB-ASSY, AIR CLEANER

main17705-20170i1MZFE..MCU3#200302

main17705-28160i2AZFE..ACU3#200601

main17705-31220i2GRFE..GSU3#200601-200701

main17705-31221i2GRFE..GSU3#200702-200812

17710BGROMMET

main90480-17013i2AZFE..ACU3#200302-200601

17751INLET, AIR CLEANER, NO.1

main17751-20030i1MZFE..MCU3#200302

main17751-28030i2AZFE..ACU3#200302-200601

main17751-31170i2GRFE..GSU3#200601-200812

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0H020i1MZFE..MCU3#200302-200601

main17801-20040i2AZFE..ACU3#200601

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-20040i1MZFE..MCU3#200302

main17805-28010i2AZFE..ACU3#200302-200601

main17805-31020i2GRFE..GSU3#200601-200812

17881HOSE, AIR CLEANER, NO.1

main17881-20130i1MZFE..MCU3#200302

main17881-28170i2AZFE..ACU3#200302-200601

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10830i2AZFE..ACU3#200302-200601

main96111-10850×3i1MZFE..MCU3#200302

main96111-10880i1MZFE..MCU3#200302-200308

17882HOSE, AIR CLEANER, NO.2

main17882-20161i1MZFE..MCU3#200302

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10730i2AZFE..ACU3#200601

main96111-10850×4i1MZFE..MCU3#200302

17893RESONATOR, INTAKE AIR

main17893-20080i1MZFE..MCU3#200302

main17893-28040i2AZFE..ACU3#200302-200601

17893ACLAMP, HOSE

main96111-10430i2AZFE..ACU3#200302-200601

17894ARESONATOR, INTAKE AIR, NO.2

main17894-28020i2AZFE..ACU3#200302-200601

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10480i2AZFE..ACU3#200302-200601

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-21010i2AZFE..ACU3#200302-200601

main22204-22010i1MZFE..MCU3#200302

main22204-31010i2GRFE..GSU3#200601-200701

main22204-31020i2GRFE..GSU3#200702-200812

9009900289

main90099-00289

9009904593

main90099-04593

9009905286

main90099-05286

9011906209

main90119-06209

9011906245

main90119-06245

9011906527

main90119-06527

9038507002

main90385-07002

9038709033

main90387-09033

9046706200

main90467-06200

9090406008

main90904-06008

91673A0616

main91673-A0616

28 parts on this diagram · 3 diagrams in section
