V-BELT

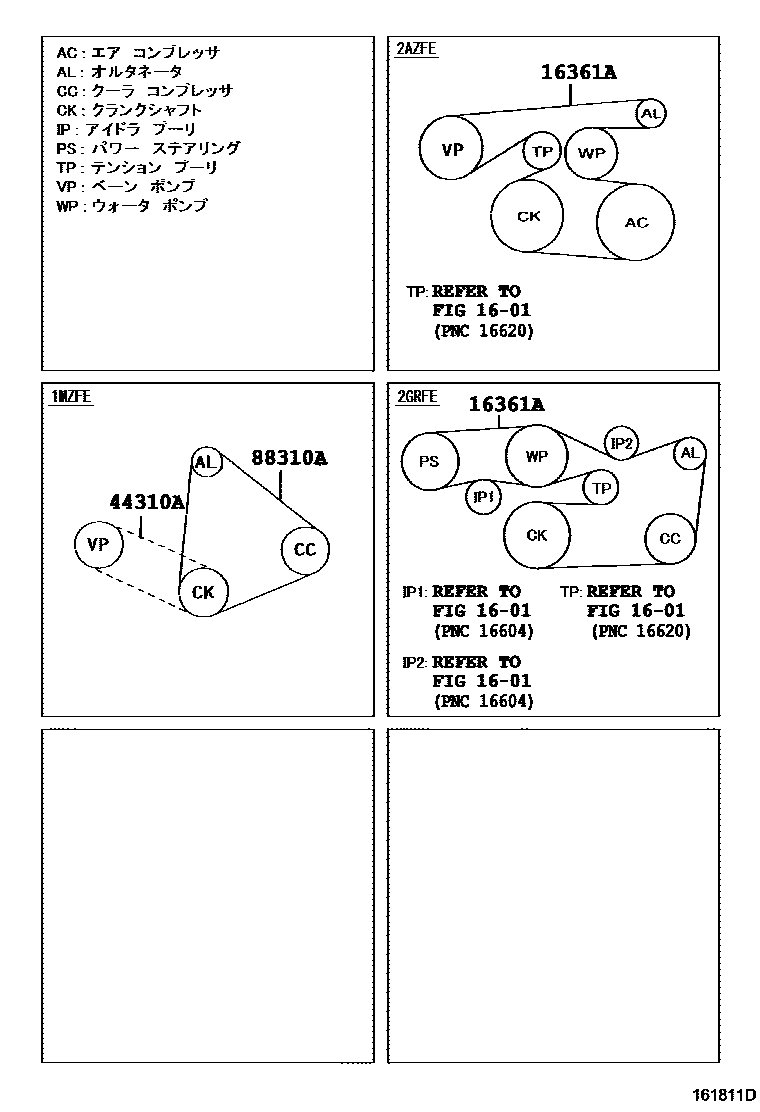

Parts diagram

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02553i200302-200601

main99367-C2090i200601-200812

44310ABELT, V(FOR VANE PUMP)

main90080-91212i200302-200601

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90080-91239i200302-200601

4 parts on this diagram · 1 diagram in section
