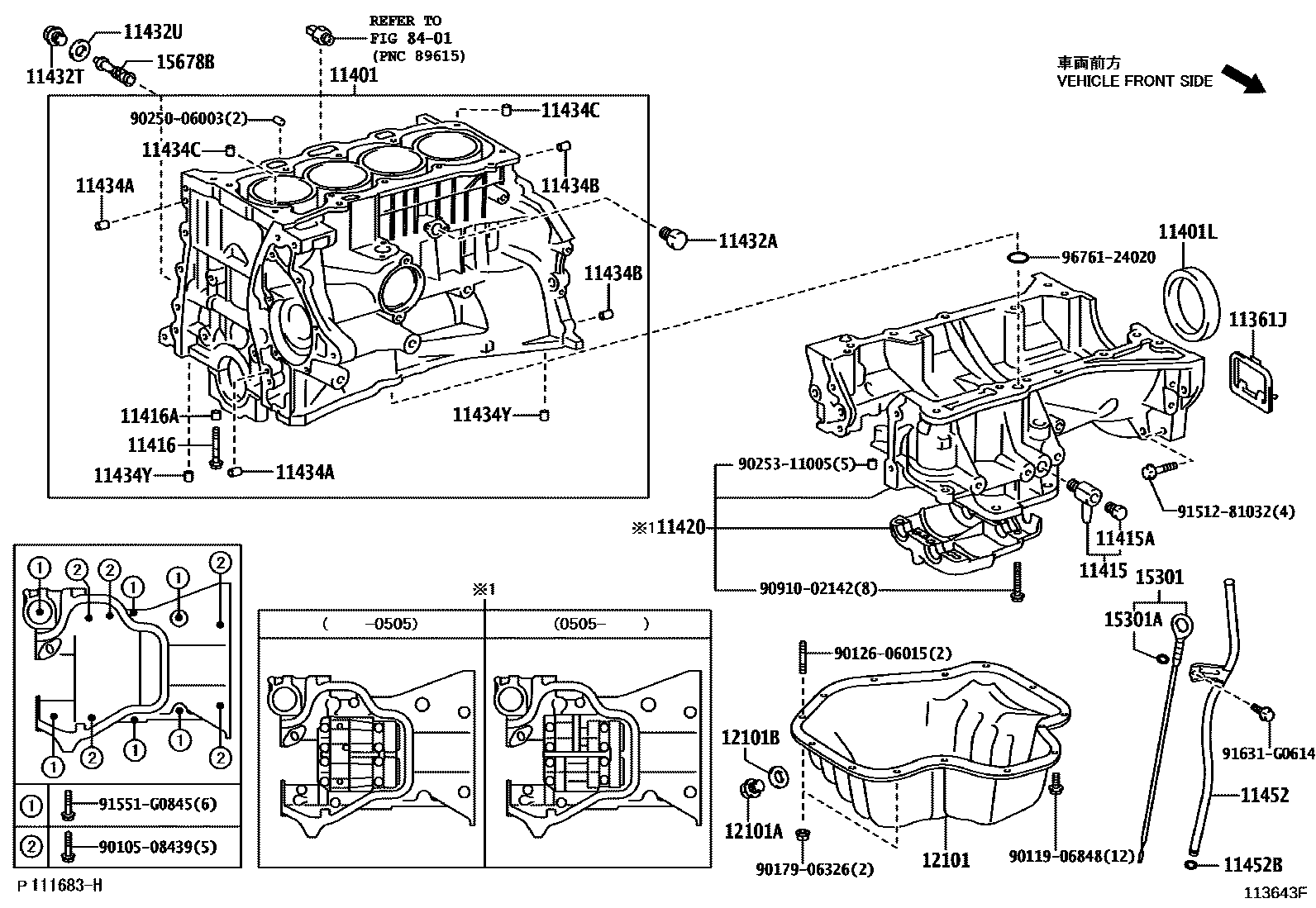

CYLINDER BLOCK

0001 1 0002 1 0003 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-20011i1MZFE..MCU3#200302

main11361-28010i2AZFE..ACU3#200302-200601

main11361-31060i2GRFE..GSU3#200601-200812

11401BLOCK SUB-ASSY, CYLINDER

main11401-29556i1MZFE..MCU30,31200302-200312

main11401-29566i1MZFE..MCU35,36200312

main11401-80718i2GRFE..GSU3#200601-200804

main11401-80774i2GRFE..GSU3#200805-200812

main11410-29105i2AZFE..ACU3#200302-200312

main11410-29185i2AZFE..ACU3#200312-200510

main11410-29325i2AZFE..ACU3#200601-200608

main11410-29326i2AZFE..ACU3#200608

11401LSEAL, ENGINE REAR OIL

main90311-89003i2AZFE..ACU3#200302-200601

main90311-89007i2AZFE..ACU3#201204-201207

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09095i1MZFE..MCU30,31; 1MZFE..MCU35,36200302

main90910-09120i2AZFE..ACU3#200302-200601

main90910-09129×2i2GRFE..GSU3#200601-200812

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1MZFE..MCU30,31; 1MZFE..MCU35,36200302

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02114×16i1MZFE..MCU3#200302

main90910-02124×10i2AZFE..ACU3#200302-200601

main90910-02154×8i2GRFE..GSU3#200601-200812

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017×10i2AZFE..ACU3#200302-200601

11420CRANKCASE ASSY, STIFFENING

main11420-28011i2AZFE..ACU3#200302-200505

main11420-28031i2AZFE..ACU3#200508-200601

main11420-28032i2AZFE..ACU3#201010

main11420-28040i2AZFE..ACU3#200505-200508

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-52001i2AZFE..ACU3#200601-201207

11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)

main90341-14013i2AZFE..ACU3#200302-200601

main90341-20013i1MZFE..MCU3#200302

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

main90430-14009i2AZFE..ACU3#200302-200304

main90430-14011i2AZFE..ACU3#200304-200601

main90430-16009i1MZFE..MCU3#200302

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097×2i2GRFE..GSU3#200601-200812

main90250-08120×2i2AZFE..ACU3#200601

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i2AZFE..ACU3#200302-200601

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-04097×6i1MZFE..MCU3#200302

main90250-08120×4i2GRFE..GSU3#200601-200812

main90253-14003×2i2AZFE..ACU3#200302-200601

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-04097×12i1MZFE..MCU3#200302

main90250-08074×2i2AZFE..ACU3#200601

11452GUIDE, OIL LEVEL GAGE

main11452-20020i1MZFE..MCU3#200302

main11452-28011i2AZFE..ACU3#200302-200510

main11452-28040i2AZFE..ACU3#200510-200601

main11452-31060i2GRFE..GSU3#200601-200812

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i2GRFE..GSU3#200601-200812

main96721-19010i2AZFE..ACU3#200302-200601

12101PAN SUB-ASSY, OIL

main12101-28030i2AZFE..ACU3#200302-200601

main12101-31121i2GRFE..GSU3#200601-200812

main12111-20060i1MZFE..MCU3#200302

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2AZFE..ACU3#200302-200601

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2AZFE..ACU3#200302-200601

15301GAGE SUB-ASSY, OIL LEVEL

main15301-20021i1MZFE..MCU3#200302

main15301-28020i2AZFE..ACU3#200510-200601

main15301-28050i2AZFE..ACU3#200302-200304

main15301-28051i2AZFE..ACU3#200304-200510

main15301-31090i2GRFE..GSU3#200601-200812

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2AZFE..ACU3#200302-200304

15678BFILTER, OIL CONTROL VALVE

main15678-28010i2AZFE..ACU3#200302-200601

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508439

main90105-08439

9011906848

main90119-06848

9012606015

main90126-06015

9017906326

main90179-06326

9025006003

main90250-06003

9025311005

main90253-11005

9091002142

main90910-02142

9151281032

main91512-81032

91551G0845

main91551-G0845

91631G0614

main91631-G0614

9676124020

main96761-24020

35 parts on this diagram · 3 diagrams in section
