ENGINE OVERHAUL GASKET KIT

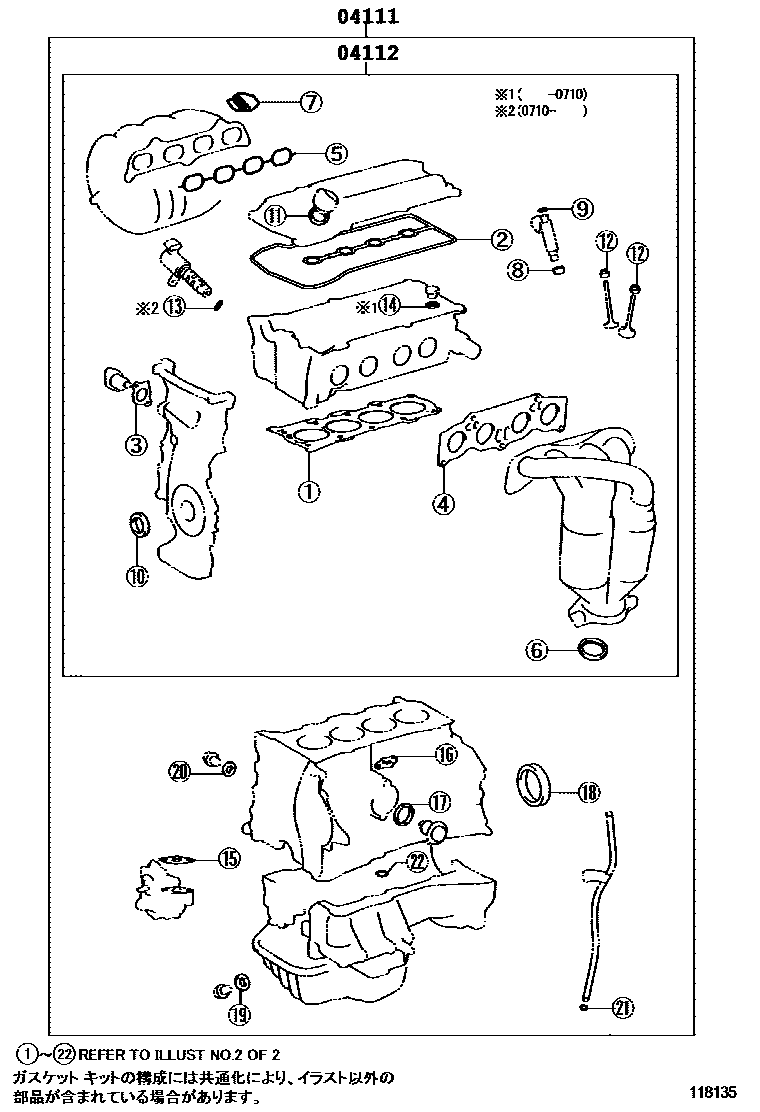

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-20351i200408-200601

main04111-20470i200302-200408

main04111-28103i200302-200304

main04111-28104i200304-200312

main04111-28196i201204-201207

main04111-28510i200312-200508

main04111-28511i200508-200511

main04111-28512i200511-200601

main04111-28750i200601-200710

main04111-28930i200710-200904

main04111-28931i200904-201204

main04111-31440i200601-200805

main04111-31441i200805-200811

main04111-31442i200811-200812

04112GASKET KIT, ENGINE VALVE GRIND

main04112-20331i200408-200601

main04112-20410i200302-200408

main04112-28056i200312-200508

main04112-28057i200508-200511

main04112-28058i200511-200601

main04112-28103i200302-200304

main04112-28104i200304-200312

main04112-28193i200710-200904

main04112-28194i200904-201204

main04112-28195i201204-201207

main04112-28620i200601-200710

main04112-31270i200601-200805

main04112-31271i200805-200811

main04112-31272i200811-200812

2 parts on this diagram · 6 diagrams in section
