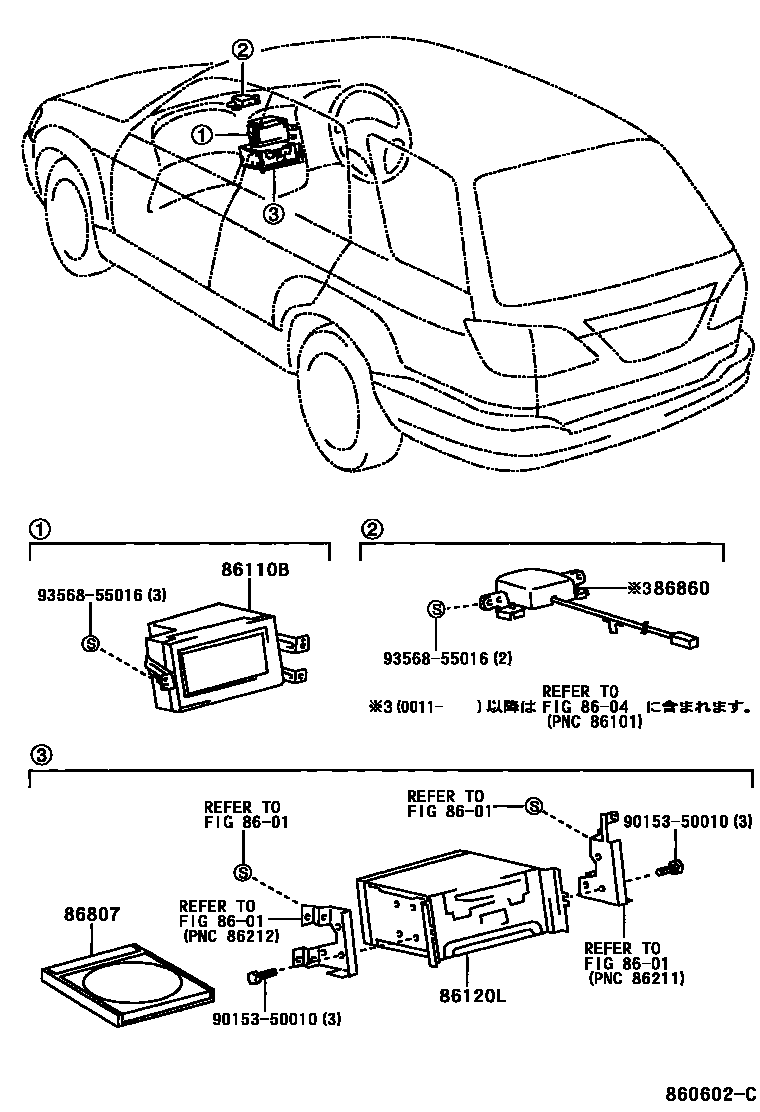

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

8604ANTENNA

→ Go to FIG 86-04

86110BMULTI-DISPLAY ASSY

main86110-48010iMCU1#,SXU1#199712-200011

main86110-48020iACU1#,MCU1#,SXU1#199712

86120LRECEIVER ASSY, NAVIGATION

main86120-48030iMCU1#,SXU1#199712-200011

main86120-48040iMCU1#,SXU1#199712-200011

86807DISC KIT, CD-ROM

main86807-44011iMCU1#,SXU1#199712-200011

86860ANTENNA ASSY, NAVIGATION

main86860-48010iMCU1#,SXU1#199712-200011

9015350010

main90153-50010

9356855016

main93568-55016

8 parts on this diagram · 2 diagrams in section
