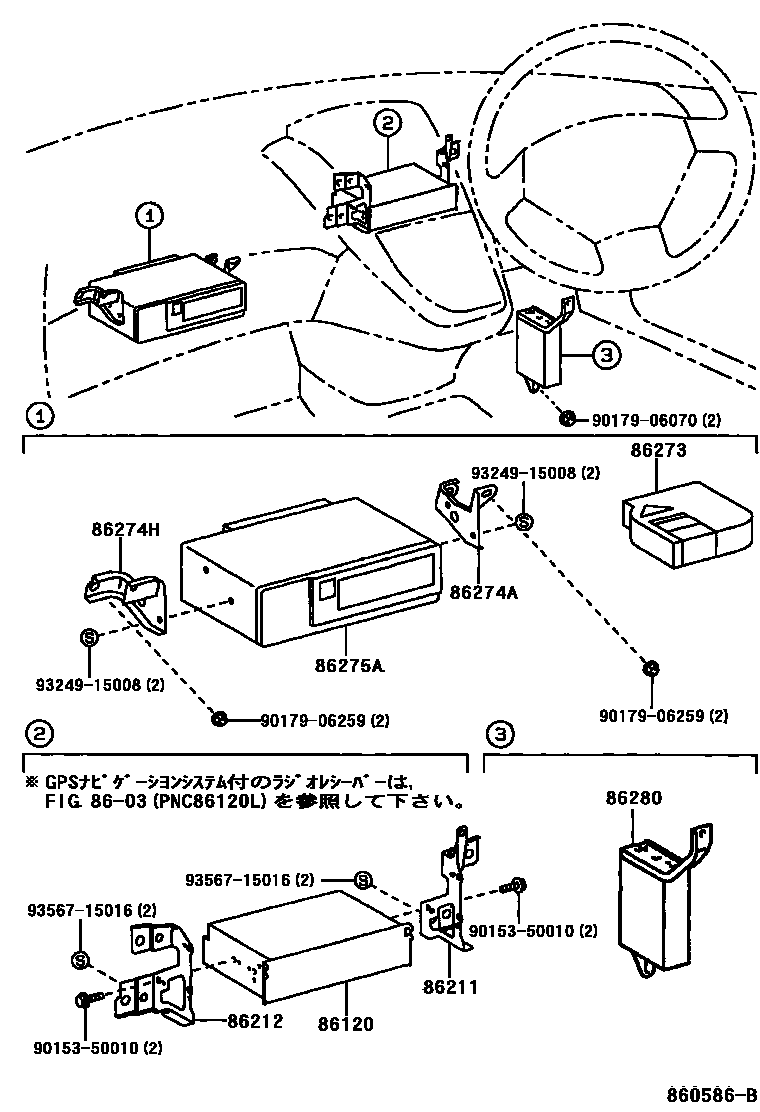

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1������

86120RECEIVER ASSY, RADIO

main86120-48010iACU1#,MCU1#,SXU1#199712-200302

main86120-48020iACU1#,MCU1#,SXU1#199712-200302

main86120-48070iACU1#,MCU1#200011-200302

main86120-48080iACU1#,MCU1#200011-200302

86211BRACKET, RADIO, NO.1

main86211-48010iACU1#,MCU1#,SXU1#199712

main86211-48020iACU1#,MCU1#200011

86212BRACKET, RADIO, NO.2

main86212-48010iACU1#,MCU1#,SXU1#199712

main86212-48020iACU1#,MCU1#200011

86273MAGAZINE, DISC PLAYER

main86273-48010iACU1#,MCU1#,SXU1#199712

86274ABRACKET, DISC PLAYER

main86274-48010iACU1#,MCU1#,SXU1#199712

86274HBRACKET, DISC PLAYER

main86274-48020iACU1#,MCU1#,SXU1#199712

86275ACHANGER, DISC PLAYER

main86275-48010iMCU1#,SXU1#199712-200011

main86275-48040iACU1#,MCU1#200011

86280AMPLIFIER ASSY, STEREO COMPONENT

main86100-0W010iMCU1#,SXU1#199712-199812

main86100-0W011iMCU1#,SXU1#199812-199901

main86100-0W012iACU1#,MCU1#,SXU1#199901

9015350010

main90153-50010

9017906070

main90179-06070

9017906259

main90179-06259

9324915008

main93249-15008

9356715016

main93567-15016

13 parts on this diagram · 2 diagrams in section
