SEAT MOTOR & SEAT HEATER

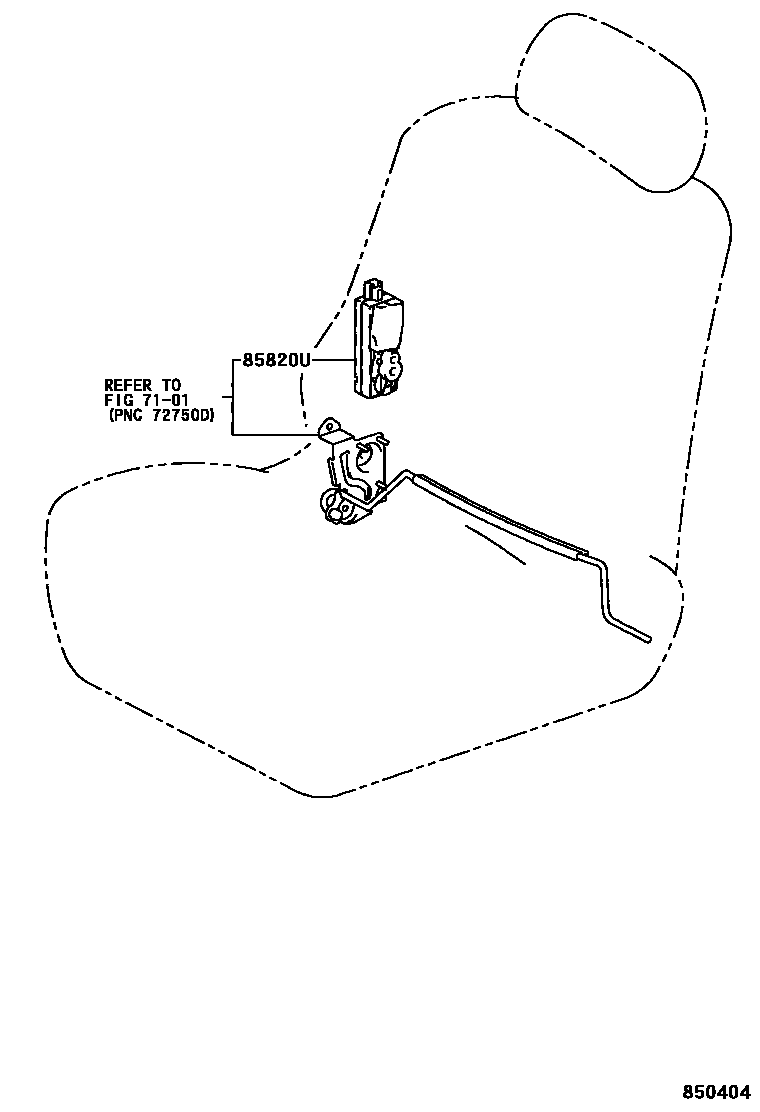

Parts diagram
7101FRONT SEAT & SEAT TRACK
→ Go to FIG 71-01
85820UMOTOR ASSY, POWER SEAT(FOR LUMBAR SUPPORT)
main85820-30700i199712

2 parts on this diagram · 1 diagram in section
