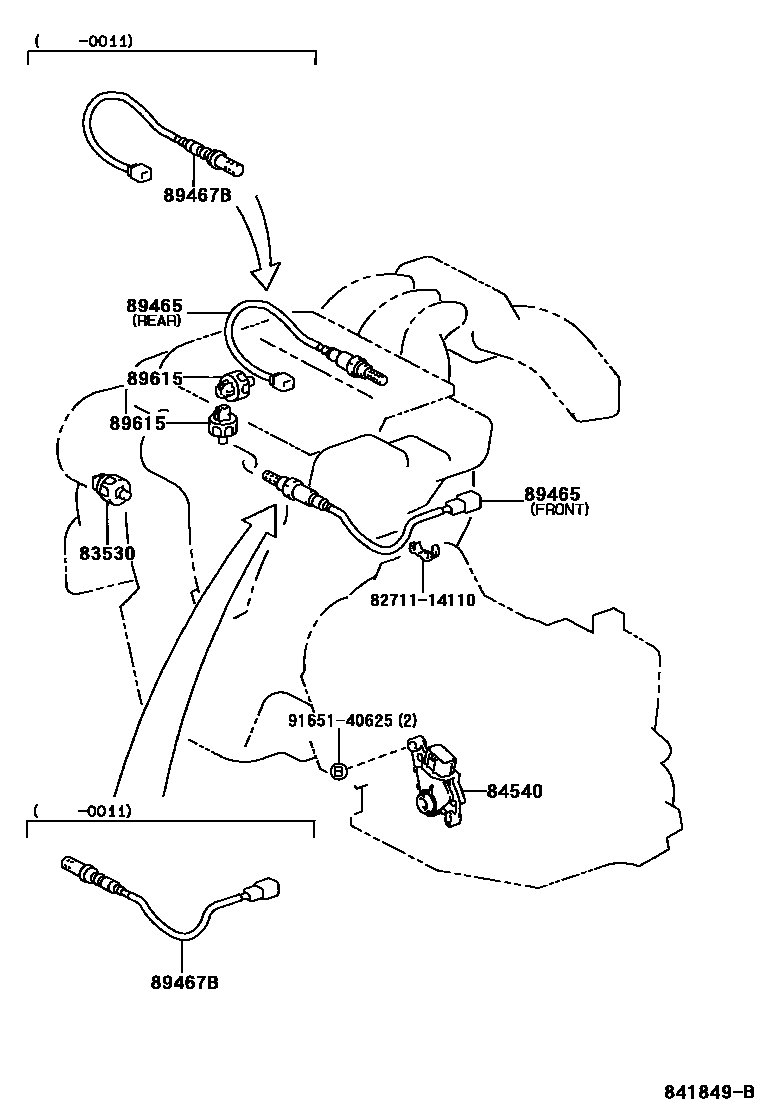

SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� & ��������� 0004 1����� �-� 0005 1��� 0006 1��� 0007 1������������ 0008 1�������� & �����-��� ���� 0009 1�������� & �����-��� ���� 0010 1���,�-�,��� & �������

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iACU1#,MCU1#200205

main83530-28020iACU1#,MCU1#,SXU1#199802

main83530-30090iMCU1#,SXU1#199712-199802

sub83530-60020

main83530-60020iACU1#,MCU1#,SXU1#199802

84540SWITCH ASSY, NEUTRAL START

main84540-12200iMCU1#,SXU1#199712-200011

main84540-12210iMCU1#,SXU1#199712-200011

main84540-12230iACU1#200011-200202

sub84540-32110

main84540-32110iACU1#,MCU1#200011-200202

89465SENSOR, OXYGEN

main89465-41060iMCU1#200011

main89465-48020iACU1#200011

main89465-48030iACU1#200011

main89465-48050iMCU1#200011

main89465-49075iMCU1#199712-200011

main89465-80007iSXU1#199712-200011

89467BSENSOR, AIR FUEL RATIO

main89467-48110iMCU1#199712-200011

89615SENSOR, KNOCK CONTROL

main89615-12040iMCU1#199712-199908

main89615-12090iMCU1#199908

main89615-20030iSXU1#199712-199910

sub89615-32040

main89615-30080iACU1#200011

main89615-32030iACU1#,SXU1#199910

main89615-32040iSXU1#199910-200011

sub89615-32030

main89615-33020iSXU1#199712-199910

sub89615-32030

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9165140625

main91651-40625

7 parts on this diagram · 10 diagrams in section
