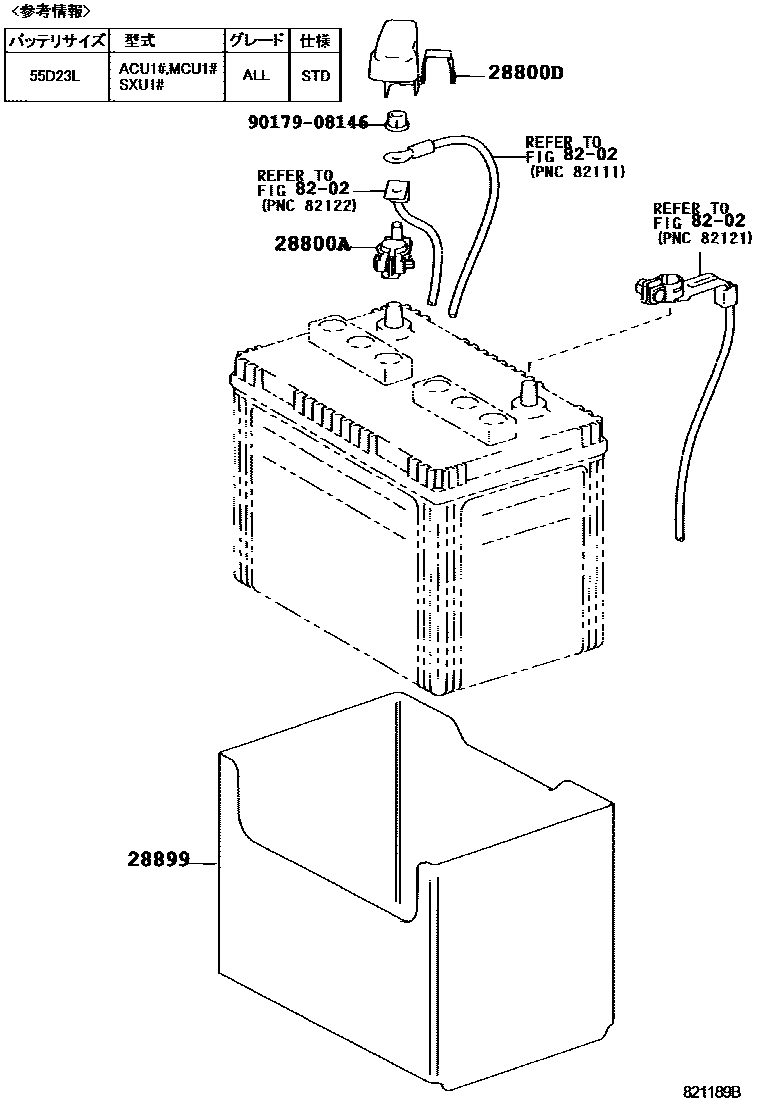

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i1MZFE,5SFE..MCU1#,SXU1#199712-199912

main90982-05058i2AZFE,1MZFE,5SFE..ACU1#,MCU1#,SXU1#199912

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-20350i2AZFE,1MZFE,5SFE..ACU1#,MCU1#,SXU1#199712

28899INSULATOR, BATTERY

main28899-46060i1MZFE..MCU1#199712-200011

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908146

main90179-08146

5 parts on this diagram · 1 diagram in section
