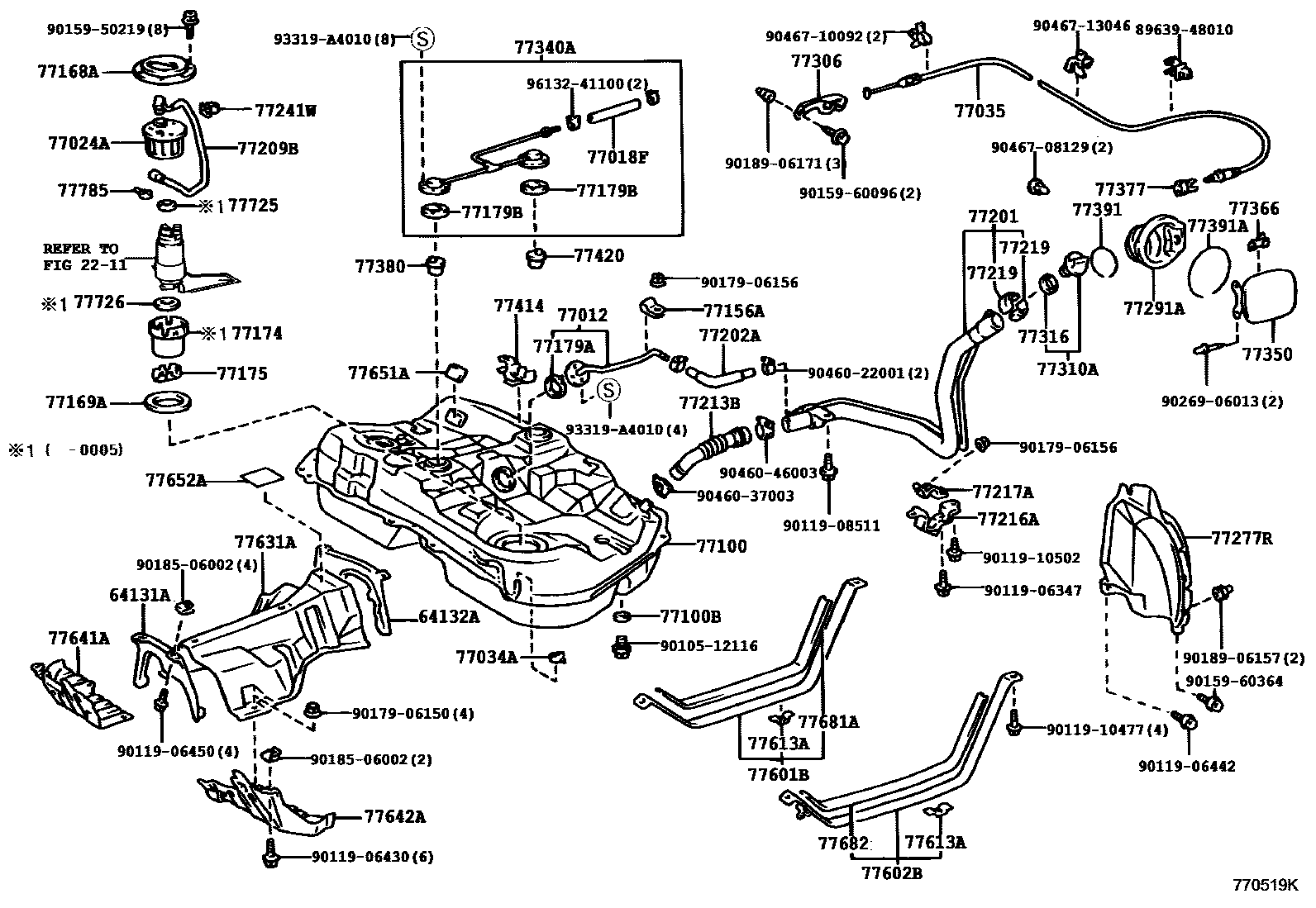

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

2211

64131ABRACKET, FUEL TANK PROTECTOR, UPPER NO.1

main64131-33010iMCU1#,SXU1#199712-200011

main64131-48010iACU1#,MCU1#200011

64132ABRACKET, FUEL TANK PROTECTOR, UPPER NO.2

main64132-33010iMCU1#,SXU1#199712-200011

main64132-48010iACU1#,MCU1#200011

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-48010iACU1#,MCU1#,SXU1#199712

main77012-48020iACU1#,MCU1#,SXU1#199712

77018FHOSE, FUEL TANK EVAPORATION VENT

main95333-06020iACU1#,MCU1#,SXU1#199712

sub95337-06020

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-30070iACU1#,MCU1#200011

main77024-33020iMCU1#,SXU1#199712-200011

77034ACRIP (FOR FUEL TANK FILLER PIPE)

main90467-13061iMCU1#,SXU1#199712-200011

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-48010iACU1#,MCU1#,SXU1#199712

77100TANK ASSY, FUEL

main77001-48010iMCU1#,SXU1#199712-200011

sub77001-48030

main77001-48030iMCU1#,SXU1#199801-200011

main77001-48040iACU1#,MCU1#200011

main77001-48050iACU1#,MCU1#200011

sub77001-48040

77100BGASKET(FOR FUEL TANK)

main90430-12245iACU1#,MCU1#,SXU1#199712

77156APLATE, BREATHER TUBE SUPPORT, NO.2

main77156-33010iACU1#,MCU1#,SXU1#199712

77168APLATE, FUEL TANK VENT TUBE SET

main77168-33040iACU1#,MCU1#,SXU1#199712

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iACU1#,MCU1#,SXU1#199712

77174SUPPORT, FUEL SUCTION, NO.1

main77174-33010iMCU1#,SXU1#199712-200005

77175SUPPORT, FUEL SUCTION, NO.2

main77175-30050iACU1#,MCU1#,SXU1#200005

main77175-33010iMCU1#,SXU1#199712-200005

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iACU1#,MCU1#,SXU1#199712

77179BGASKET, FUEL TANK EVAPORATION VENT TUBE

main77179-26010iACU1#,MCU1#,SXU1#199712

sub77179-26011

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-48020iMCU1#,SXU1#199712-200011

main77201-48080iACU1#,MCU1#200011-200208

sub77201-48090

main77201-48090iACU1#,MCU1#200011-200208

main77201-48090iACU1#,MCU1#200208

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main77019-33040iACU1#,MCU1#,SXU1#199712

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-48010iMCU1#,SXU1#199712-200011

sub77209-48011

main77209-48011iACU1#,MCU1#200011

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-48020iMCU1#,SXU1#199712-200011

main77213-48040iACU1#,MCU1#200011

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77104-32010iACU1#,MCU1#,SXU1#199712

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-32040iACU1#,MCU1#,SXU1#199712

77219COVER, FUEL TANK FILLER PIPE

main77219-32030iACU1#,MCU1#,SXU1#199712

77241WCLIP, TUBE JOINT

main77241-33011iACU1#,MCU1#,SXU1#199712

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-48010iACU1#,MCU1#,SXU1#199712-200302

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-48010iACU1#,MCU1#,SXU1#199712-200302

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-48010iACU1#,MCU1#,SXU1#199712

77310ACAP ASSY, FUEL TANK

main77310-48010iACU1#,MCU1#,SXU1#199712

77316GASKET, FUEL TANK CAP

main77316-16010iACU1#,MCU1#,SXU1#199712

77340AVALVE ASSY, FUEL CUT OFF W/TUBE

main77340-48010iACU1#,MCU1#,SXU1#199712

77350LID ASSY, FUEL FILLER OPENING

main77350-48010iMCU1#,SXU1#199712-200006

sub77350-48011

main77350-48011iACU1#,MCU1#,SXU1#200006

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30080iACU1#,MCU1#200011

main77360-48010iMCU1#,SXU1#199712-200011

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iACU1#,MCU1#,SXU1#199712

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iACU1#,MCU1#,SXU1#199712

77391RING, FUEL INLET BOX

main77391-12020iACU1#,MCU1#,SXU1#199712-200302

77391ARING, FUEL INLET BOX

main77391-33010iACU1#,MCU1#,SXU1#199712-200302

77414SUPPORT, FUEL TUBE GROMMET, NO.4

main77414-48010iACU1#,MCU1#,SXU1#199712

77420VALVE ASSY, FUEL CUT OFF, NO.2

main77420-26010iACU1#,MCU1#,SXU1#199712

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-48010iMCU1#,SXU1#199712-200011

main77601-48020iACU1#,MCU1#200011

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-48010iMCU1#,SXU1#199712-200011

main77602-48021iACU1#,MCU1#200011

77613ABRACKET, FUEL TANK BAND, NO.1

main77613-16030iACU1#,MCU1#,SXU1#199712

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77606-48020iACU1#,MCU1#200011

main77631-33030iMCU1#,SXU1#199712-200011

77641APROTECTOR, FUEL TANK, NO.1

main77641-48010iMCU1#,SXU1#199712-200011

main77641-48020iACU1#,MCU1#200011

77642APROTECTOR, FUEL TANK, NO.2

main77642-48010iMCU1#,SXU1#199712-200011

main77642-48020iACU1#,MCU1#200011

77651ACUSHION, FUEL TANK, NO.1

main77651-20090iACU1#,MCU1#,SXU1#199712

77652ACUSHION, FUEL TANK, NO.2

main77652-48010iMCU1#,SXU1#199712-200011

77681ASEAT, FUEL TANK BAND

main77681-32060iMCU1#,SXU1#199712-200011

main77682-16010iACU1#,MCU1#200011

77682SEAT, FUEL TANK BAND, LH

main77682-16010iACU1#,MCU1#,SXU1#199712

77725CUSHION, FUEL FILTER, NO.1

main77725-33010iMCU1#,SXU1#199712-200005

77726CUSHION, FUEL FILTER, NO.2

main77726-33010iMCU1#,SXU1#199712-200005

77785HARNESS, FUEL PUMP

main77785-33010iMCU1#,SXU1#199712-200005

main77785-52020iACU1#,MCU1#,SXU1#200005

8963948010WIRE, BRAKE CONTROL

main89639-48010

9010512116

main90105-12116

9011906347

main90119-06347

9011906430

main90119-06430

9011906442

main90119-06442

9011906450

main90119-06450

9011908511

main90119-08511

9011910477

main90119-10477

9011910502

main90119-10502

9015950219

main90159-50219

9015960096

main90159-60096

9015960364

main90159-60364

9017906150

main90179-06150

9017906156

main90179-06156

9018506002

main90185-06002

9018906157

main90189-06157

9018906171

main90189-06171

9026906013

main90269-06013

9046022001

main90460-22001

9046037003

main90460-37003

9046046003

main90460-46003

9046708129

main90467-08129

9046710092

main90467-10092

9046713046

main90467-13046

93319A4010

main93319-A4010

9613241100

main96132-41100

78 parts on this diagram · 5 diagrams in section
