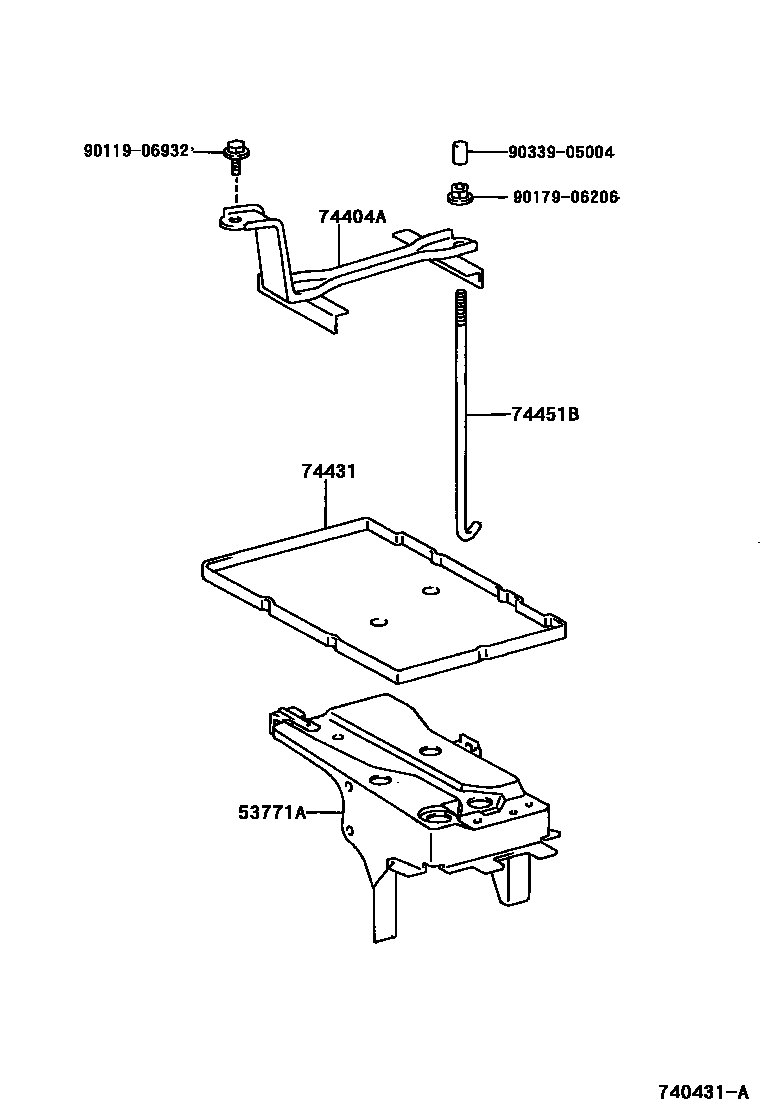

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53704-48010iACU1#,MCU1#,SXU1#199712

74404ACLAMP SUB-ASSY, BATTERY

main74404-48010iACU1#,MCU1#,SXU1#199712

74431TRAY, BATTERY

main74431-33011iACU1#,MCU1#,SXU1#199712

74451BBOLT, BATTERY CLAMP

main74452-33010iACU1#,MCU1#,SXU1#199712

9011906932

main90119-06932

9017906206

main90179-06206

9033905004

main90339-05004

7 parts on this diagram · 1 diagram in section
